Approvals per | UL 486C |
Rated voltage UL (Use Group C) | 600 V |
Rated current UL (Use Group C) | 30 A |
Ratings per | EN 60664 |
Nominal voltage (II/2) | 450 V |
Rated surge voltage (II/2) | 4 kV |
Rated current | 41 A |
Legend (ratings) | (II / 2) ≙ Overvoltage category II / Pollution degree 2 |
Total number of connection points | 5 |
Total number of potentials | 1 |
Connection technology | CAGE CLAMP® |

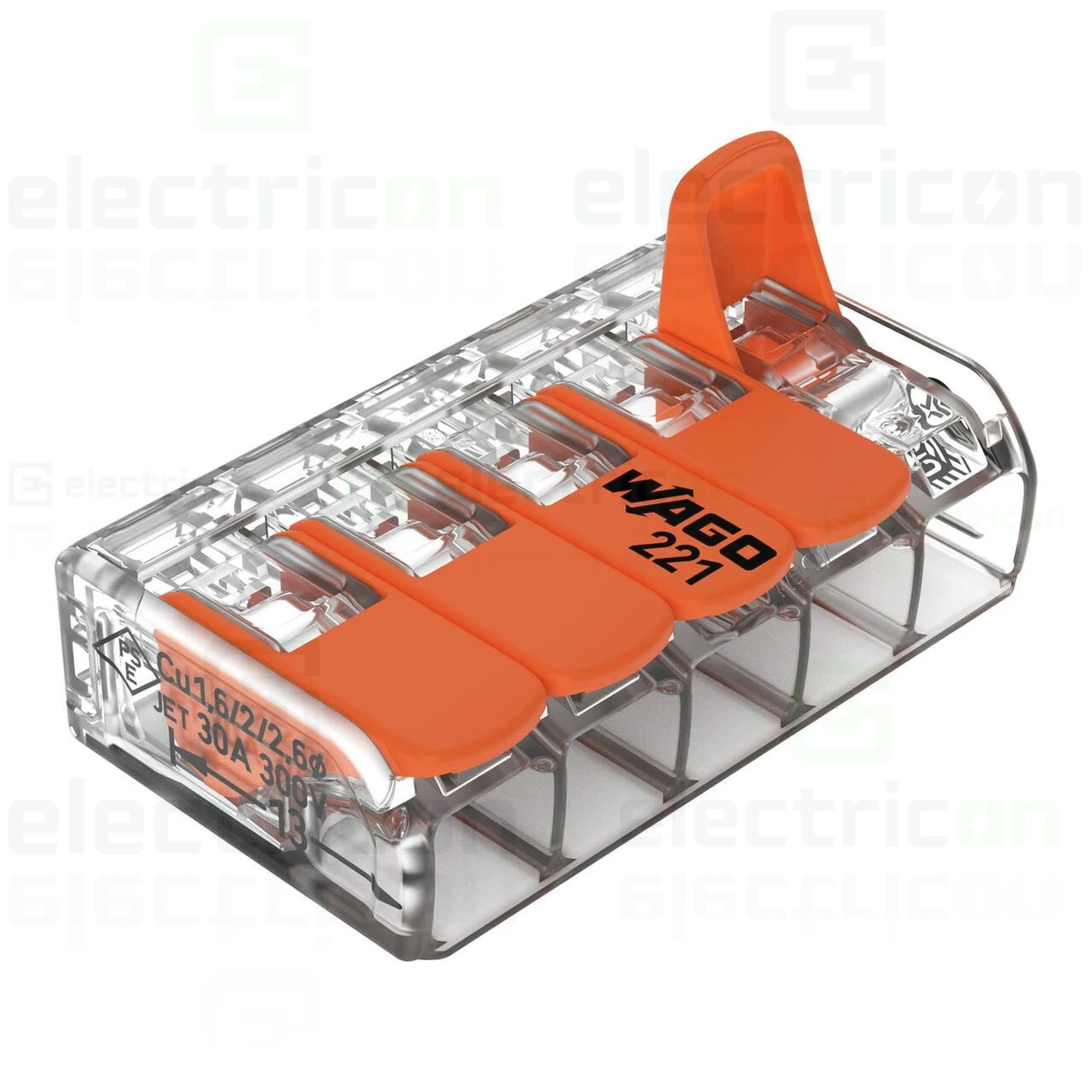

Actuation type | Lever |
Connectable conductor materials | Copper |
Nominal cross-section | 6 mm² |
Solid conductor | 0,5 … 6 mm² / 20 … 10 AWG |
Stranded conductor | 0,5 … 6 mm² / 20 … 10 AWG |
Fine-stranded conductor | 0,5 … 6 mm² / 20 … 10 AWG |
Strip length | 12 … 14 mm / 0.47 … 0.55 inch |
Wiring direction | Side-entry wiring |
Color | transparent |
Flammability class per UL94 | V2 |
Fire load | 0,103 MJ |
Color of actuator | orange |
Weight | 7,1 g |
Surrounding air temperature (operation) | 85 °C |
Continuous operating temperature | 105 °C |
Temperature marking per EN 60998 | T85 |
PU (SPU) | 150 (15) Stück |
Packaging type | box |
Country of origin | CH |
GTIN | 4055143715478 |
Customs tariff number | 85369010000 |
