Ratings per | IEC/EN 60664-1 |
Nominal voltage (II/2) | 400 V |
Rated surge voltage (II/2) | 4 kV |
Rated current | 41 A |
Legend (ratings) | (II / 2) ≙ Overvoltage category II / Pollution degree 2 |
Connection technology | PUSH WIRE® |
Actuation type | Push-in |
Connectable conductor materials | Copper Aluminum |
Solid conductor | 2,5 … 6 mm² / 14 … 10 AWG |
Stranded conductor | 2,5 … 6 mm² / 14 … 10 AWG |
Strip length | 12 … 13 mm / 0.47 … 0.51 inch |
Total number of connection points | 3 |
Total number of potentials | 1 |
Wiring type | Side-entry wiring |

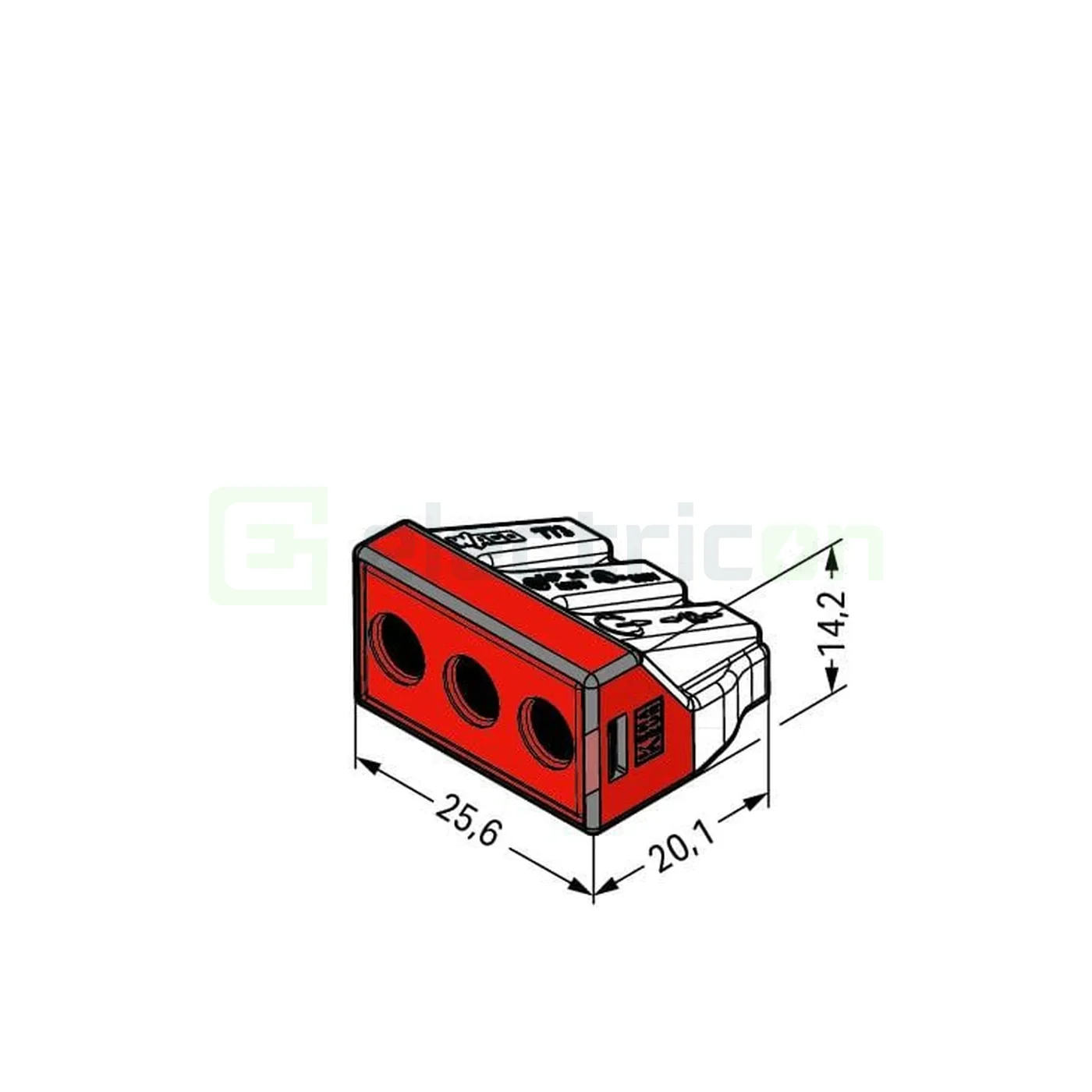

Width | 25,6 mm / 1.008 inch |
Height | 14,2 mm / 0.559 inch |
Depth | 20,1 mm / 0.791 inch |
Color | multicoloured |
Cover color | red |
Flammability class per UL94 | V2 |
Fire load | 0,115 MJ |
Weight | 5,8 g |
Surrounding air temperature (operation) | 60 … 60 °C |
Continuous operating temperature | 105 … 105 °C |
Packaging type | BOX |
Country of origin | CN |
GTIN | 4050821215141 |
Customs tariff number | 85369010000 |
