Tablou electric, incastrat, 96 module, 4x24, IP30, Hager, Univers, FWU42S
![FWU42S [1]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-electric-incastrat-96-module-4x24-ip30-hager-univers-fwu42s-377372.webp "FWU42S [1]")
![FWU42S [2]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-electric-incastrat-96-module-4x24-ip30-hager-univers-fwu42s-572634.webp "FWU42S [2]")
![FWU42S [3]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-electric-incastrat-96-module-4x24-ip30-hager-univers-fwu42s-570725.webp "FWU42S [3]")
![FWU42S [4]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-electric-incastrat-96-module-4x24-ip30-hager-univers-fwu42s-351507.webp "FWU42S [4]")
![FWU42S [0]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-electric-incastrat-96-module-4x24-ip30-hager-univers-fwu42s-377372.webp "FWU42S [0]")
![FWU42S [1]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-electric-incastrat-96-module-4x24-ip30-hager-univers-fwu42s-572634.webp "FWU42S [1]")
![FWU42S [2]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-electric-incastrat-96-module-4x24-ip30-hager-univers-fwu42s-570725.webp "FWU42S [2]")
![FWU42S [3]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-electric-incastrat-96-module-4x24-ip30-hager-univers-fwu42s-351507.webp "FWU42S [3]")
Economisesti: 61,44 RON
1x cleme QuickConnect PE/N
- Descriere
- Caracteristici
- Review-uri (0)
Hager FWU42S
| Cod | FWU42S |
|---|---|
| Descriere | Tablou din metal Hager Seria FW |
| Greutate | 13.9 kg |
| Nivel | Cutii aplicate IP30 |
| Curent nominal (A) | 125 |
| Tensiunea nominală (V) | 400 |
| Tip montaj | aparent |
| Grad de protecție IP | IP 30 |
| No. of modules (total/per row) | 96 module, 24 per rând |
| Număr de rânduri | 4 |
| Ușa (material, color) | metal pur, alb |
| Cutie (material, color) | Metal pur, alb |
| Glow wire test (°C) | 850 |
| Suprafață montaj | zidărie, gips-carton |

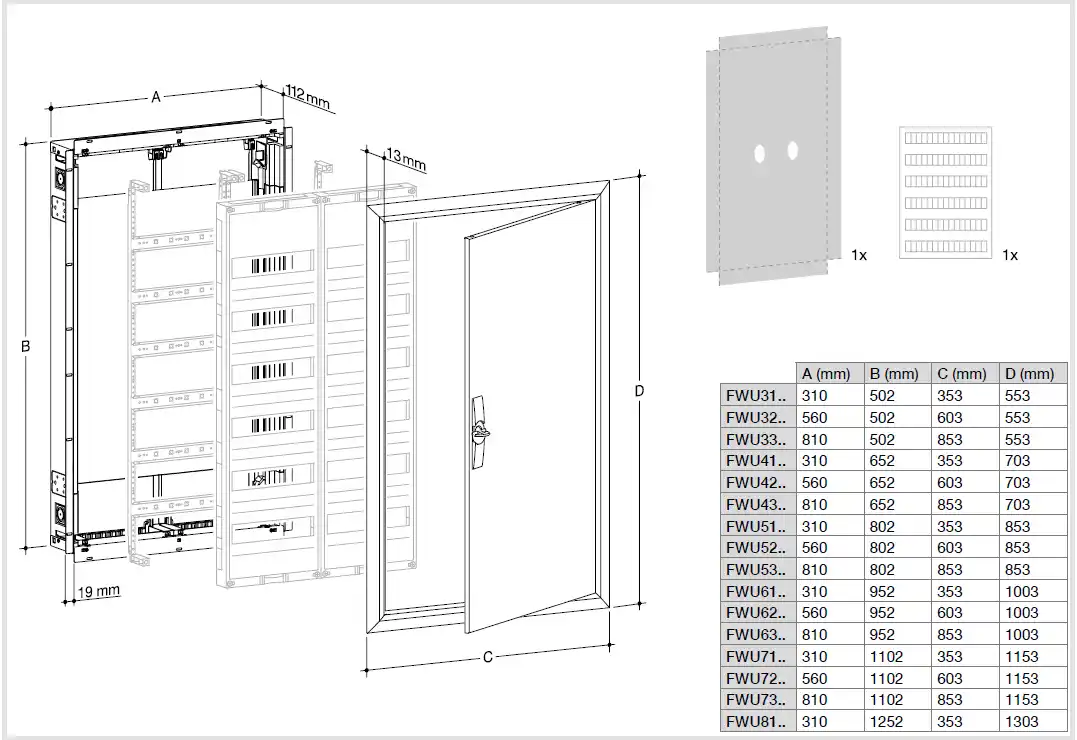

Dimensiuni Gabarit Tablou
| Dimensiune | Valoare |
|---|---|
| Înălțime | 703 mm |
| Lățime | 603 mm |
| Adâncime | 125 mm |
Dimensiuni Nișă perete
| Dimensiune | Valoare |
|---|---|
| Înălțime | 652 mm |
| Lățime | 560 mm |
| Adâncime | 112 mm |
Link-uri utile
Declarație Conformitate
Link producător
Date tehnice (producător)
Numar total module: 96
Tip montaj: incastrat
Utilizare: interior
Material: metal
Tip ușă: usa metalica
Grad de Protecție IP: IP30
Gamă: Hager Univers
