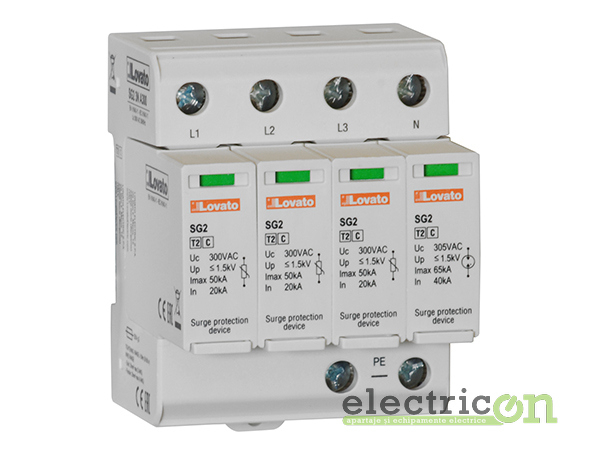

Product designation | Surge Protection Device (SPD) | |||
Product type designation | SG2 | |||
Operating voltage type | AC | |||
Application | AC Power lines | |||
Number of poles | 3P+N | |||
Number of DIN modules | 4 | |||
SPD according to IEC/EN 61643-11 | YES | |||
Electrical features | ||||
IEC Maximum continuous voltage Uc | V | 300 | ||
IEC Maximum discharge current Imax 8/20 (L-N/N-PE) | kA | 50 / 65 | ||
IEC Rated discharge current (IEC) In 8/20 (L-N/N-PE) | kA | 20 | ||
IEC Voltage protection level Up (L-N/N-PE) | kV | <1.5 / <1.5 | ||
IEC Follow current If (N-PE) rms | A | 100 | ||
Tripping time ta (L-N/N-PE) | ns | <25 / 100 | ||
Thermal insulation protection | YES | |||
IEC Backup protection fuse with supply fuse >315A (L-N/N-PE) | Class/A | 315A / 250A Gg | ||
IEC Maximum short circuit current at 50Hz | kA | 25 / 50 | ||
Status indicator - operating / end of life | Frontal indication | |||
Ambient conditions | ||||
Operating temperature | ||||
min | °C | -40 | ||
max | °C | +85 | ||
Max altitude | m | 2000 | ||
Mechanical features | ||||
Fixing | Din rail | |||
Conductor section Flexible max (IEC) | mm² | 25 | ||
Conductor section Rigid max (IEC) | mm² | 35 | ||
Weight | g | 477 | ||
Relay output for remote status indication | ||||
Rated current at | ||||
48V DC | A | 0.5 | ||
ETIM classification | ||||
ETIM 8.0 | EC000941 - Surge protection device for power supply systems |
