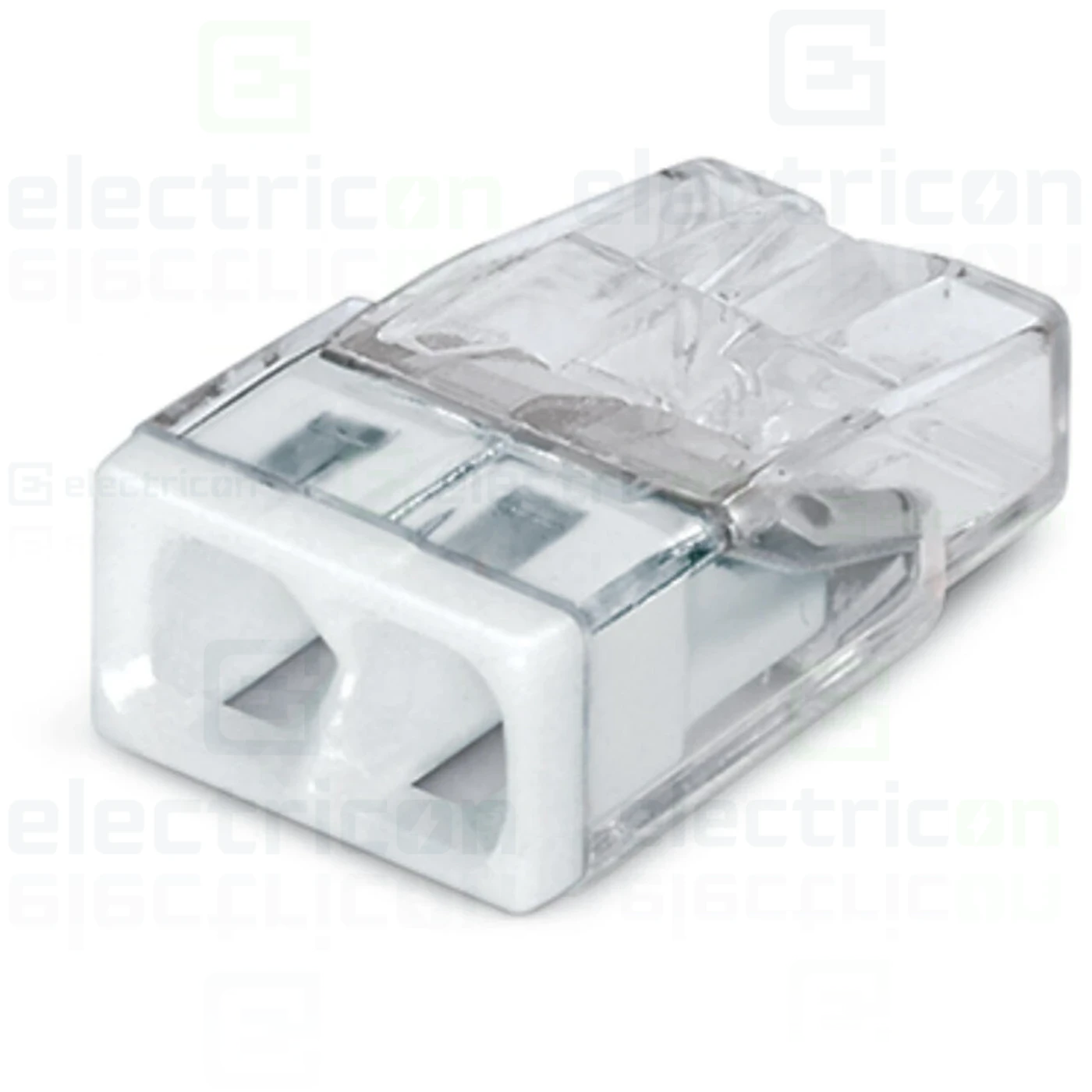

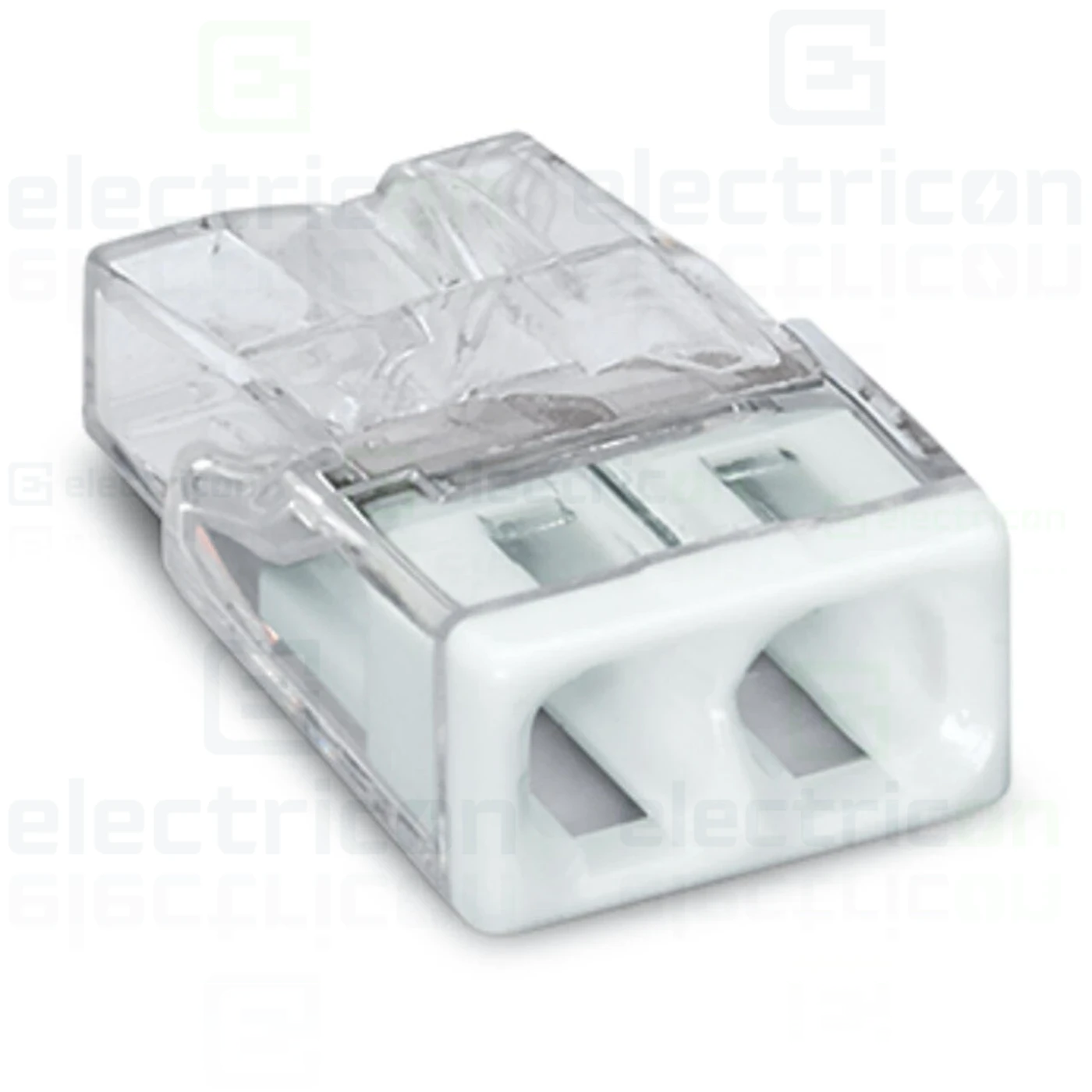

Clema Wago 2273-202
![2273-202 [1]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/2273202-15554-5304.webp "2273-202 [1]")
![2273-202 [2]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/clema-wago-2273-202-15554-8501.jpg "2273-202 [2]")
![2273-202 [0]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/2273202-15554-5304.webp "2273-202 [0]")
![2273-202 [1]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/clema-wago-2273-202-15554-8501.jpg "2273-202 [1]")
Economisesti: 0,03 Lei
Clema ;Wago 2273-202;
Zile de livrare: Luni - Vineri
Data estimata de livrare: poimaine, 23.01.2025
Cod Produs:
2273-202
Ai nevoie de ajutor?
0773393640
/
0772245110
Pachete si Promotii
-
300 x CLEMA WAGO 2273-202
0,63 Lei0,60
Pachet cleme Wago seria 2273 (202, 203, 204, 205, 208, 2401, 406)
-
100 x CLEMA WAGO 2773-406
2,35 Lei2,23 -
300 x CLEMA WAGO 2773-2401
1,97 Lei1,87 -
100 x CLEMA WAGO 2273-208
1,92 Lei1,82 -
300 x CLEMA WAGO 2273-205
0,97 Lei0,92 -
300 x CLEMA WAGO 2273-204
0,87 Lei0,83 -
300 x CLEMA WAGO 2273-203
0,69 Lei0,66 -
300 x CLEMA WAGO 2273-202
0,63 Lei0,60
- Descriere
- Video (1)
- Review-uri (0)
Link Producator
https://www.wago.com/ro/installation-terminal-blocks-and-connectors/compact-splicing-connector/p/2273-202
Electrical data
Ratings per IEC/EN 60664-1
Connection data
More
Physical data
Material data
Environmental requirements
Commercial data
https://www.wago.com/ro/installation-terminal-blocks-and-connectors/compact-splicing-connector/p/2273-202
Electrical data
Ratings per IEC/EN 60664-1
| Ratings per | IEC/EN 60664-1 |
| Nominal voltage (II/2) | 450 V |
| Rated surge voltage (II/2) | 4 kV |
| Rated current | 24 A |
| Legend (ratings) | (II / 2) ≙ Overvoltage category II / Pollution degree 2 |
Connection data
| Connection technology | PUSH WIRE® |
| Actuation type | Push-in |
| Connectable conductor materials | Copper Aluminum |
| Solid conductor | 0.5 … 2.5 mm² / 20 … 16 AWG |
| Strip length | 11 mm / 0.43 inch |
| Total number of connection points | 2 |
| Total number of potentials | 1 |
| Wiring type | Side-entry wiring |
More
Physical data
| Width | 10 mm / 0.394 inch |
| Height | 5.8 mm / 0.228 inch |
| Depth | 16.7 mm / 0.657 inch |
Material data
| Color | transparent |
| Cover color | white |
| Flammability class per UL94 | V2 |
| Fire load | 0.014 MJ |
| Weight | 0.7 g |
Environmental requirements
| Surrounding air temperature (operation) | 60 °C |
| Continuous operating temperature | 105 °C |
| Temperature marking per EN 60998 | T60 |
Commercial data
| Product Group | 7 (Push Wire Conn.) |
| Packaging type | BOX |
| Country of origin | DE |
| GTIN | 4050821027843 |
| Customs tariff number | 85369010000 |
