Ratings per | EN 60664 |

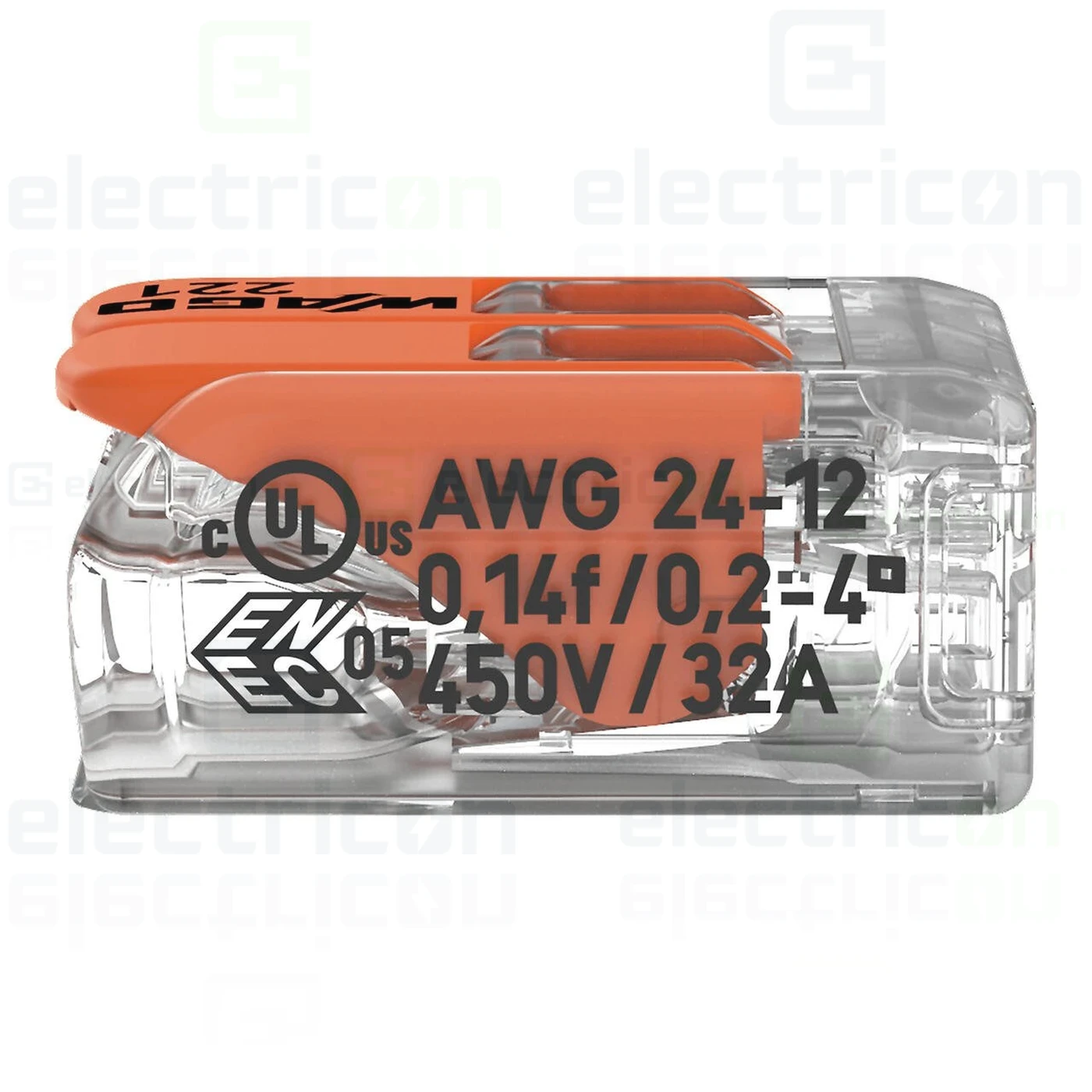

Nominal voltage (II/2) | 450 V |
Rated surge voltage (II/2) | 4 kV |
Rated current | 32 A |
Legend (ratings) | (II / 2) ≙ Overvoltage category II / Pollution degree 2 |
Approvals per | UL 486C |

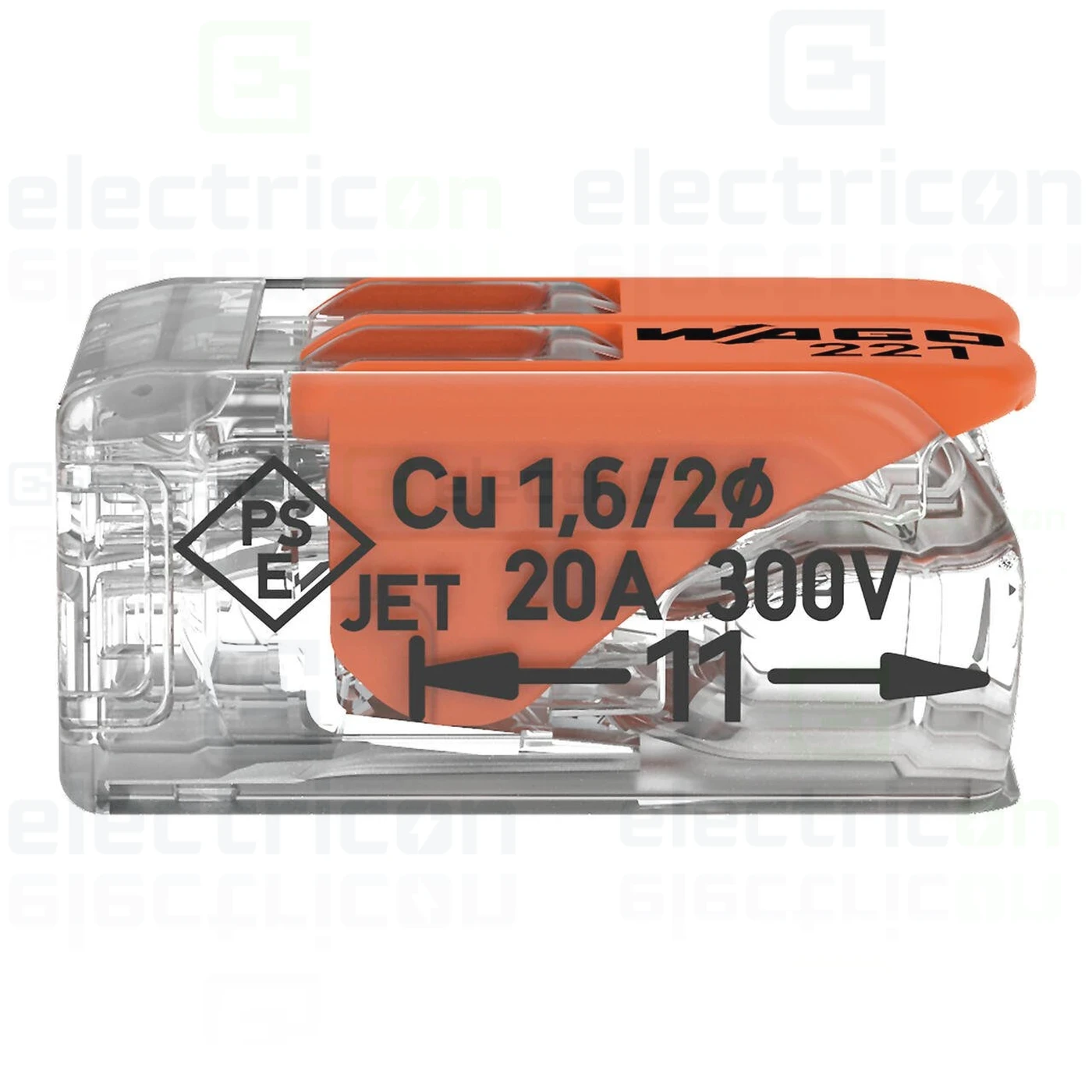

Rated voltage UL (Use Group C) | 600 V |
Rated current UL (Use Group C) | 20 A |
Connection technology | CAGE CLAMP® |

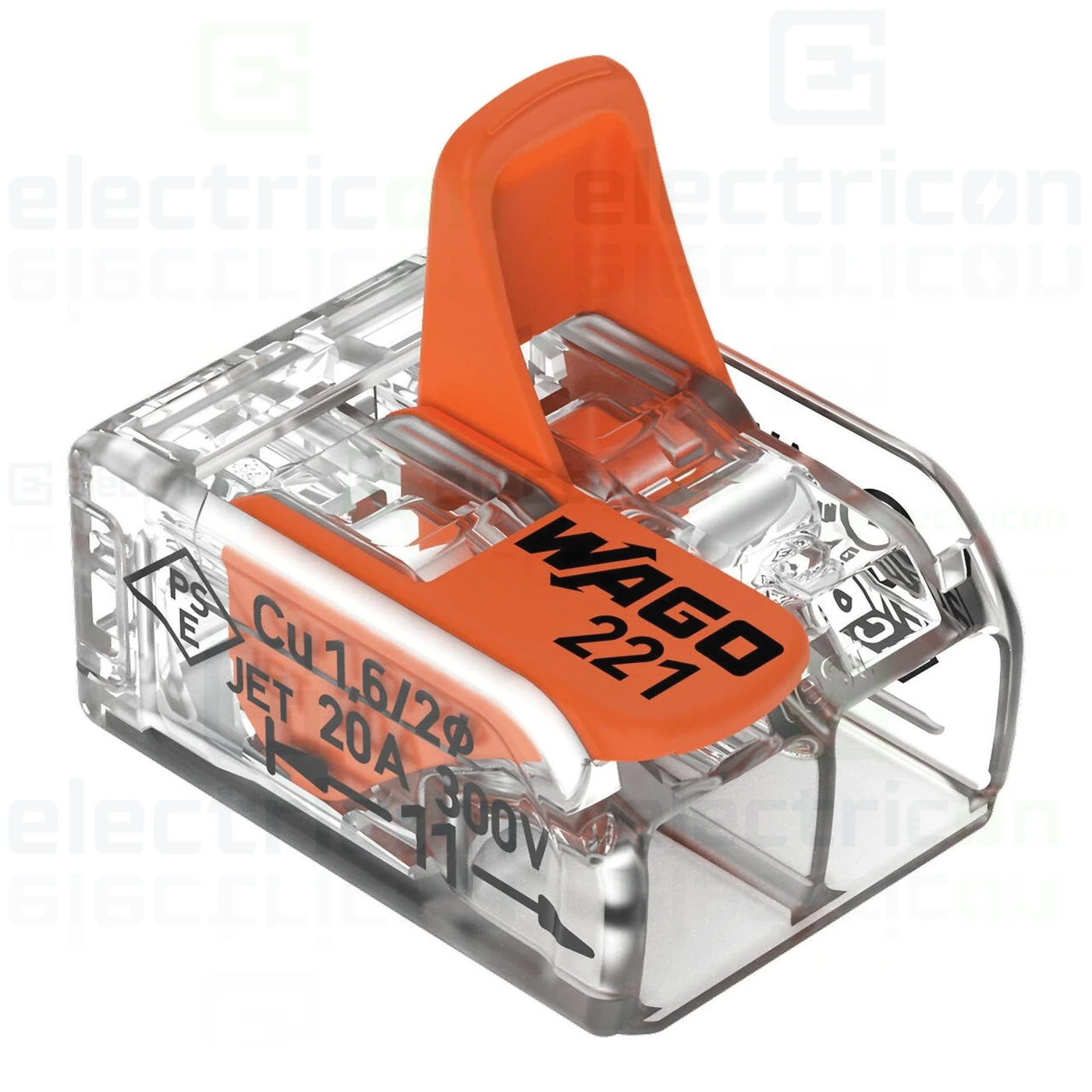

Actuation type | Lever |
Connectable conductor materials | Copper |
Nominal cross-section | 4 mm² |
Solid conductor | 0,2 … 4 mm² / 24 … 12 AWG |
Stranded conductor | 0,2 … 4 mm² / 24 … 12 AWG |
Fine-stranded conductor | 0,14 … 4 mm² / 24 … 12 AWG |
Strip length | 11 mm / 0.43 inch |
Total number of connection points | 2 |
Total number of potentials | 1 |
Wiring type | Side-entry wiring |

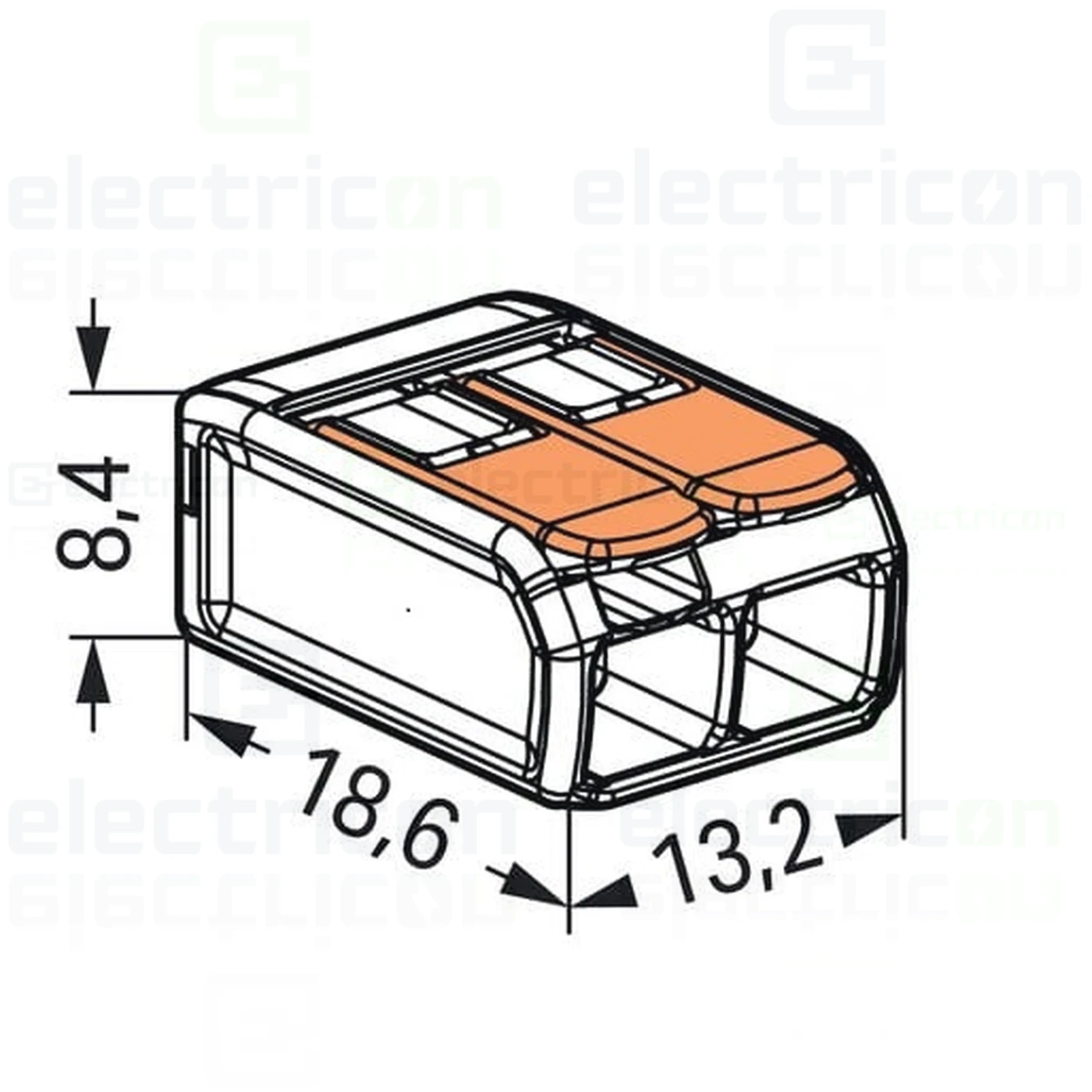

Width | 13,1 mm / 0.516 inch |
Height | 8,3 mm / 0.327 inch |
Depth | 18,6 mm / 0.732 inch |
Color | transparent |
Flammability class per UL94 | V2 |
Color of actuator | orange |
Weight | 1,7 g |
Surrounding air temperature (operation) | 85 °C |
Continuous operating temperature | 105 °C |
Temperature marking per EN 60998 | T85 |
Product Group | 7 (Push Wire Conn.) |
Packaging type | BOX |
Country of origin | DE |
GTIN | 4050821808435 |
Customs tariff number | 85369010000 |
