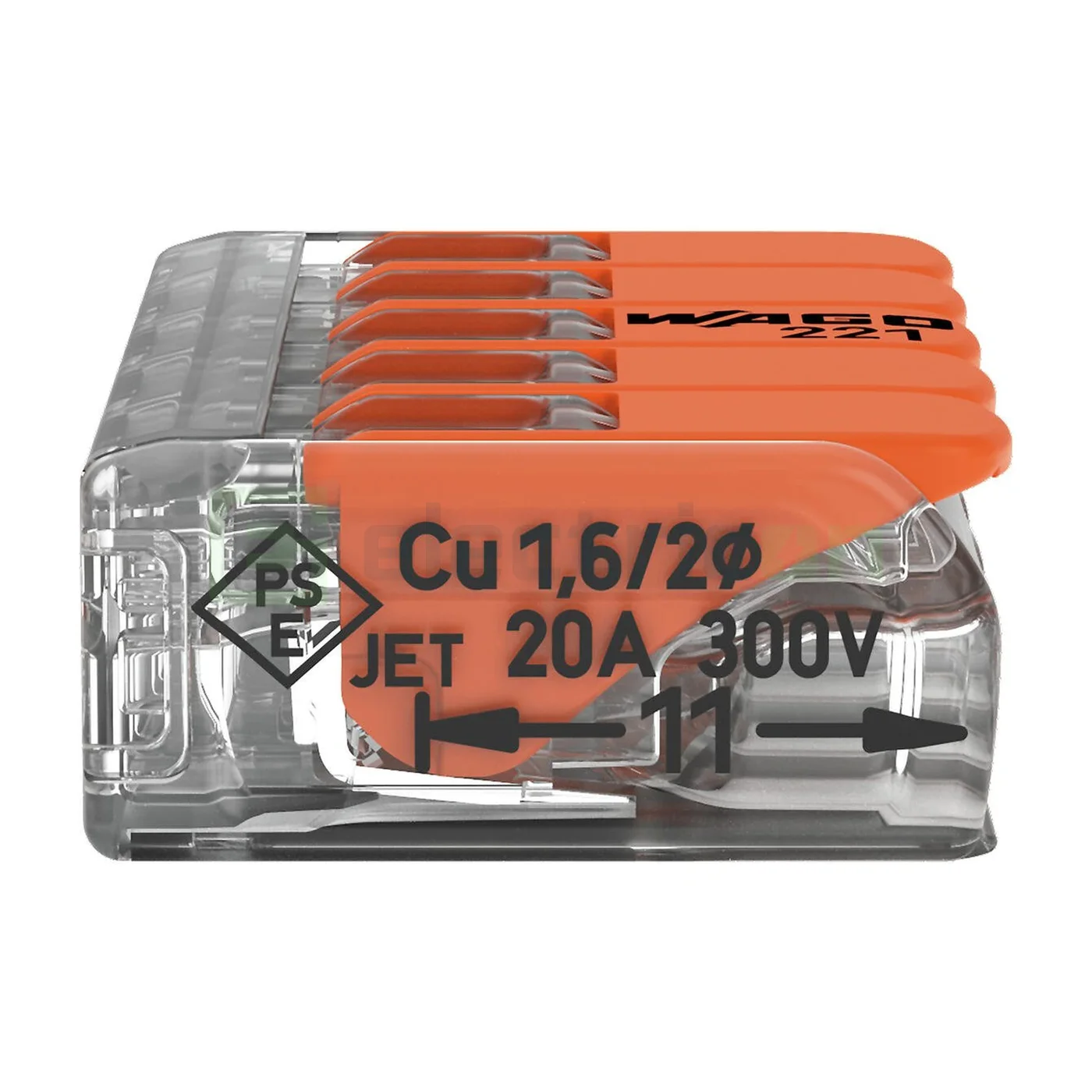

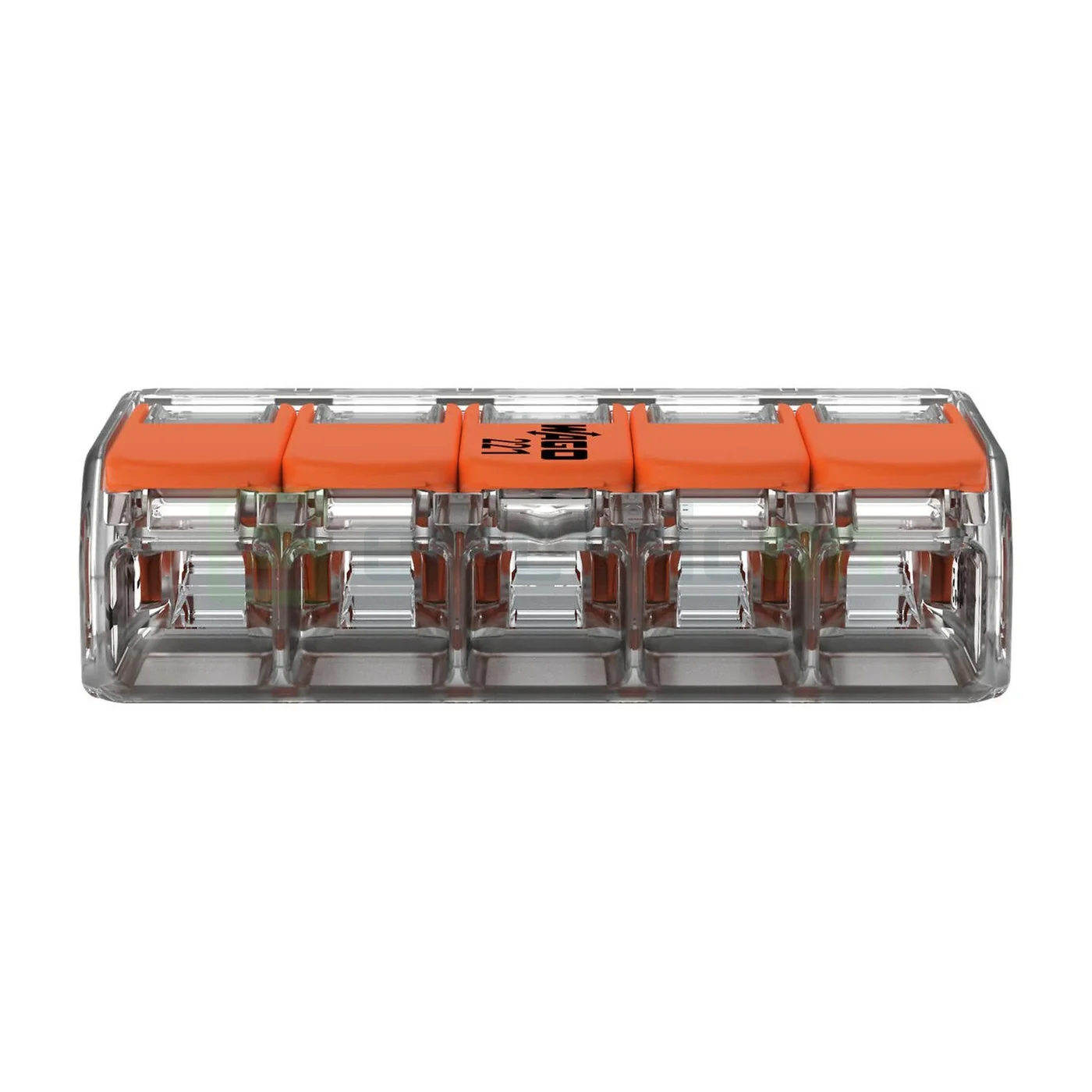

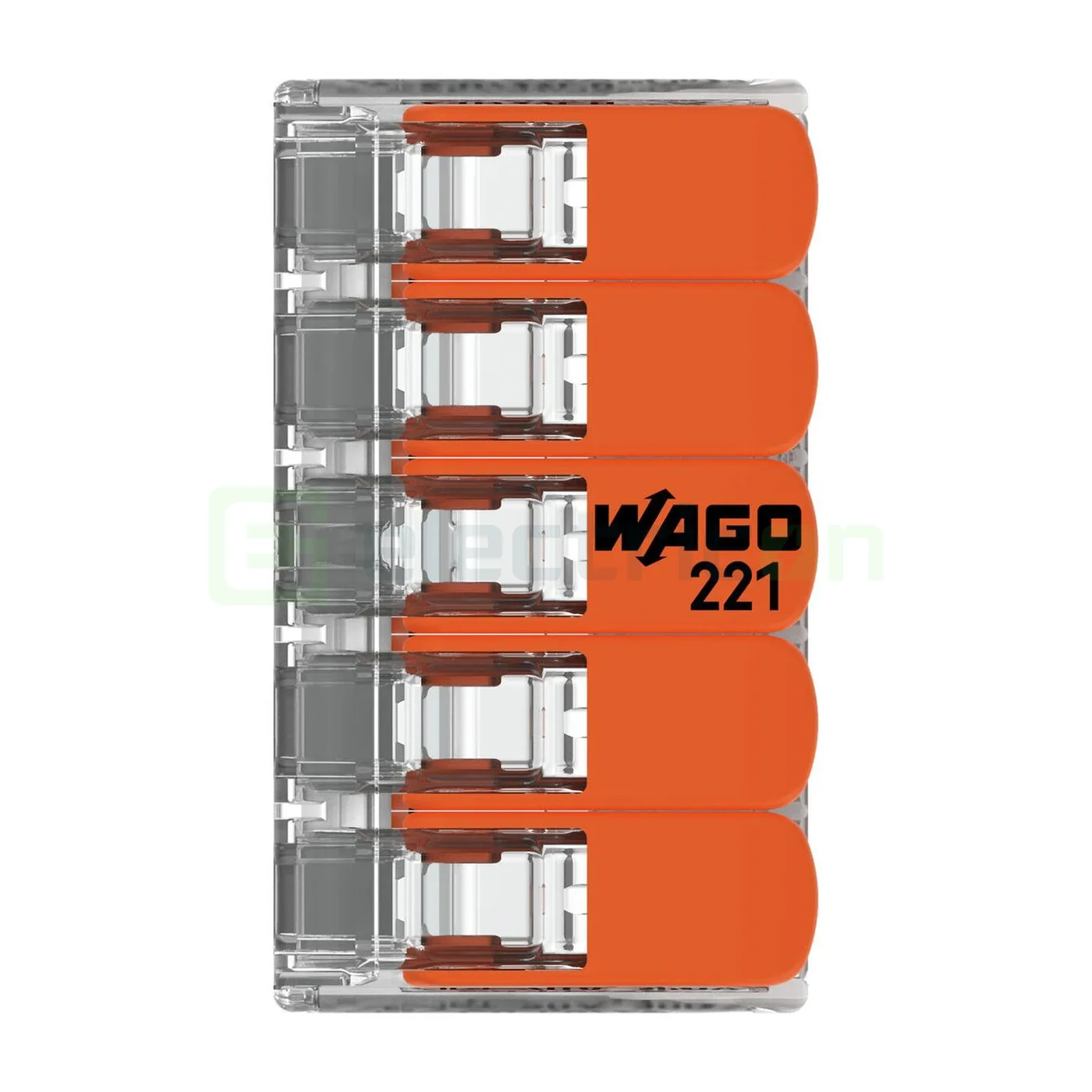

Wago Clema cu clapeta Wago 221-415

2,72 Lei 2,58 Lei
Economisesti: 0,14 Lei
TVA inclus

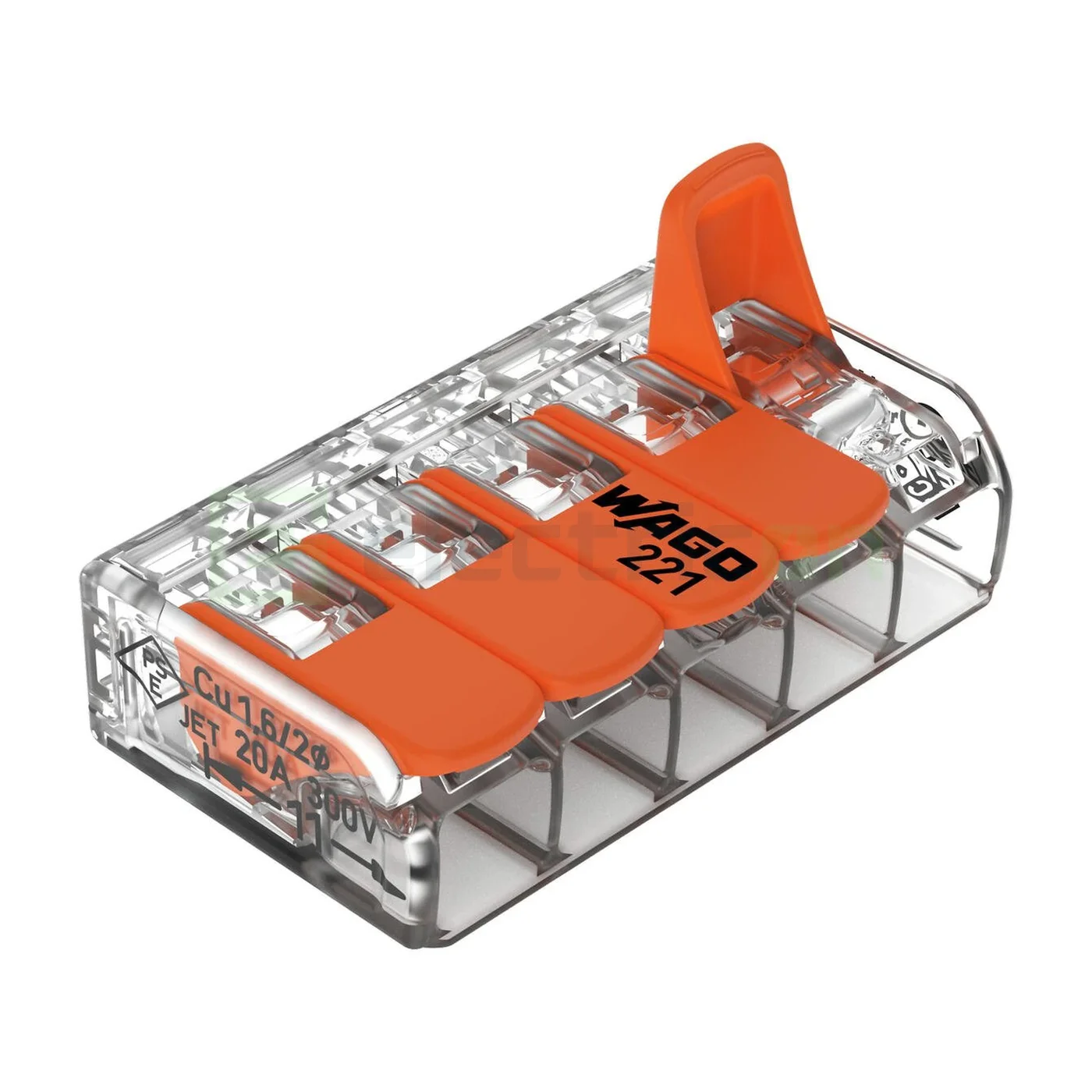

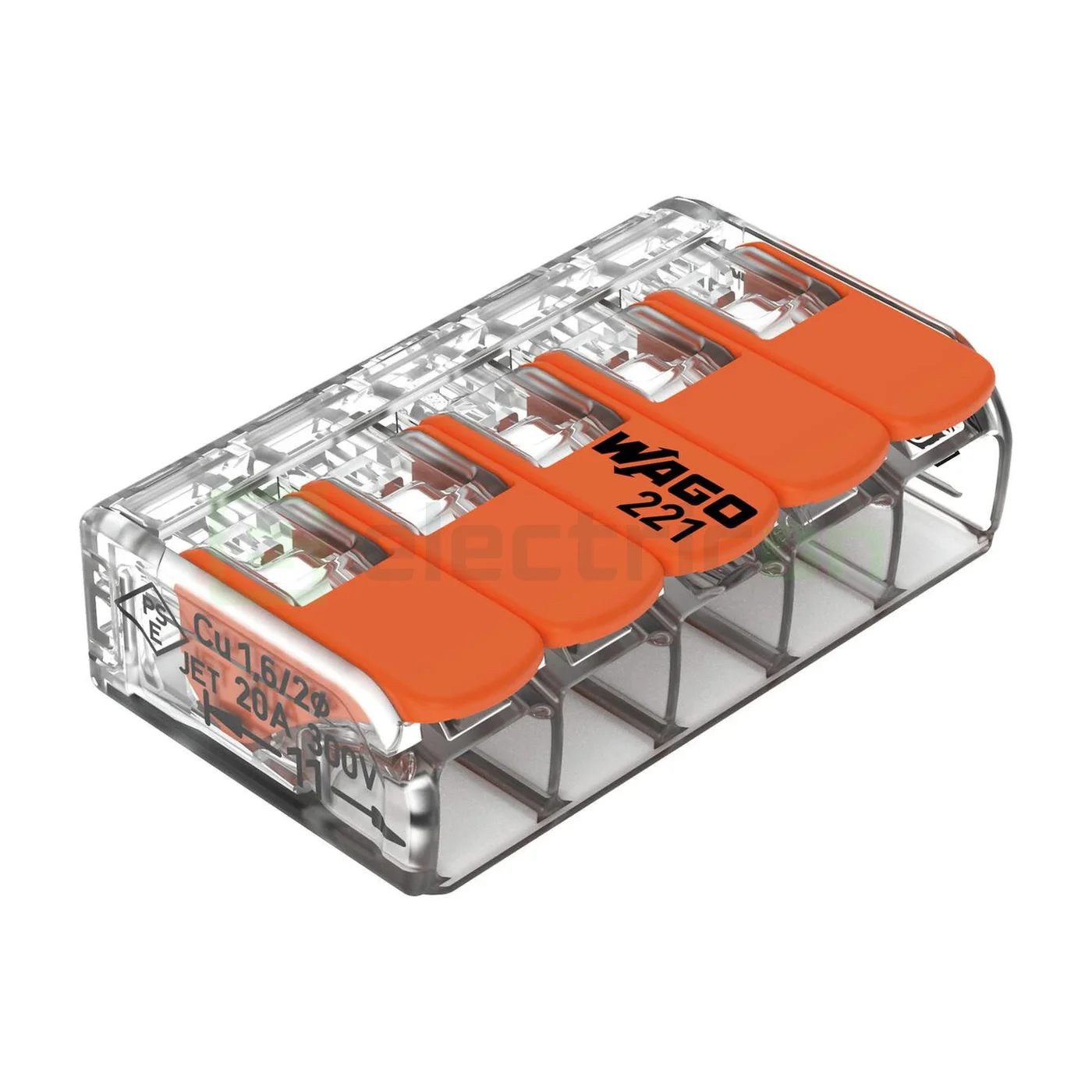

Clema cu clapeta Wago 221-415

Zile de livrare: Luni - Vineri

2153 In stoc

Data estimata de livrare: poimaine, 09.12.2024

Limita stoc
Adauga in cos
Cod Produs: 221-415 Ai nevoie de ajutor? 0773393640 / 0772245110
Adauga la Favorite Cere informatii
  • Descriere
  • Video (1)
  • Review-uri (0)
Link Producator
https://www.wago.com/ro/installation-terminal-blocks-and-connectors/compact-splicing-connector/p/221-415



Electrical data
Ratings per IEC/EN 60664-1
Ratings per EN 60664

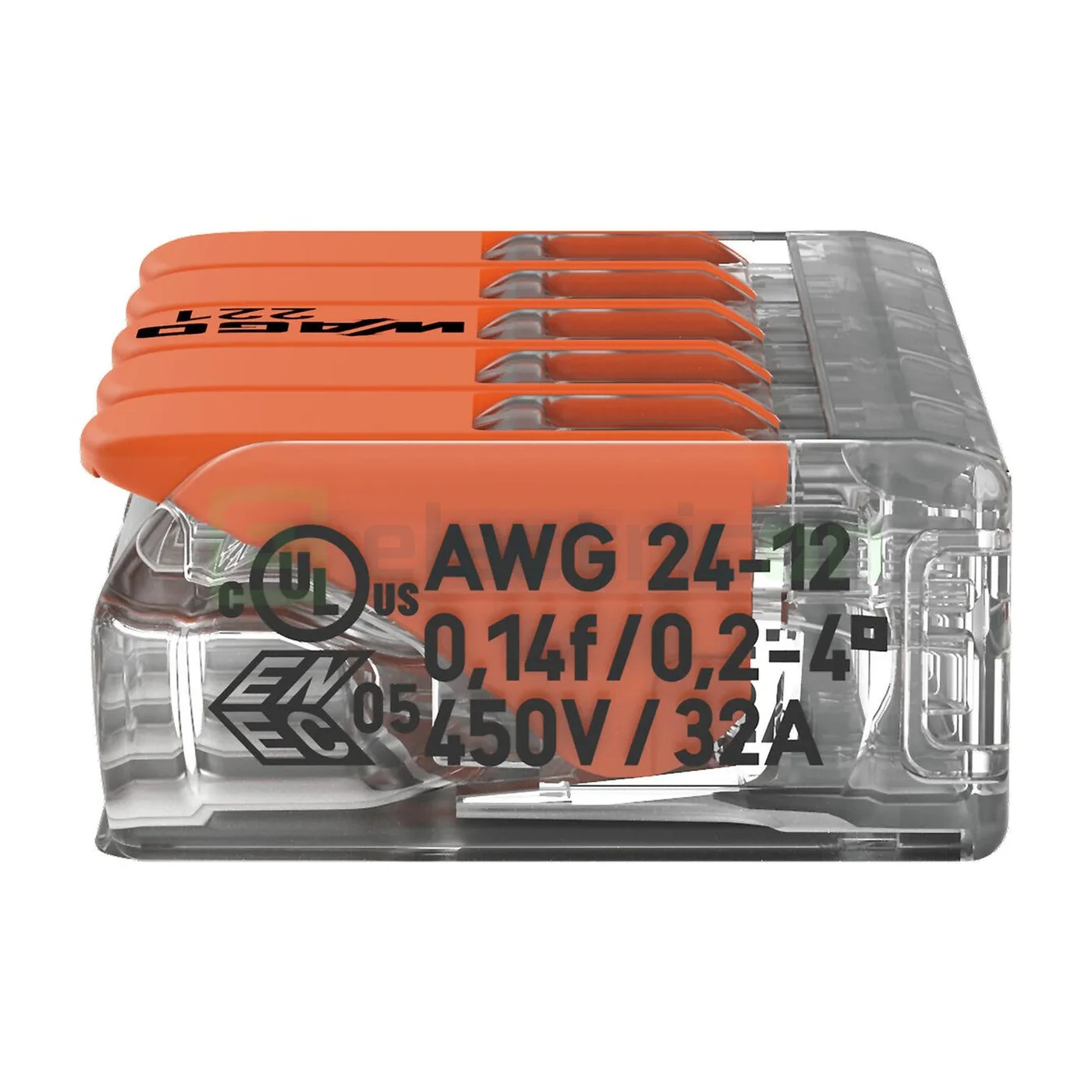

Nominal voltage (II/2) 450 V
Rated surge voltage (II/2) 4 kV
Rated current 32 A
Legend (ratings) (II / 2) ≙ Overvoltage category II / Pollution degree 2

Ratings per UL 1059
Approvals per UL 486C
Rated voltage UL (Use Group C) 600 V
Rated current UL (Use Group C) 20 A

Connection data
Connection technology CAGE CLAMP®
Actuation type Lever
Connectable conductor materials Copper
Nominal cross-section 4 mm²
Solid conductor 0,2 … 4 mm² / 24 … 12 AWG
Stranded conductor 0,2 … 4 mm² / 24 … 12 AWG
Fine-stranded conductor 0,14 … 4 mm² / 24 … 12 AWG

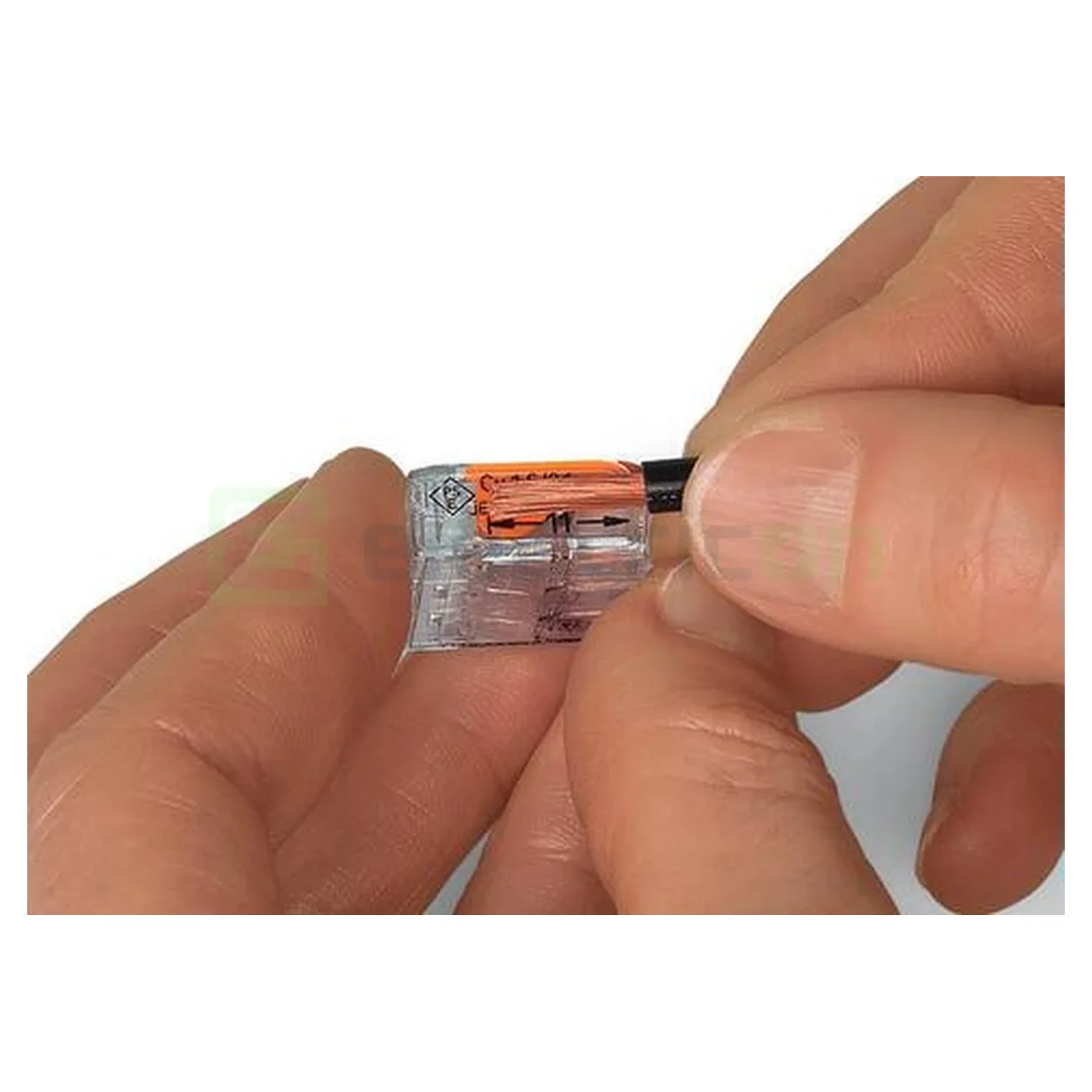

Strip length 11 mm / 0.43 inch
Total number of connection points 5
Total number of potentials 1
Wiring type Side-entry wiring

Mai mult
Physical data

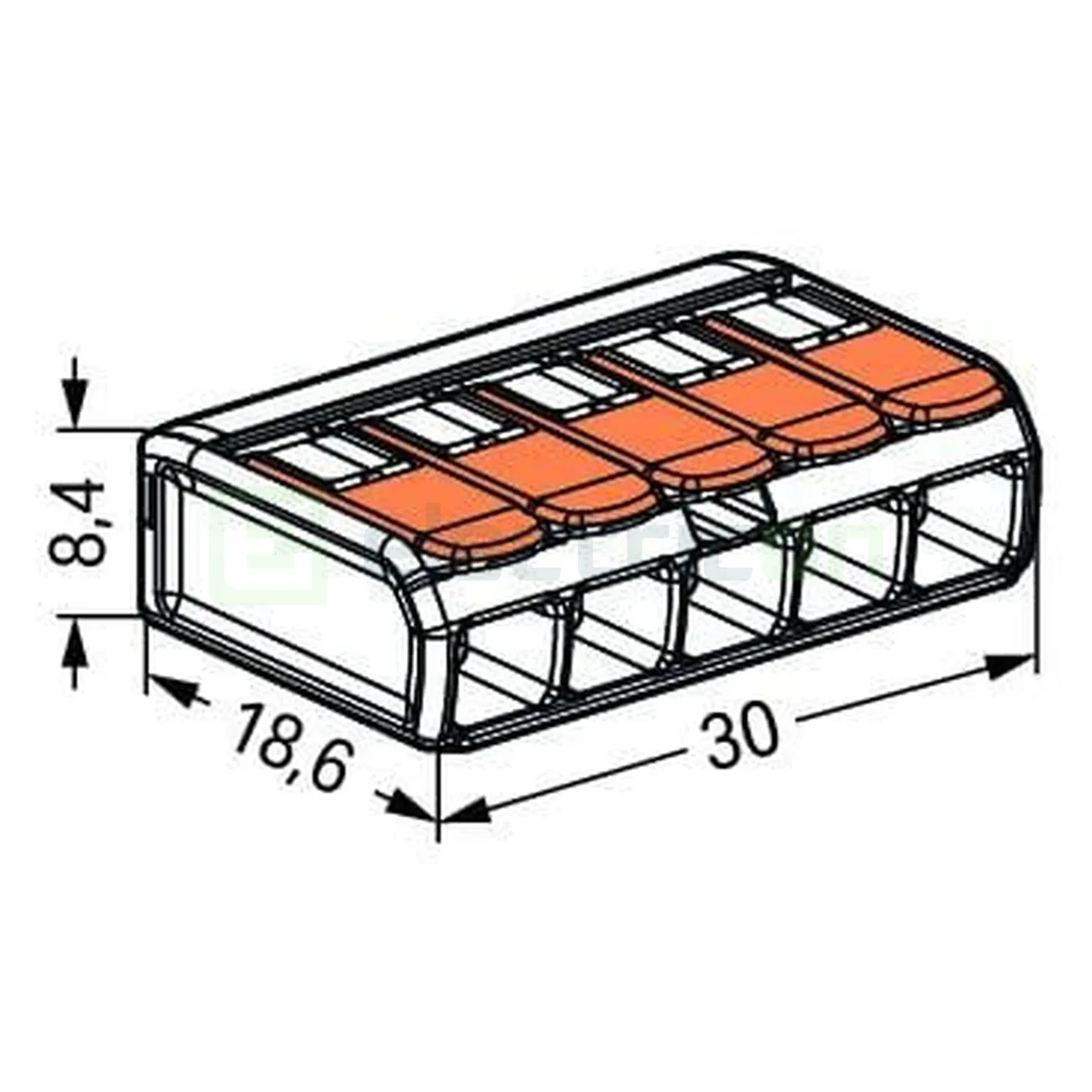

Width 29,9 mm / 1.177 inch
Height 8,3 mm / 0.327 inch
Depth 18,6 mm / 0.732 inch

Material data
Color transparent
Flammability class per UL94 V2
Color of actuator orange
Weight 4 g

Environmental requirements
Surrounding air temperature (operation) 85 °C
Continuous operating temperature 105 °C
Temperature marking per EN 60998 T85

Commercial data
Product Group 7 (Push Wire Conn.)
Packaging type BOX
Country of origin DE
GTIN 4055143234658
Customs tariff number 85369010000
