Produsele din stocul electricon, se livrează în 24-48 ore

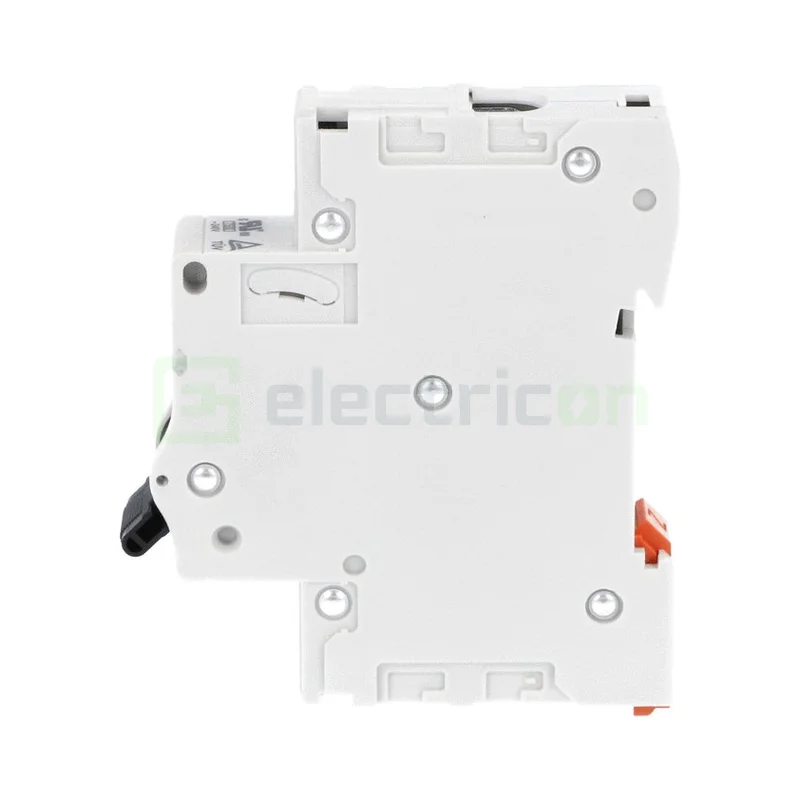

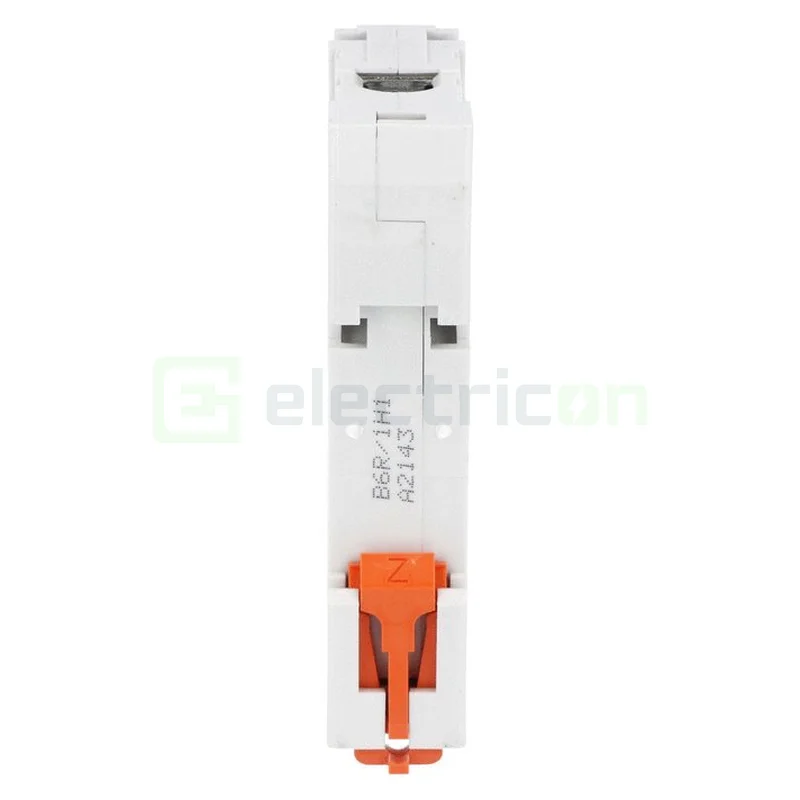

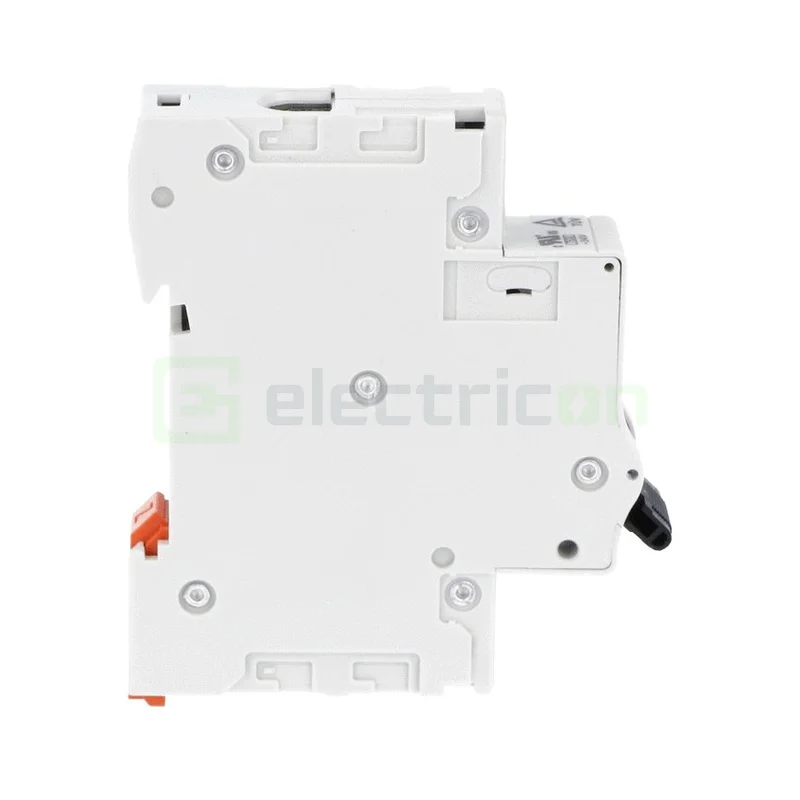

Siguranta automata (disjunctor) MCB, curba B, 16A, 1P, 10kA, 1M, Lovato Electric, P1MB1PB16
![Disjunctor MCB B16A N/A - P1MB1PB16 [1]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/siguranta-automata-1p-b16-10ka-lovato-177087.jpg "Disjunctor MCB B16A N/A - P1MB1PB16 [1]")
Economisesti: 4,64 RON
P1MB1PB16
Data estimata de livrare: Marti, 09.12.2025
Cod Produs:
P1MB1PB16
Ai nevoie de ajutor?
0773393640
/
0772245110
- Descriere
- Caracteristici
- Review-uri (0)
| Product designation | Miniature circuit breaker (MCB) | |||
| Product type designation | P1 MB | |||
| Number of poles | 1P | |||
| Number of DIN modules | 1 | |||
| Compliance | IEC / UL1077 | |||
| Electrical features | ||||
| Rated insulation voltage Ui IEC/EN | V | 440 | ||
| Rated impulse withstand voltage Uimp | kV | 4 | ||
| Rated operational voltage AC (IEC) | VAC | 230 | ||
| Rated operational voltage DC | VDC | 60 | ||
| Rated frequency | Hz | 50/60 | ||
| Rated current (In) | A | 16 | ||
| Tripping curve | B | |||
| Short circuit rating (IEC) | kA | 10 | ||
| Power dissipation per pole max | W | 1.69 | ||
Curent nominal: 16 A
Tensiune: 230 V
Numar de poli: 1P
Grad de Protecție IP: IP20
Capacitate intrerupere: 10kA
