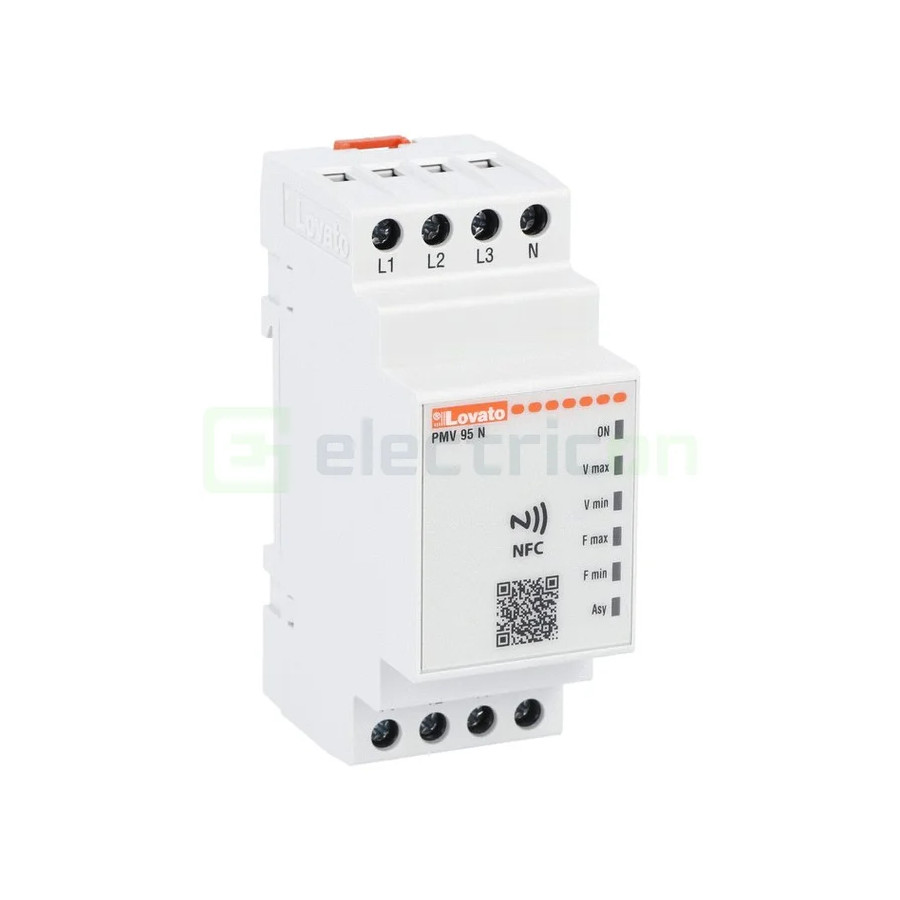

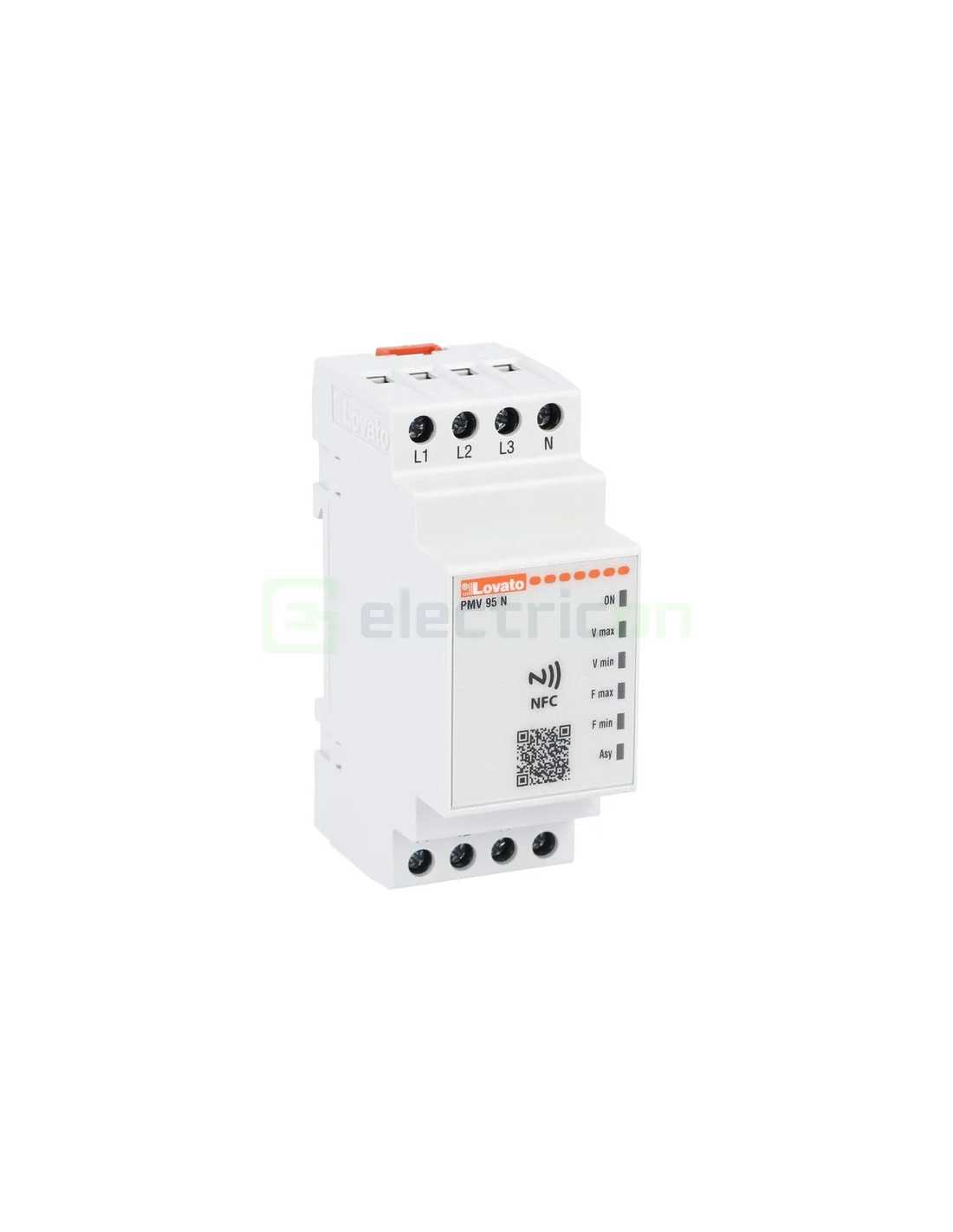

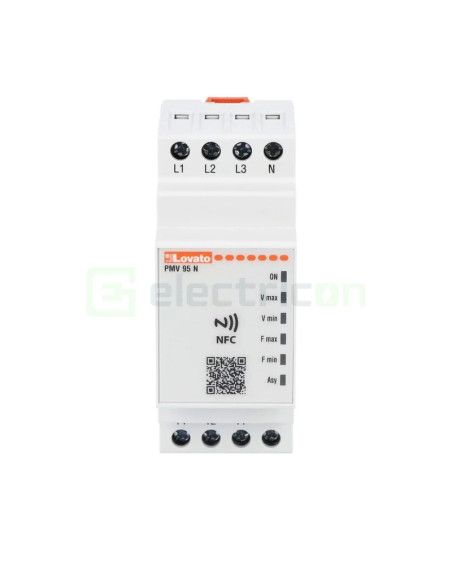

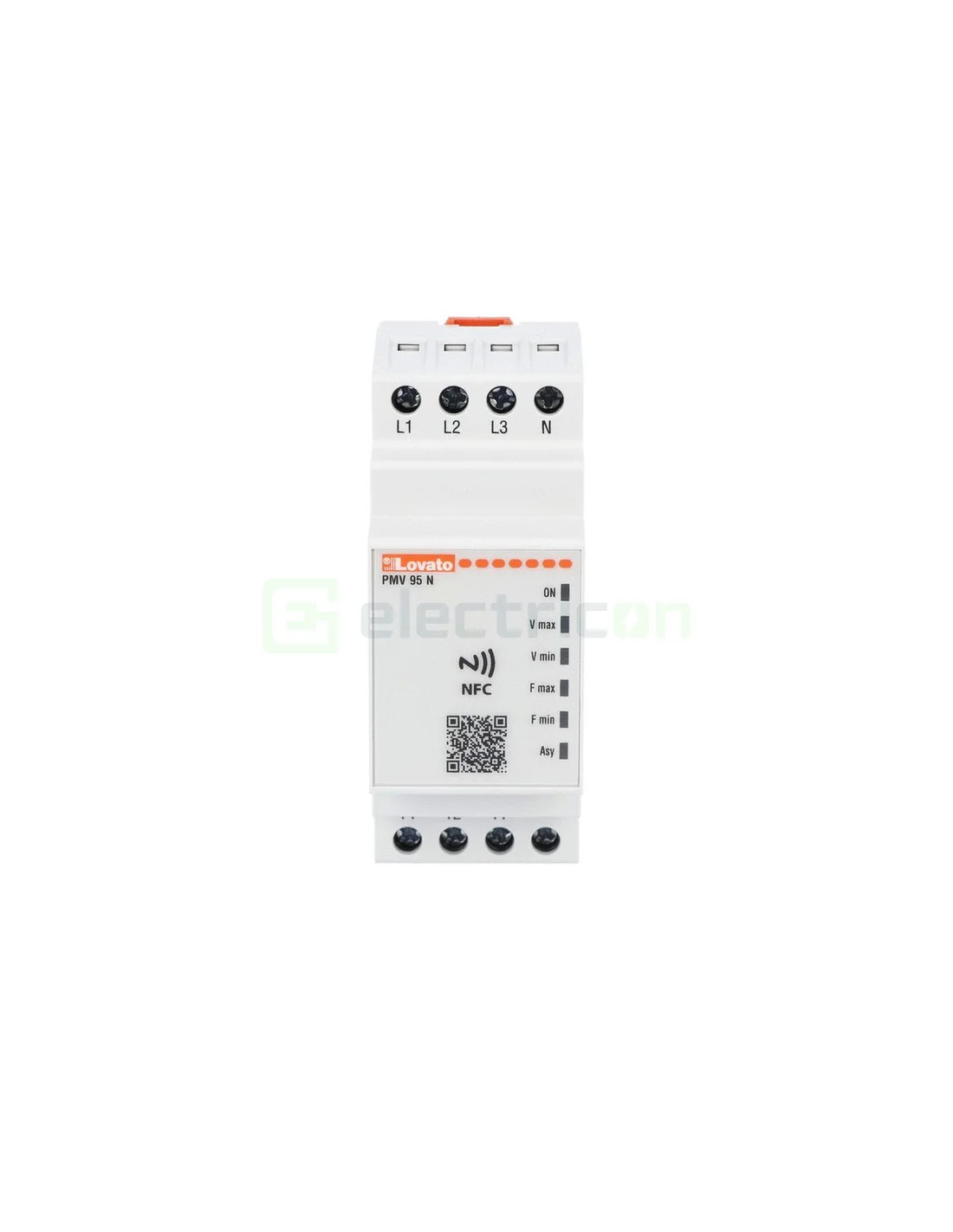

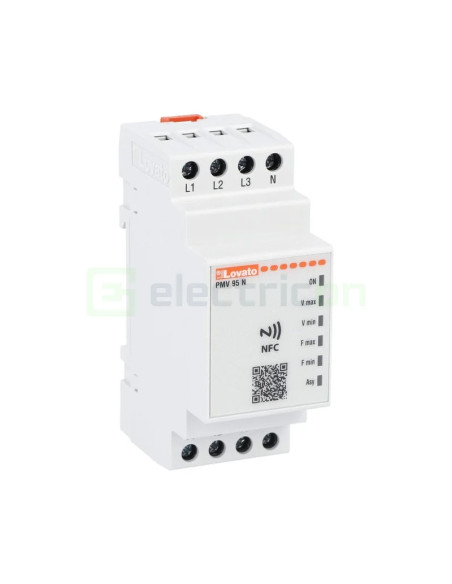

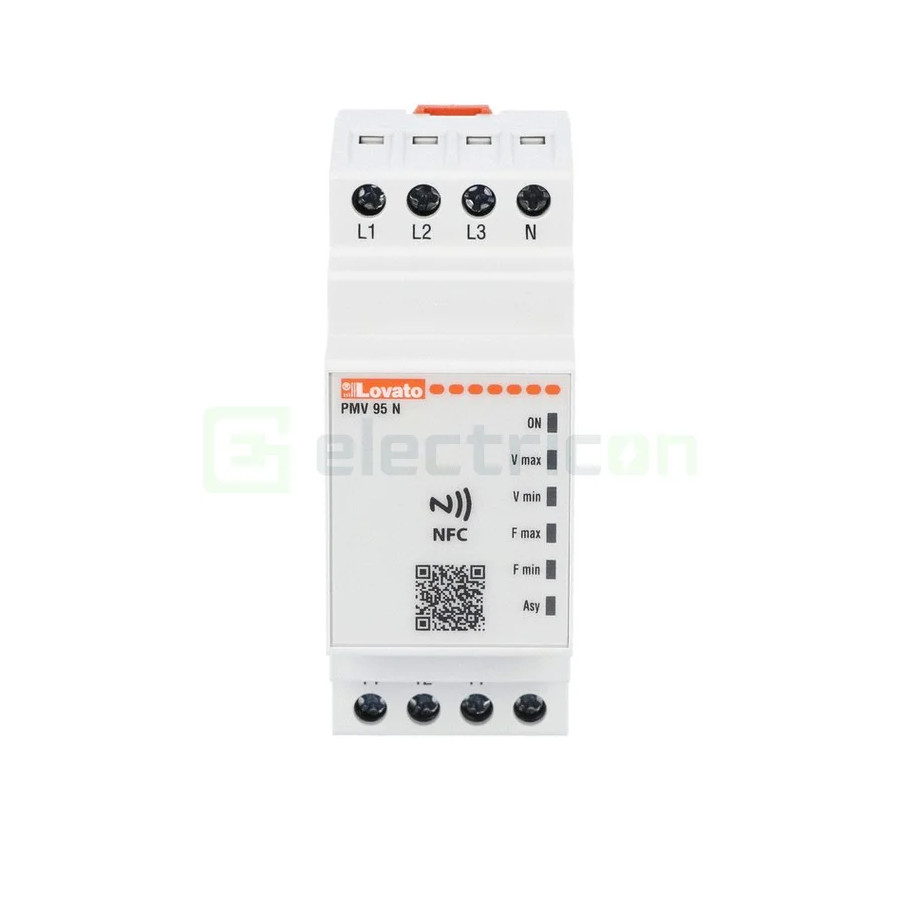

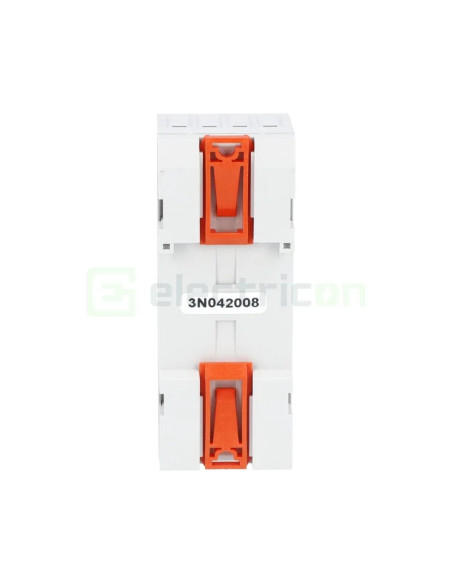

Releu multifunctional de monitorizare a tensiunii si frecventei pentru sisteme trifazate cu sau fara neutru cu tehnologie NFC si App. 208 240VAC 50/60Hz
📦 Produs în lichidare de stoc!
Cod Produs: PMV95NA240NFC
Ai nevoie de ajutor? 0773393640 - suport tehnic / 0772245110 - suport comenzi
Gama variata
National
Livrare
Oferte
Info
Partener| Cod de comanda | PMV95NA240NFC |
| Greutate [g] | 122.2 |
| Cantitate in ambalaj | 1 |
| Cantitate multipla de ambalaje per comanda | 1 |
| Dimensiune ambalaj | 095X040X075 |
| Volume [cm³] | 285 |
| Cod de bare [EAN13] | 8013975237335 |
| Cod HS | 85364900 |
https://www.lovatoelectric.ro/PMV95NA240NFC/PMV95NA240NFC/snp
Caracteristici generale:
Certificate si conformitati:
Certificate: cULus, EAC.
In conformitate cu standardele: IEC/EN 60255-27 IEC/EN 60255-26 UL508 CSA C22.2 n°14.
| Product designation | Multifunction voltage and frequency monitoring relays with NFC technology | |||
| Product type designation | PMV95N | |||
| General characteristics | ||||
| Description | Minimum and maximum AC voltage, minimum and maximum frequency, phase loss,neutral loss, incorrect phase sequence and asymmetry relay | |||
| Type of system | Three-phase with/without neutral | |||
| Power supply | ||||
| Auxiliary supply voltage Us | Self powered | |||
| Operating voltage range | 0.7...1.2 Ue | |||
| Rated frequency | Hz | 50/60 ±5% | ||
| Power consumption Max | VA | 30 | ||
| Power dissipation Max | W | 2.5 | ||
| Control circut | ||||
| Rated voltage to control (Ue) | ||||
| min | VAC | 208 | ||
| Max | VAC | 240 | ||
| Voltage set-point (%Ue) | ||||
| min | % | 80…95 | ||
| Max | % | 105…115 | ||
| Asymmetry set-point (%Ue) | % | 5…15 | ||
| Frequency set-point (% rated frequency) | ||||
| min | % | 90…99 | ||
| Max | % | 101…110 | ||
| Tripping delay | s | 0.1…30 | ||
| Resetting time | s | 0.1…30 | ||
| Resetting hysteresis | % | 1…5 | ||
| Instantaneous tripping for Ue | Voltage <70% Ue | |||
| Type of reset | Automatic or manual | |||
| Repeat accuracy | % | <±0.1 | ||
| Relay outputs | ||||
| Number of relays | Nr. | 1 | ||
| Relay state | Normally energised De-energises at tripping | |||
| Contact arrangement | 1 changeover SPDT | |||
| Rated operational voltage AC (IEC) | VAC | 250 | ||
| Maximum switching voltage | VAC | 400 | ||
| IEC Conventional free air thermal current Ith | A | 8 | ||
| UL/CSA and IEC/EN 60947-5-1 designation | B300 | |||
| Electrical life (with rated load) | cycles | 100000 | ||
| Mechanical life | cycles | 30000000 | ||
| Indications | ||||
| Indication | 1 green LED for power and 5 red LEDs for tripping | |||
| Connections | ||||
| Terminals type | Screw | |||
| Tightening torque for terminals | ||||
| max | Nm | 0.8 | ||
| max | Ibin | 7 | ||
| Conductor cross section | ||||
| AWG/Kcmil | ||||
| min | AWG | 24 | ||
| Max | AWG | 12 | ||
| IEC | ||||
| min | mm² | 0.2 | ||
| Max | mm² | 4 | ||
| Insulations | ||||
| Rated insulation voltage Ui | V | 600 | ||
| Rated impulse withstand voltage Uimp | kV | 6 | ||
| Operating frequency withstand voltage | kV | 4 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -20 | ||
| max | °C | +60 | ||
| Storage temperature | ||||
| min | °C | -30 | ||
| max | °C | +80 | ||
| Housing | ||||
| Execution (n° of modules) | 2 | |||
| Material | Self-extinguishing polyamide | |||
| Mounting | 35mm DIN rail (IEC/EN 60715) | |||
| IEC degree of protection | IP40 on front; IP20 at terminals | |||
| Dimensions (W x H x D) | mm | 35.8 x 104.7 x 64.9 | ||
| Weight | g | 130 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC001438 - Voltage monitoring relay | |||
