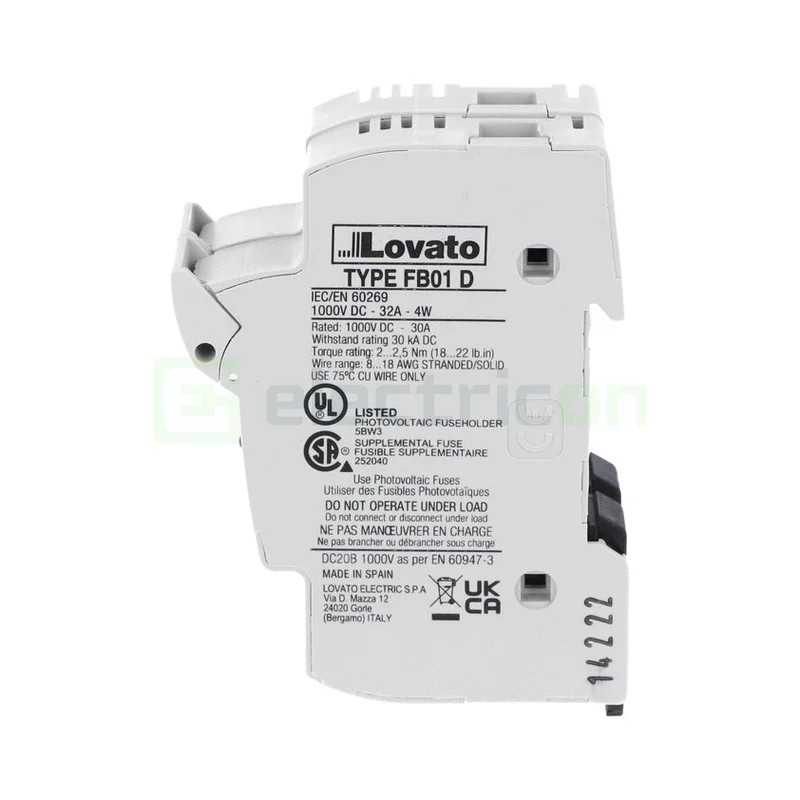

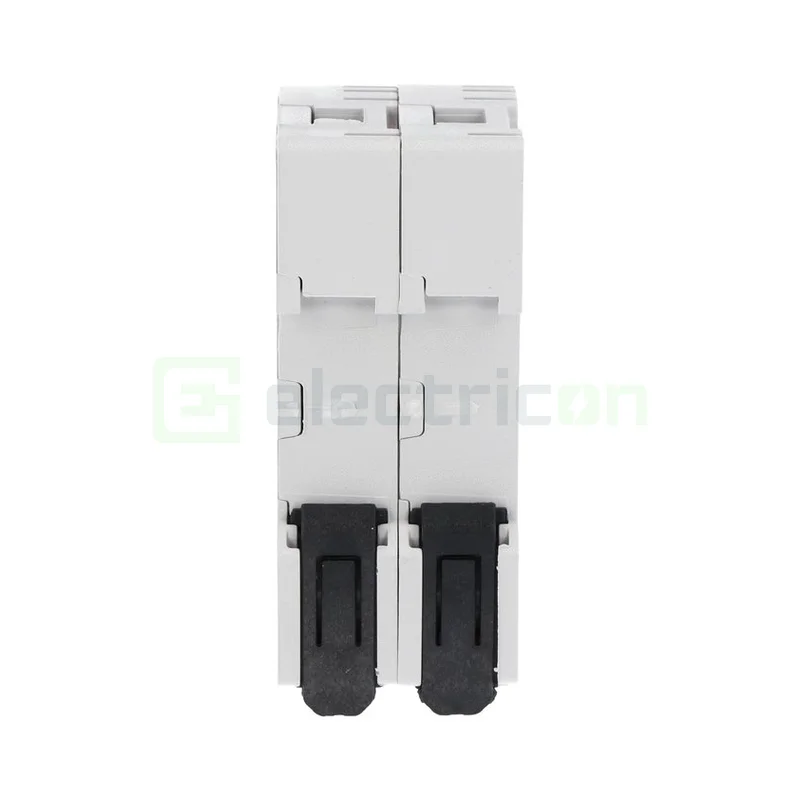

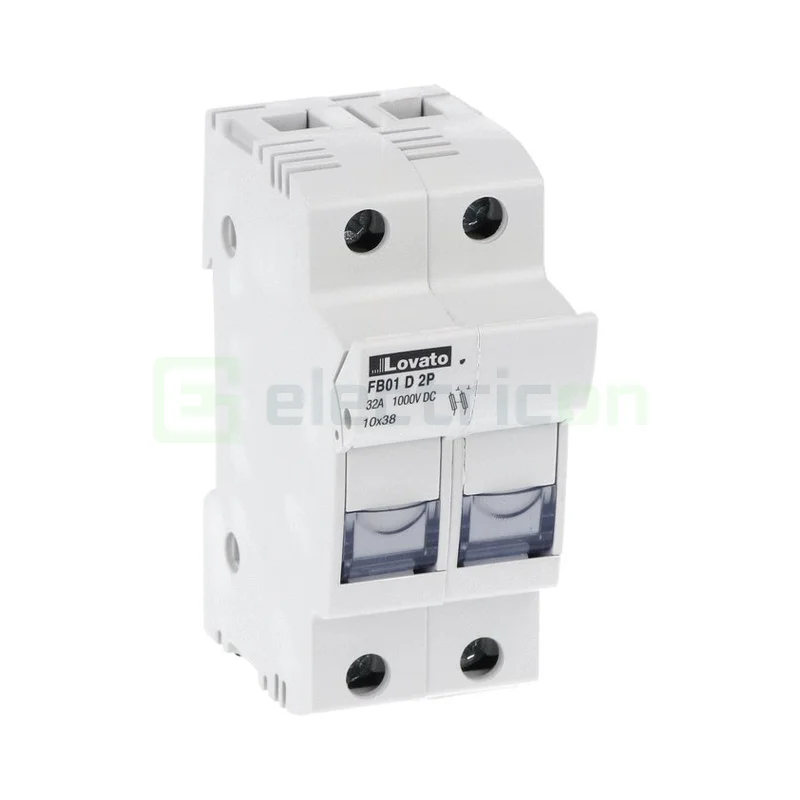

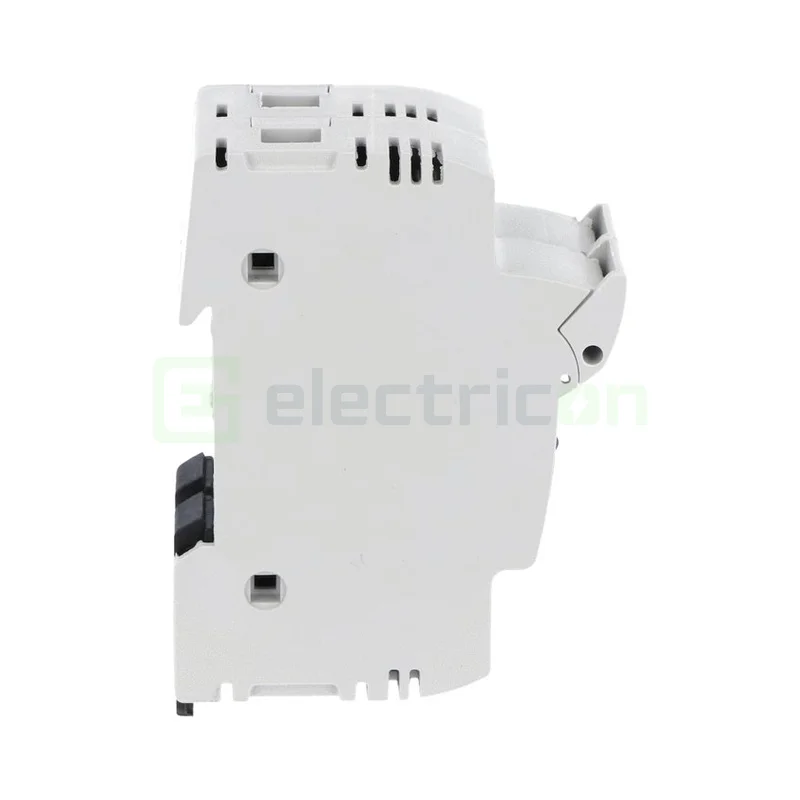

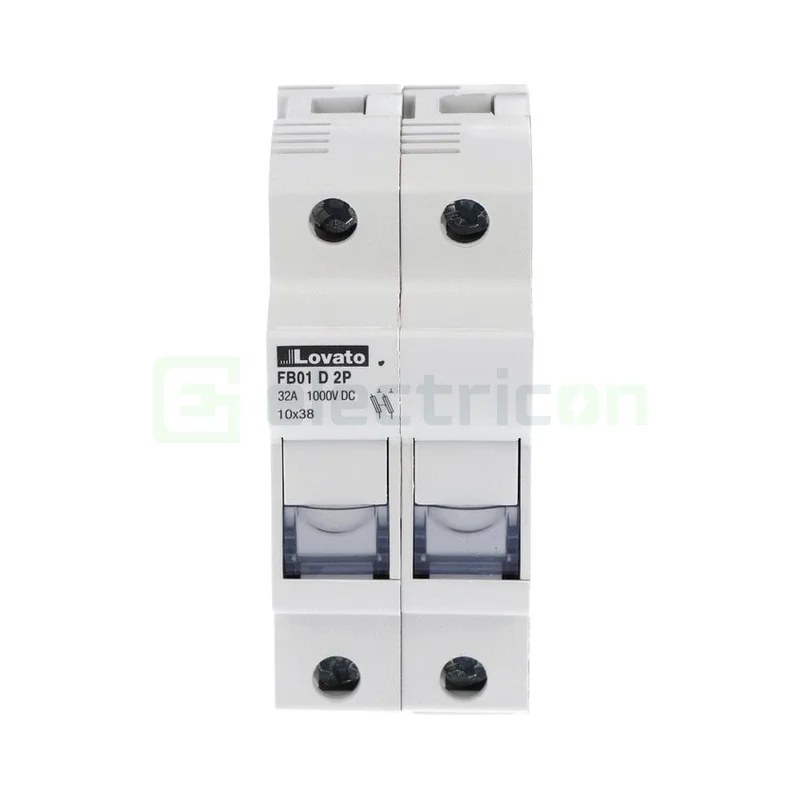

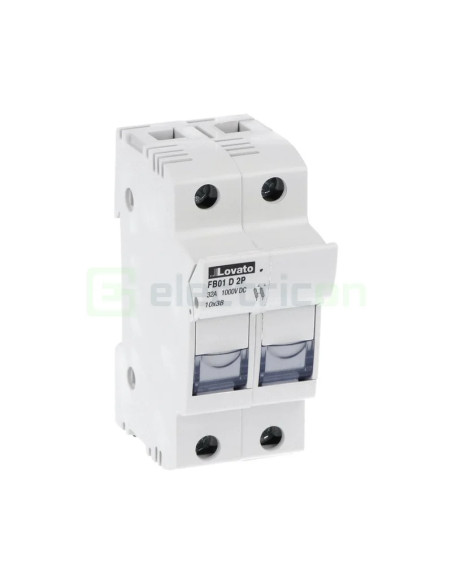

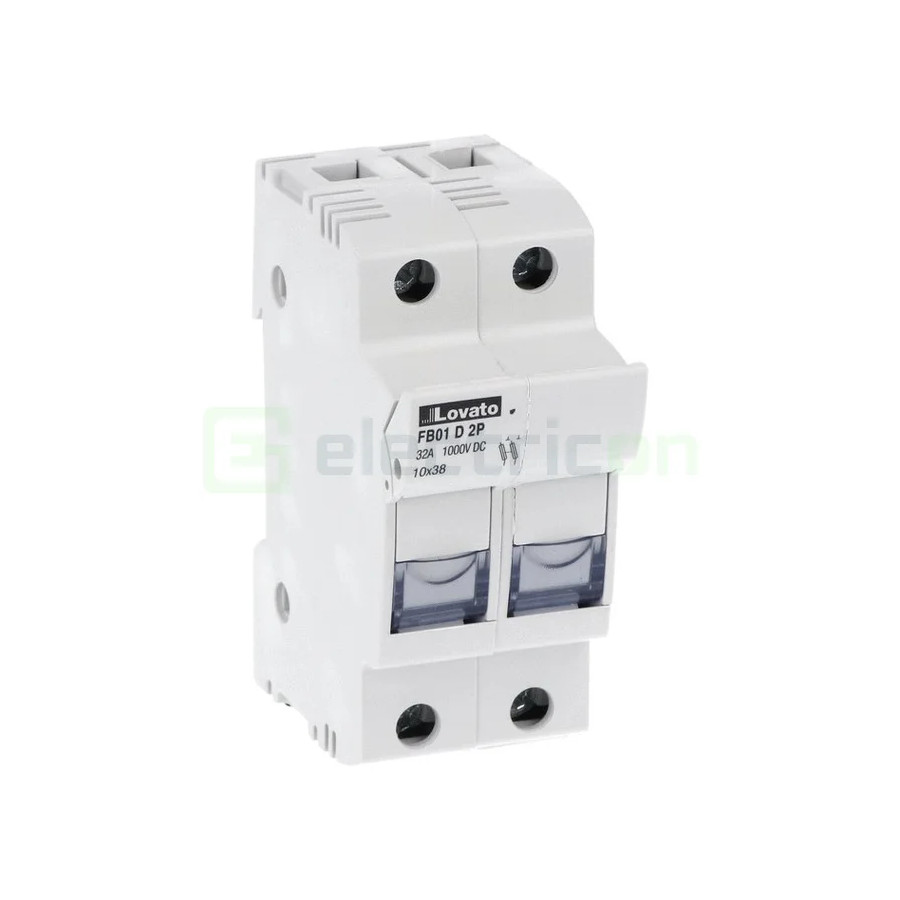

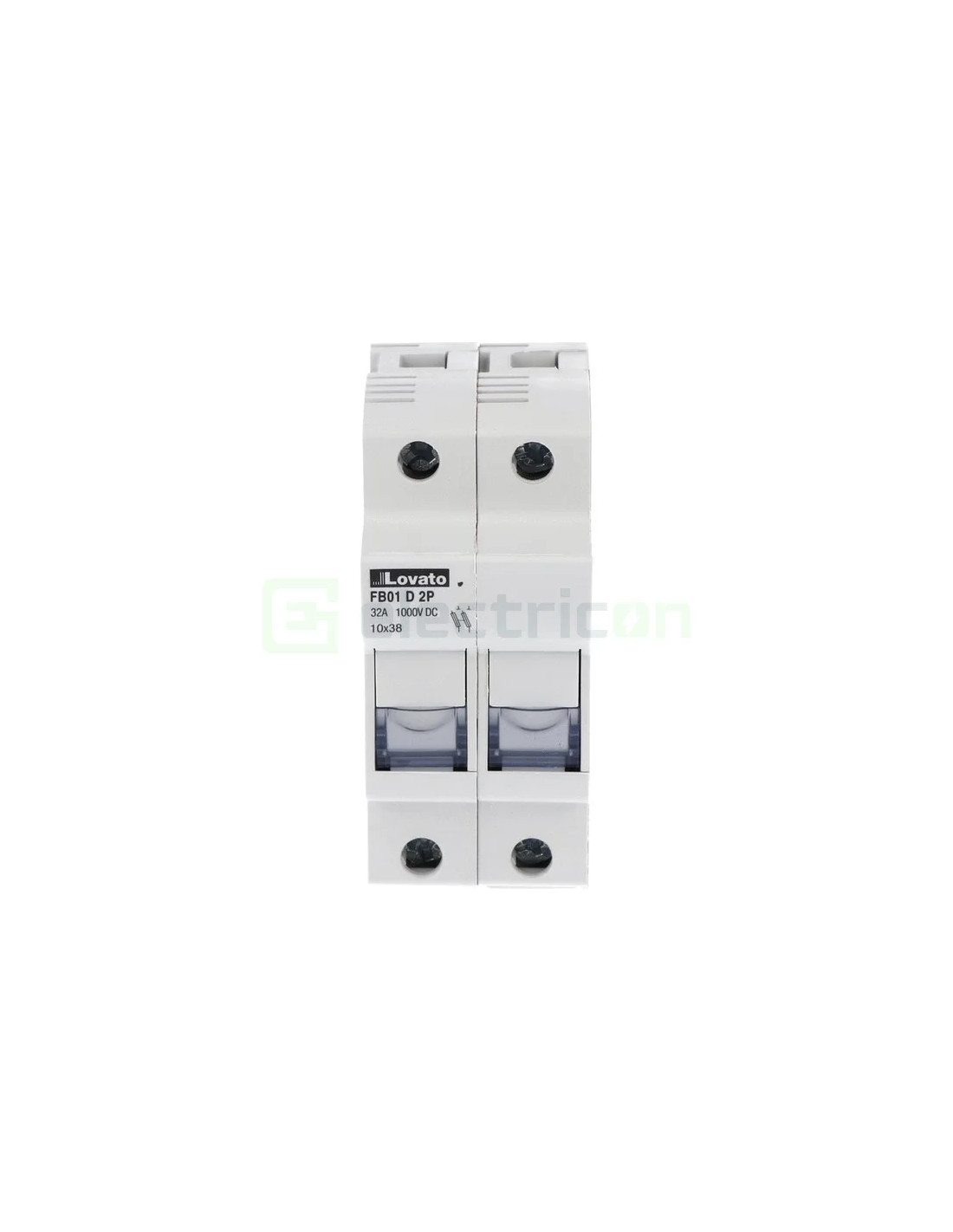

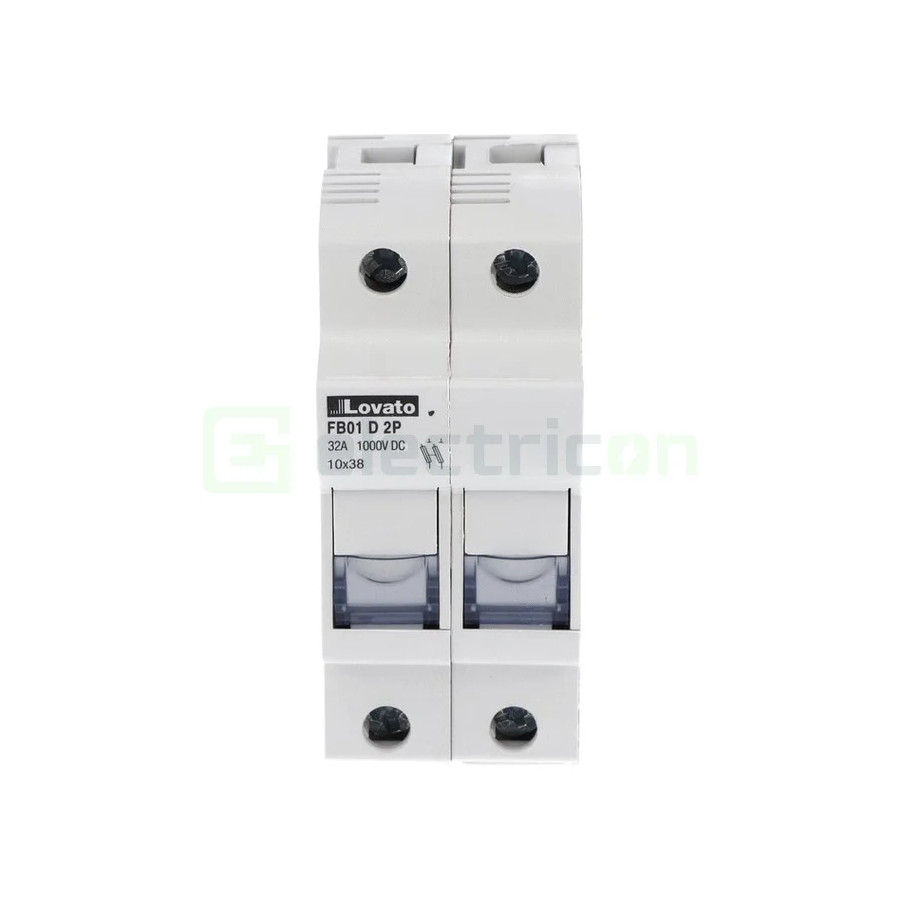

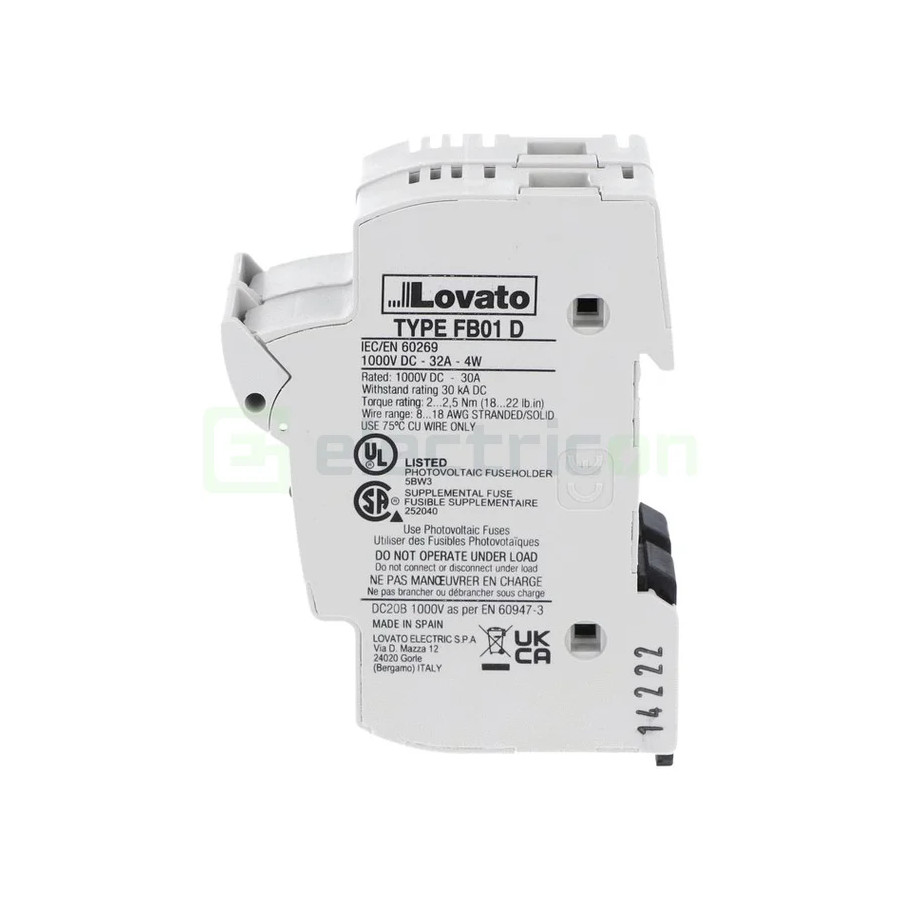

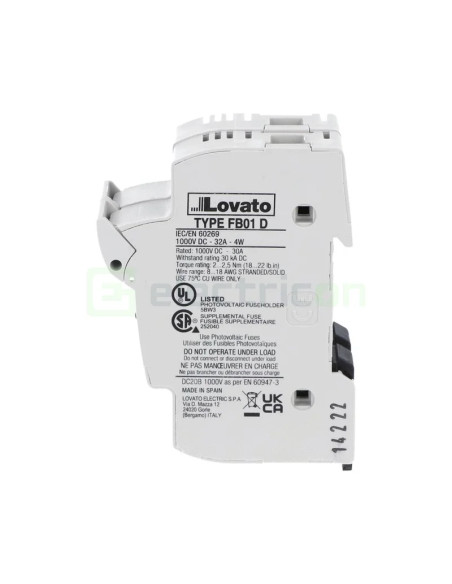

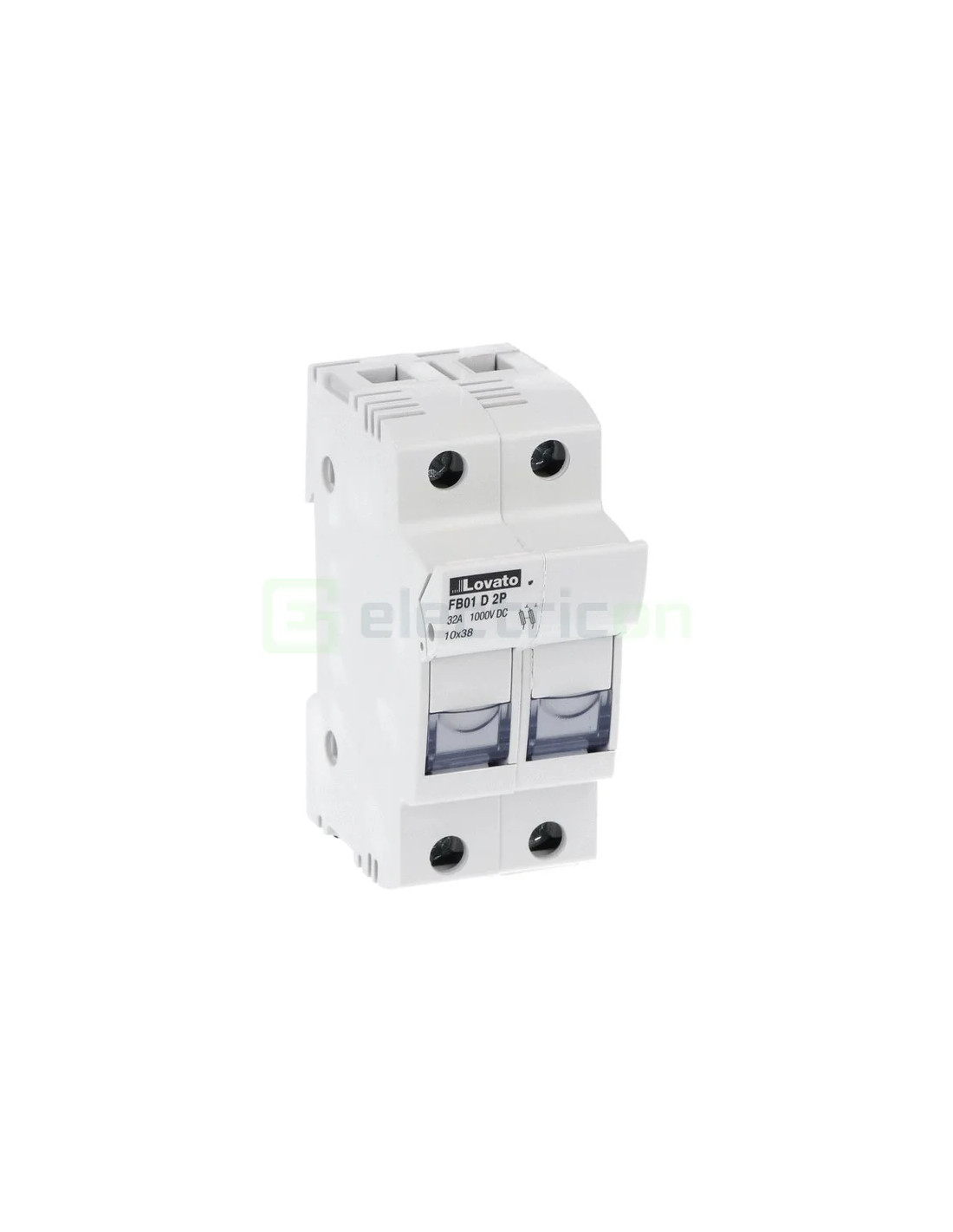

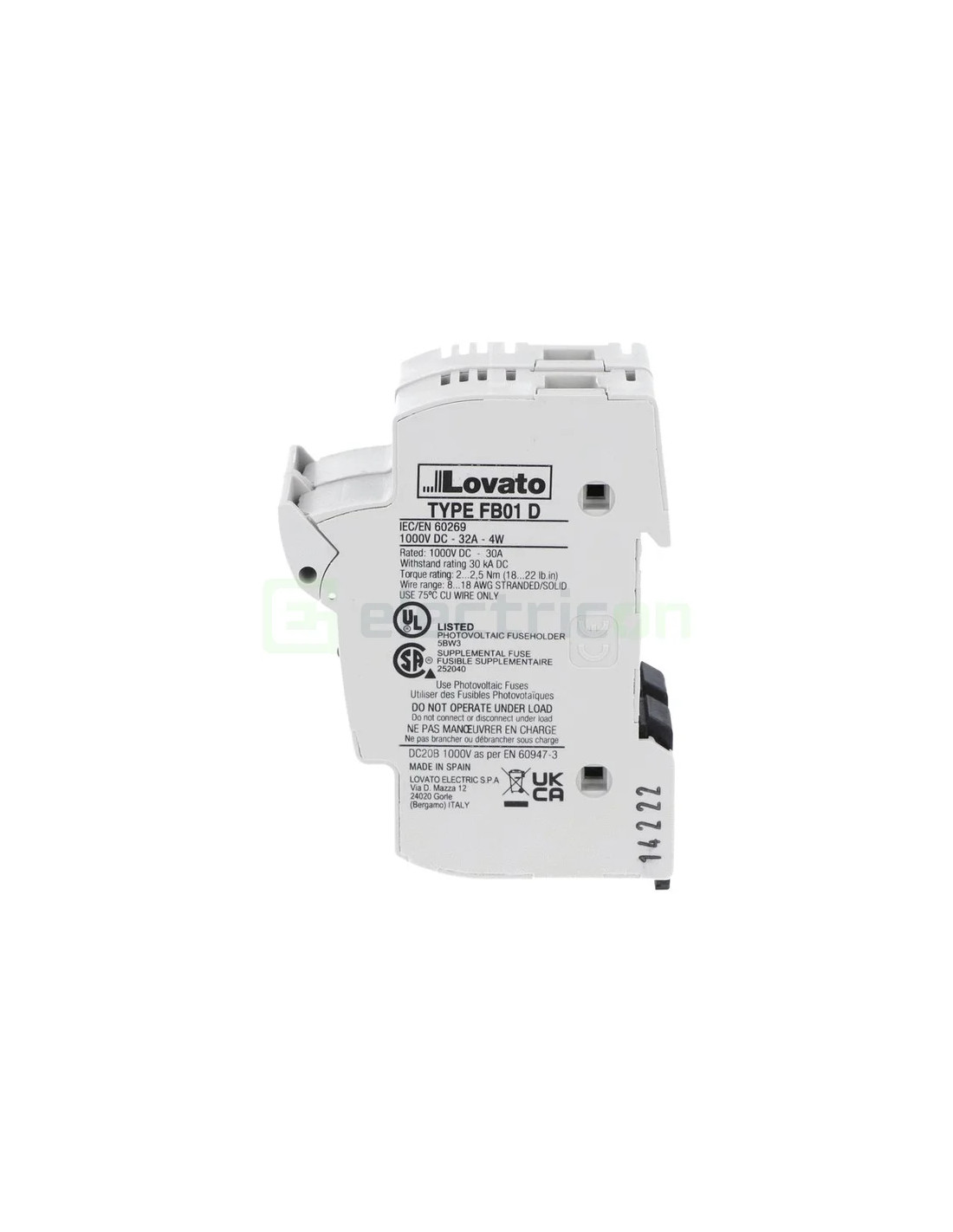

Soclu compatibil sigurante fuzibile CH10x32, 2P DC
![siguranta-pv [0]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/soclu-compatibil-sigurante-fuzibile-ch10x32-2p-dc-527376.webp "siguranta-pv [0]")
![siguranta-pv [1]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/soclu-compatibil-sigurante-fuzibile-ch10x32-2p-dc-931672.webp "siguranta-pv [1]")
![siguranta-pv [2]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/soclu-compatibil-sigurante-fuzibile-ch10x32-2p-dc-522346.webp "siguranta-pv [2]")
![siguranta-pv [3]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/soclu-compatibil-sigurante-fuzibile-ch10x32-2p-dc-127982.webp "siguranta-pv [3]")
![siguranta-pv [4]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/soclu-compatibil-sigurante-fuzibile-ch10x32-2p-dc-009800.webp "siguranta-pv [4]")
![siguranta-pv [1]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/soclu-compatibil-sigurante-fuzibile-ch10x32-2p-dc-527376.webp "siguranta-pv [1]")
![siguranta-pv [2]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/soclu-compatibil-sigurante-fuzibile-ch10x32-2p-dc-931672.webp "siguranta-pv [2]")
![siguranta-pv [3]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/soclu-compatibil-sigurante-fuzibile-ch10x32-2p-dc-522346.webp "siguranta-pv [3]")
![siguranta-pv [4]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/soclu-compatibil-sigurante-fuzibile-ch10x32-2p-dc-127982.webp "siguranta-pv [4]")
![siguranta-pv [5]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/soclu-compatibil-sigurante-fuzibile-ch10x32-2p-dc-009800.webp "siguranta-pv [5]")
Economisesti: 5,16 RON
FB01D2P
Data estimata de livrare: Marti, 03.02.2026
Cod Produs:
FB01D2P
Ai nevoie de ajutor?
0773393640
/
0772245110
- Descriere
- Caracteristici
- Review-uri (0)
SOCLU PENTRU SIGURANTE FUZIBILE DC CH10X32 LOVATO ELECTRIC
Link Producator
https://www.lovatoelectric.ro/FB01D2P/FB01D2P/snp
Certificari:
UL
EAC
Conformitate:
IEC/EN 60269-1
IEC/EN 60269-2
IEC/EN 60947-1
IEC/EN 60947-3
UL 4248-1
UL 4248-18
CSA C22.2 n° 4248.1
CSA C22.2 n° 4248.18
Informatii conformitate produs
Link Producator
https://www.lovatoelectric.ro/FB01D2P/FB01D2P/snp
| Cod de comanda | FB01D2P |
| Greutate [g] | 127 |
| Cantitate in ambalaj | 6 |
| Cantitate multipla de ambalaje per comanda | 6 |
| Dimensiune ambalaj | 227X085X065 |
| Volume [cm³] | 209.029 |
| Cod de bare [EAN13] | 8013975186527 |
| Cod HS | 85389099 |
Certificari:
UL
EAC
Conformitate:
IEC/EN 60269-1
IEC/EN 60269-2
IEC/EN 60947-1
IEC/EN 60947-3
UL 4248-1
UL 4248-18
CSA C22.2 n° 4248.1
CSA C22.2 n° 4248.18
| Product designation | Fuse holder | |||
| Product type designation | FB | |||
| Number of DIN modules | 2 | |||
| Operating voltage type | DC | |||
| Electrical features | ||||
| IEC maximum rated current (In) | A | 32 | ||
| IEC maximum rated voltage (Un) | V | 1000 | ||
| IEC Utilization category | DC20B 1000VDC | |||
| Derating factor of rated current In for different ambient temperature | ||||
| 20°C | 1 | |||
| 30°C | 0.95 | |||
| 40°C | 0.9 | |||
| 50°C | 0.8 | |||
| 60°C | 0.7 | |||
| 70°C | 0.5 | |||
| Derating factor of rated current In for side by side fuse holders (poles) | ||||
| 1-4 | 1 | |||
| 5-6 | 0.8 | |||
| 7-9 | 0.7 | |||
| ≥10 | 0.6 | |||
| Rated current (In) | A | 32 | ||
| Ambient conditions | ||||
| Operating temperature | ||||
| min | °C | -20 | ||
| max | °C | +70 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +80 | ||
| Max altitude | m | 3000 | ||
| Mechanical features | ||||
| Operating position | ||||
| normal | Vertical plan | |||
| allowable | Any | |||
| Fixing | 35mm DIN rail | |||
| Tightening torque for terminals | ||||
| max | Nm | 2.5 | ||
| max | lbin | 22 | ||
| Conductor section | ||||
| Flexible max (IEC) | mm² | 16 | ||
| - Flexible max (AWG/kcmil) | 8 | |||
| Rigid max (IEC) | mm² | 16 | ||
| - Rigid max (AWG/kcmil) | 8 | |||
| Weight | g | 127 | ||
