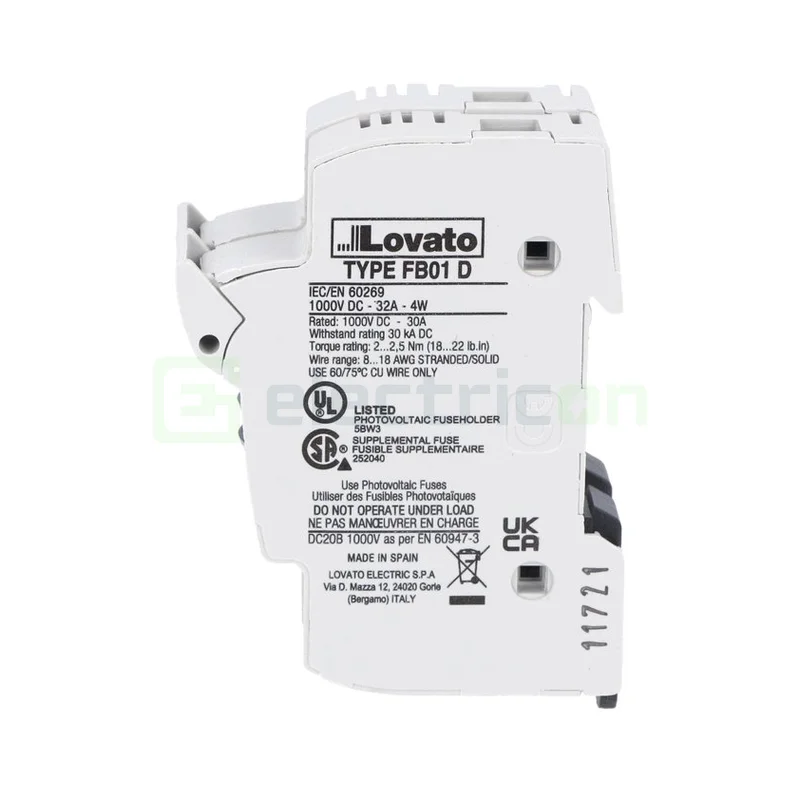

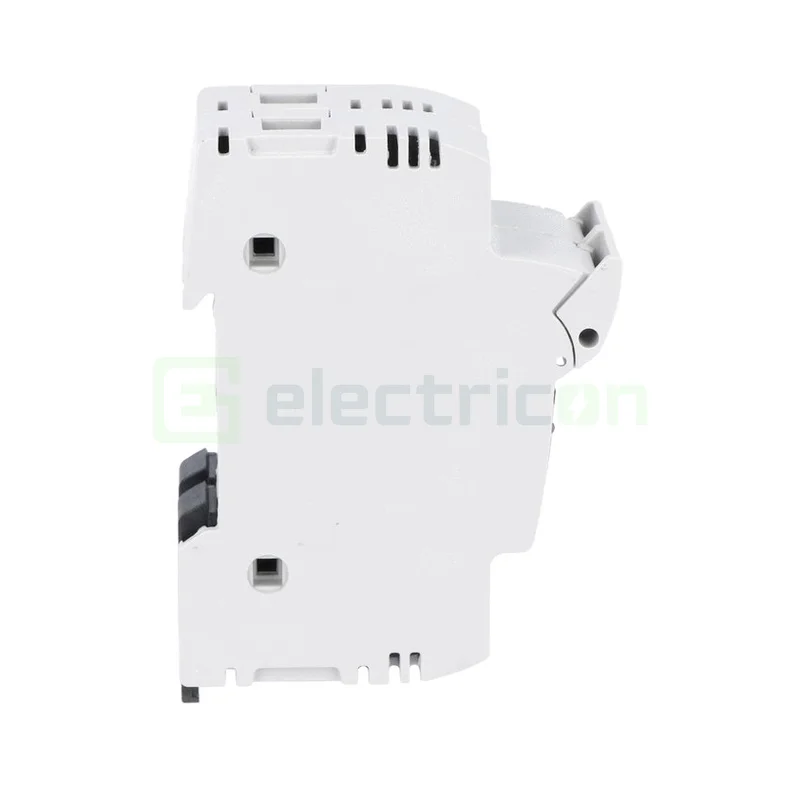

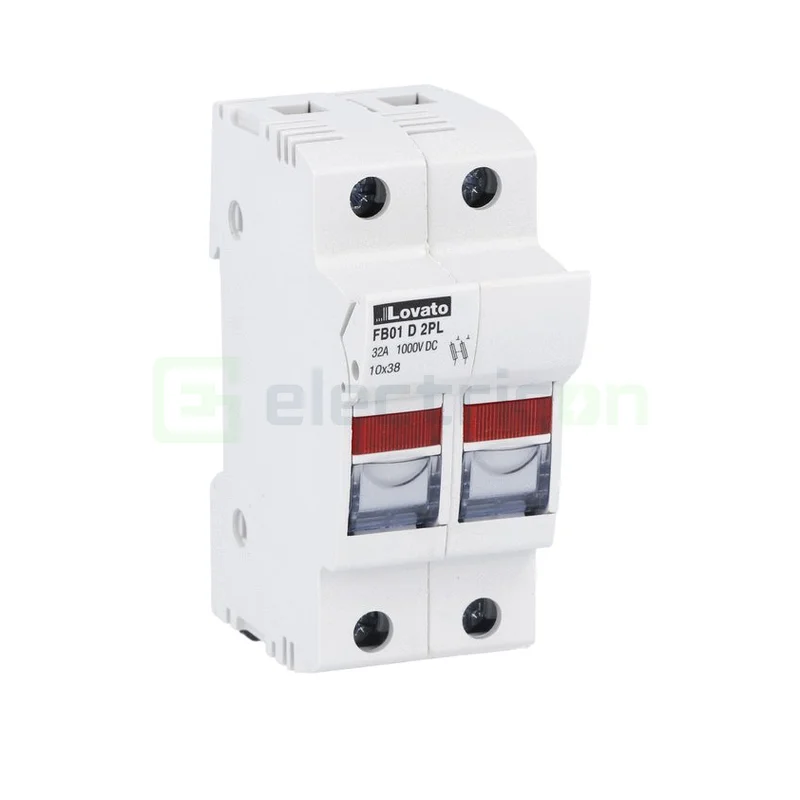

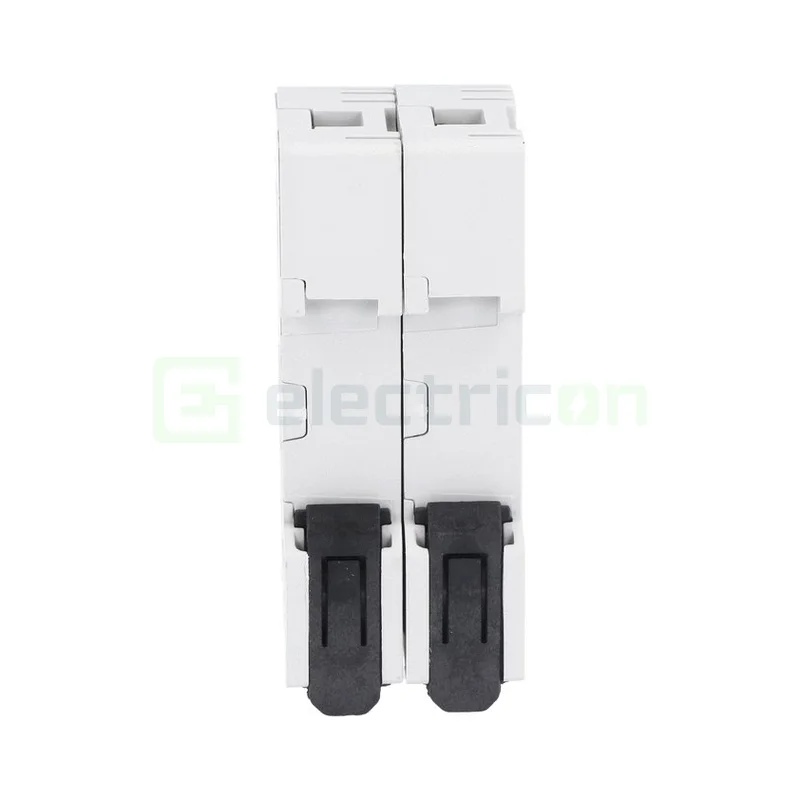

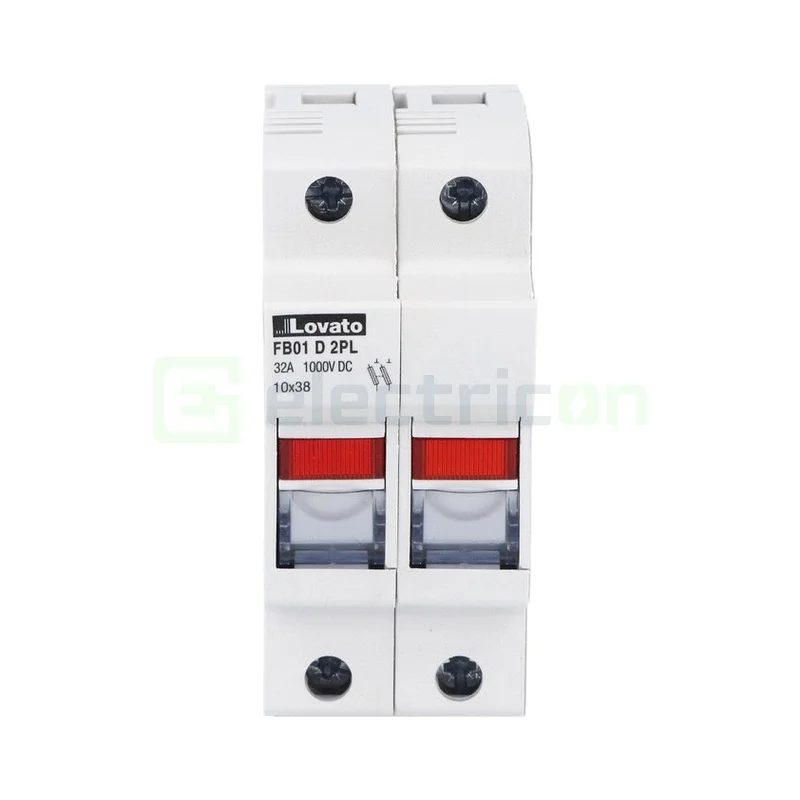

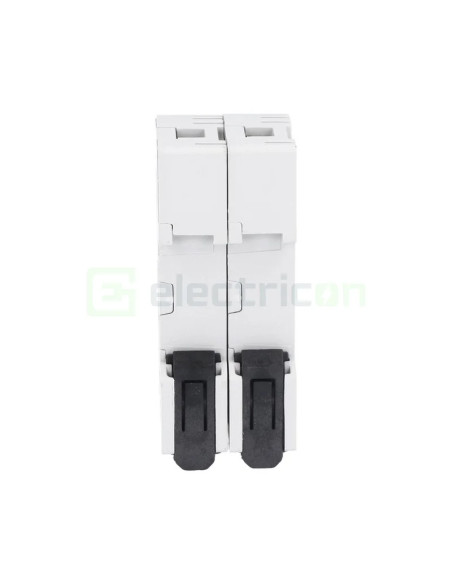

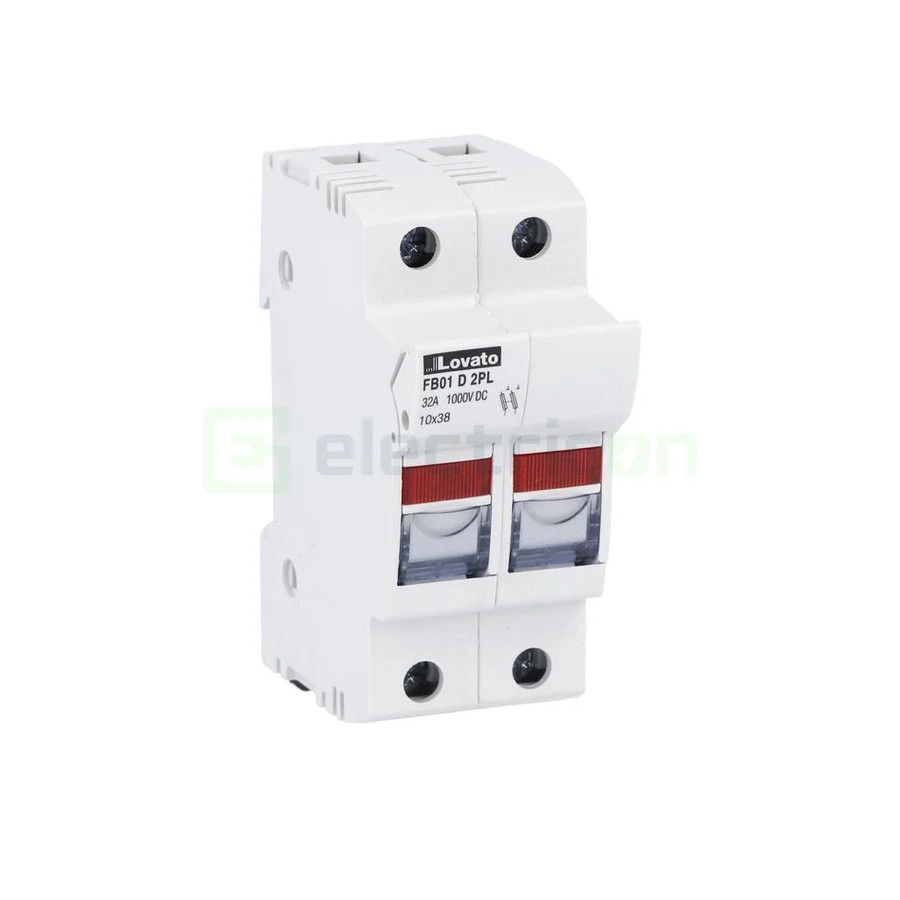

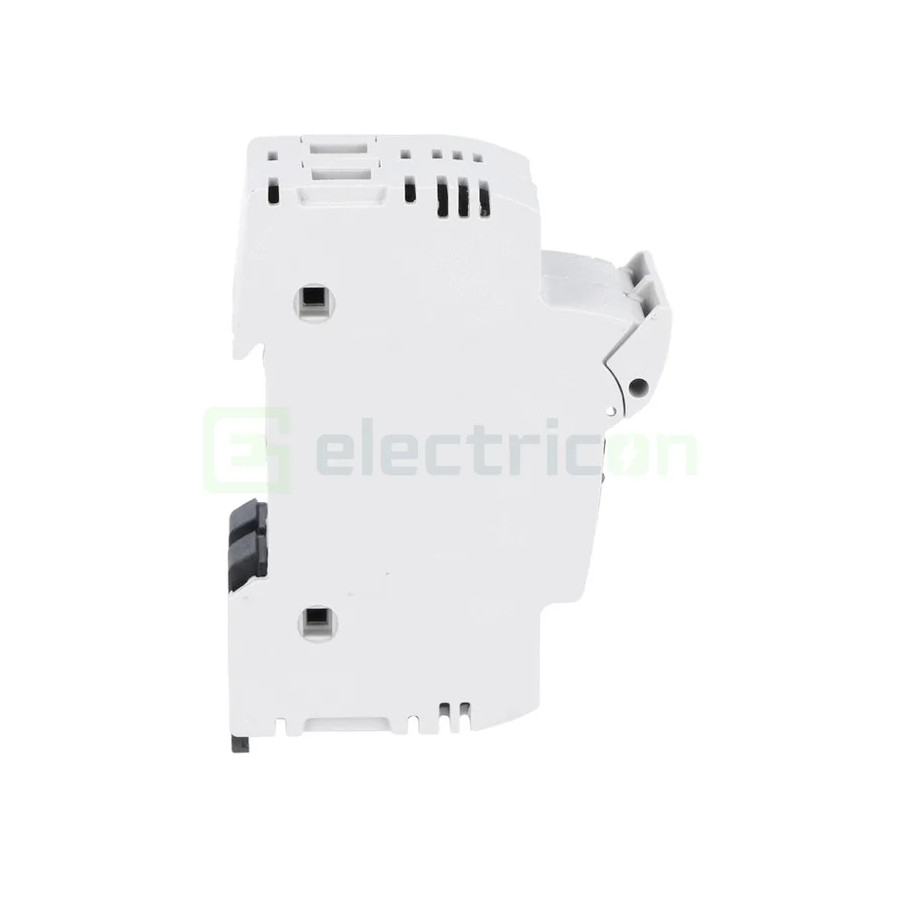

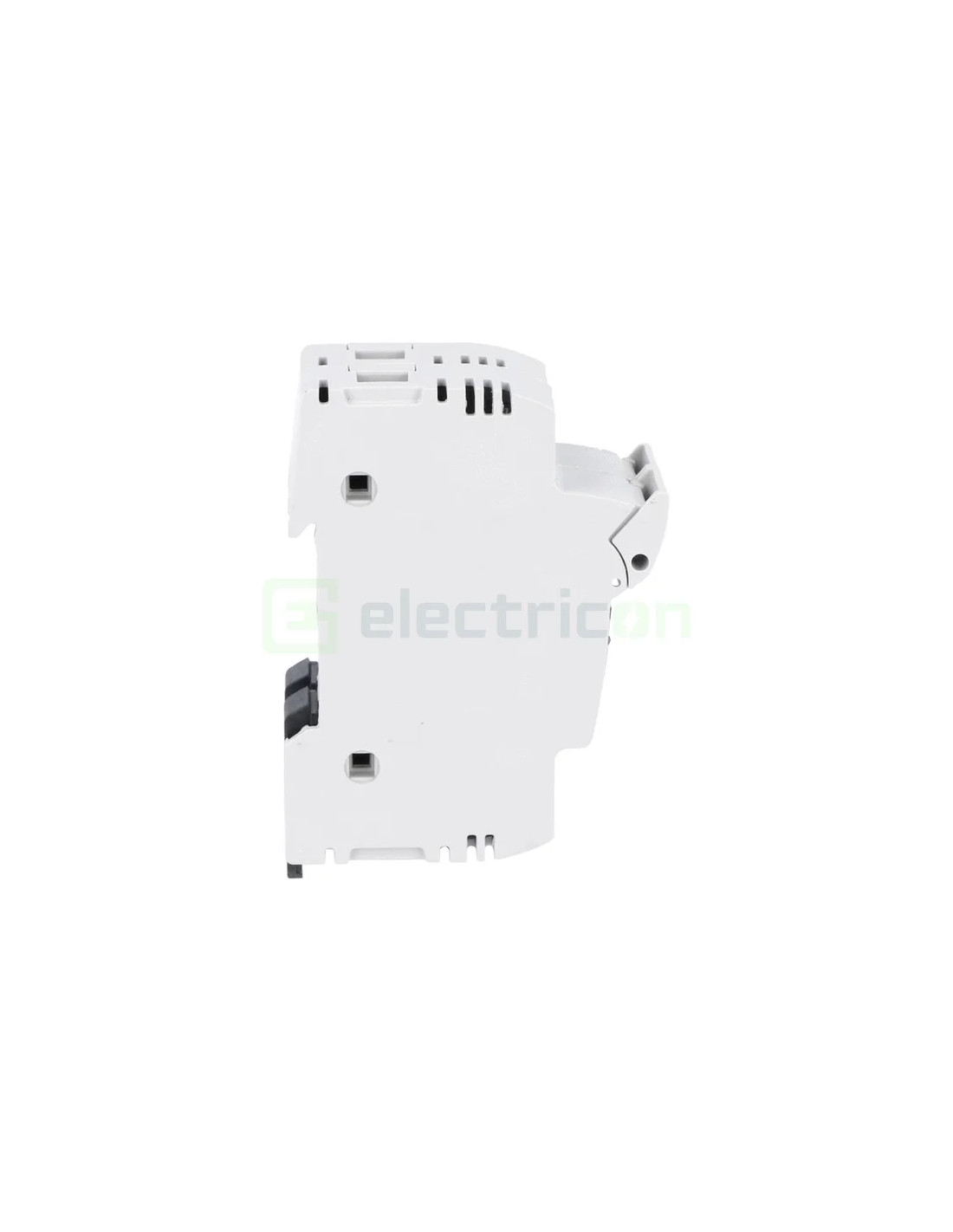

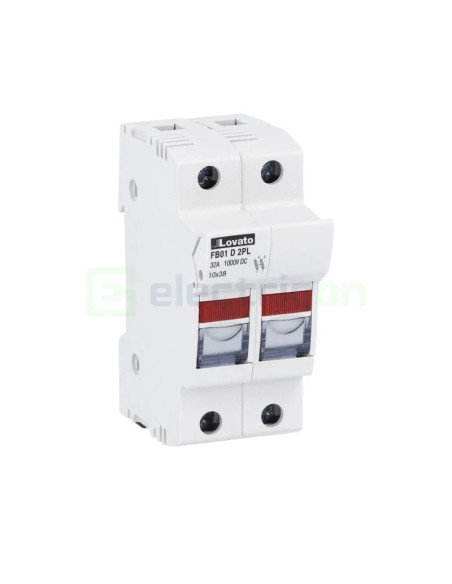

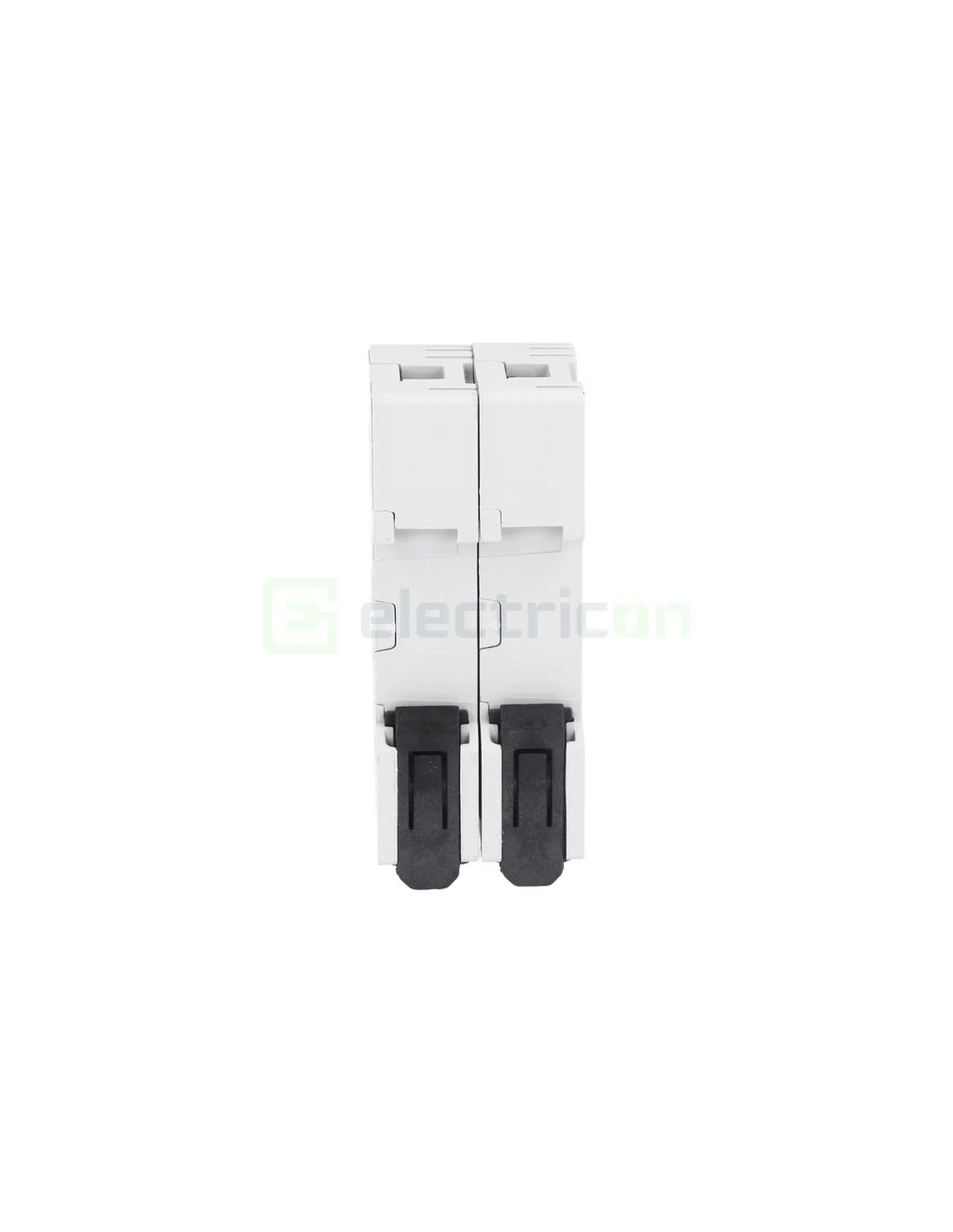

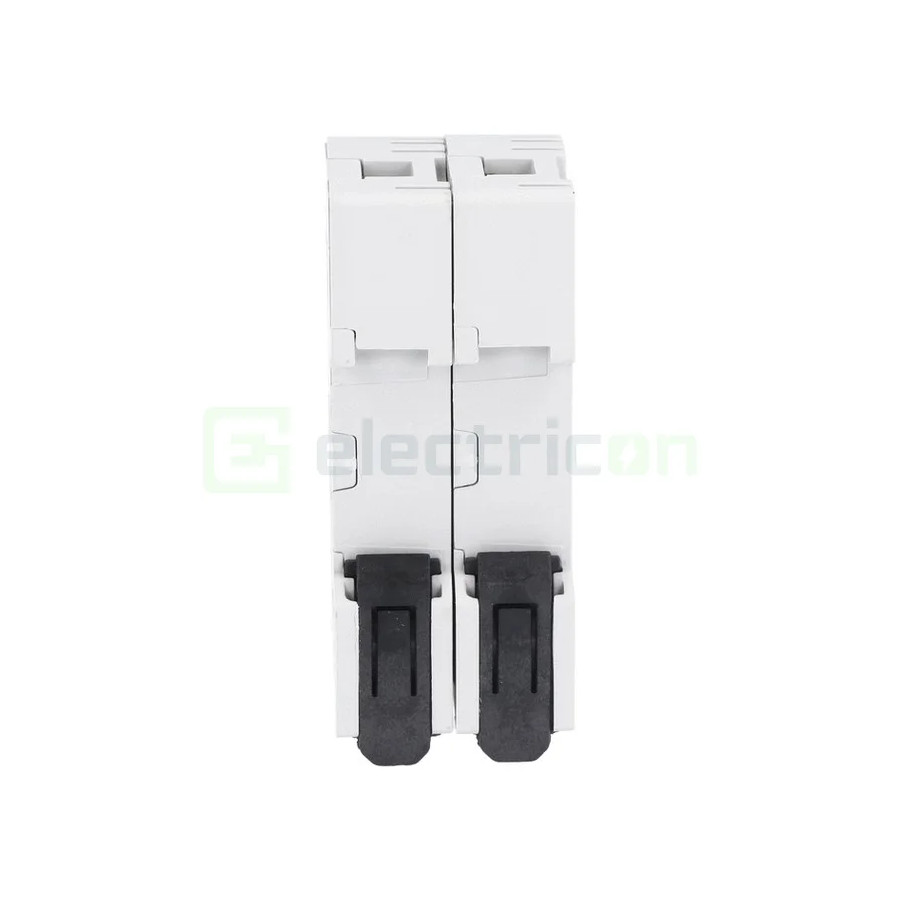

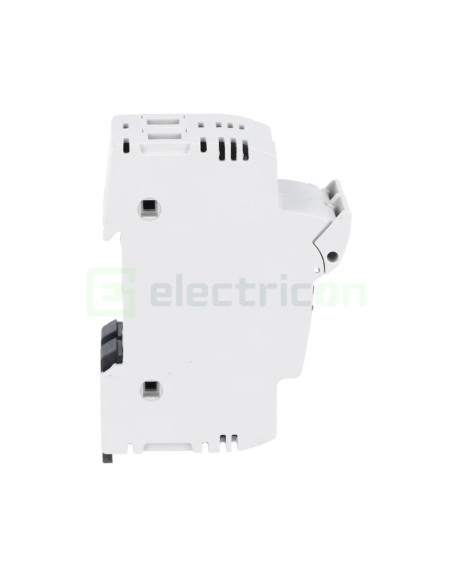

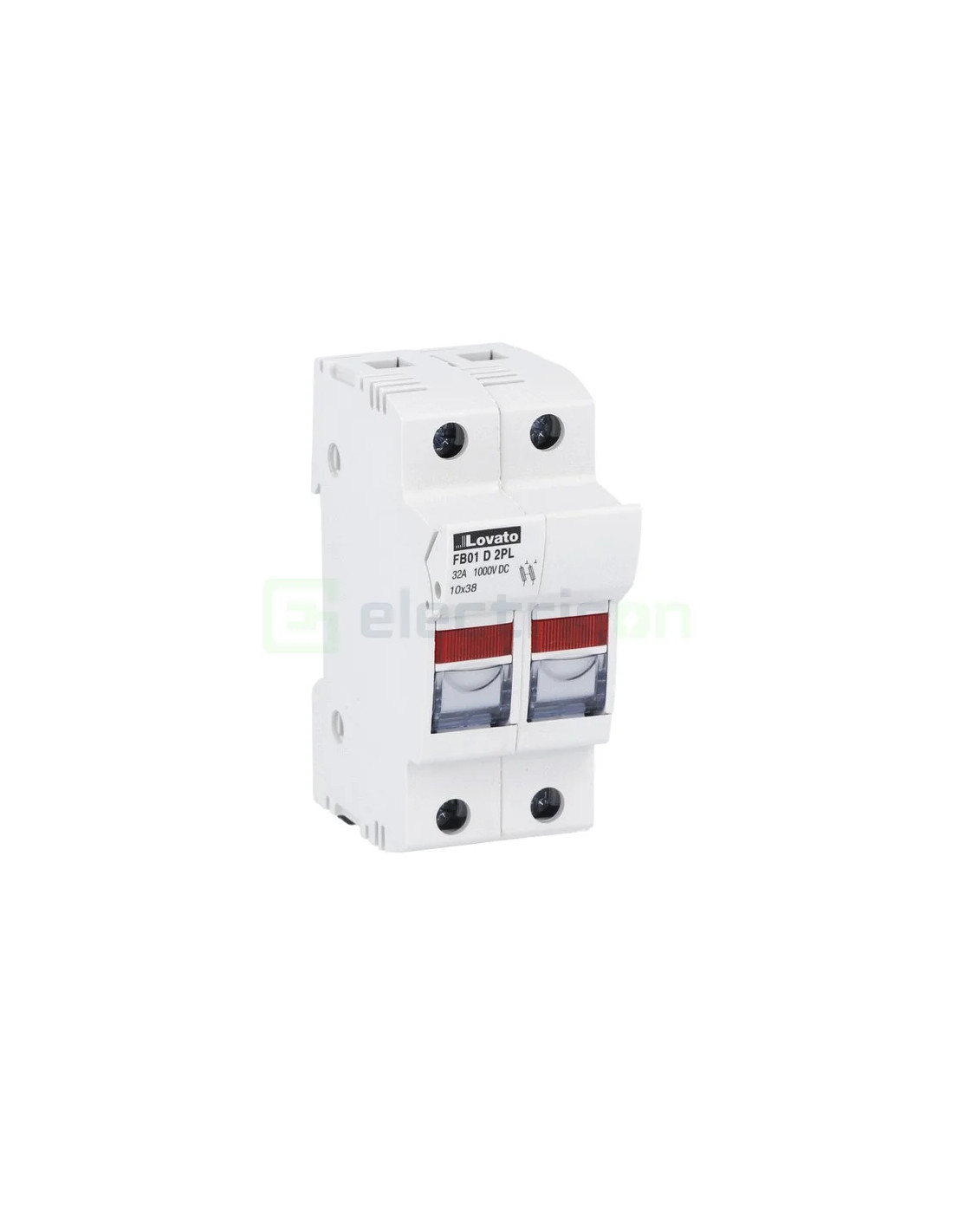

Separator portfuzibil 2P 32A 1000V DC cu LED (10.3x38) - Lovato Electric FB01D2PL
Separator portfuzibil 2P 32A 1000V DC cu LED (10.3x38) - Lovato Electric FB01D2PL
Separator portfuzibil 2P 32A 1000V DC cu LED (10.3x38) - Lovato Electric FB01D2PL
Separator portfuzibil 2P 32A 1000V DC cu LED (10.3x38) - Lovato Electric FB01D2PL
Separator portfuzibil 2P 32A 1000V DC cu LED (10.3x38) - Lovato Electric FB01D2PL
Separator portfuzibil 2P 32A 1000V DC cu LED (10.3x38) - Lovato Electric FB01D2PL

Separator portfuzibil 2P 32A 1000V DC cu LED (10.3x38) - Lovato Electric FB01D2PL

Produs în lichidare de stoc!

63,21 lei / buc
*Include TVA
In stoc
schedule Expediere incepând cu urmatoarea zi lucratoare

Cod Produs: FB01D2PL

Ai nevoie de ajutor? 0773393640 - suport tehnic / 0772245110 - suport comenzi


Cere informatii
laptop Gama variata
de produse map-icon National
si european delivery Livrare
rapida network Oferte
personalizate info Info
utile handshake Partener
de incredere

Detalii Tehnice
Curent nominal
32 A
Tensiune
1000 V
Numar de poli
2P
Marime
CH 10x32
Tip curent
DC (curent continuu)
Tip
separator portfuzibil siguranțe fuzibile CH
FB01D2PL
8013975188170
Descriere






Product designation   Fuse holder
Product type designation   FB
Number of DIN modules   2
Operating voltage type   DC
Electrical features
IEC maximum rated current (In) A 32
IEC maximum rated voltage (Un) V 1000
IEC Utilization category   DC20B 1000VDC
Derating factor of rated current In for different ambient temperature
    20°C   1
    30°C   0.95
    40°C   0.9
    50°C   0.8
    60°C   0.7
    70°C   0.5
Derating factor of rated current In for side by side fuse holders (poles)
    1-4   1
    5-6   0.8
    7-9   0.7
    ≥10   0.6
Rated current (In) A 32
Ambient conditions
Operating temperature
    min °C -20
    max °C +70
Storage temperature
    min °C -40
    max °C +80
Max altitude m 3000
Mechanical features
Operating position
    normal   Vertical plan
    allowable   Any
Fixing   35mm DIN rail
Tightening torque for terminals
    max Nm 2.5
    max Ibin 22
Conductor section
    Flexible max (IEC) mm² 16
    - Flexible max (AWG/kcmil)   8
    Rigid max (IEC) mm² 16
    - Rigid max (AWG/kcmil)   8
Weight g 130
Resistance & Protection
Frontal IP degree   IP20
ETIM classification
ETIM 8.0   EC002705 - Holder for cylindrical fuse


Dimensiuni

Schema de conectare

Brosuri
Document Icon Product and solutions for photovoltaic applications
PD075 iunie 2021
Citește mai departe

Fișă tehnică FB01D2PL

153.33KB Descarcă
