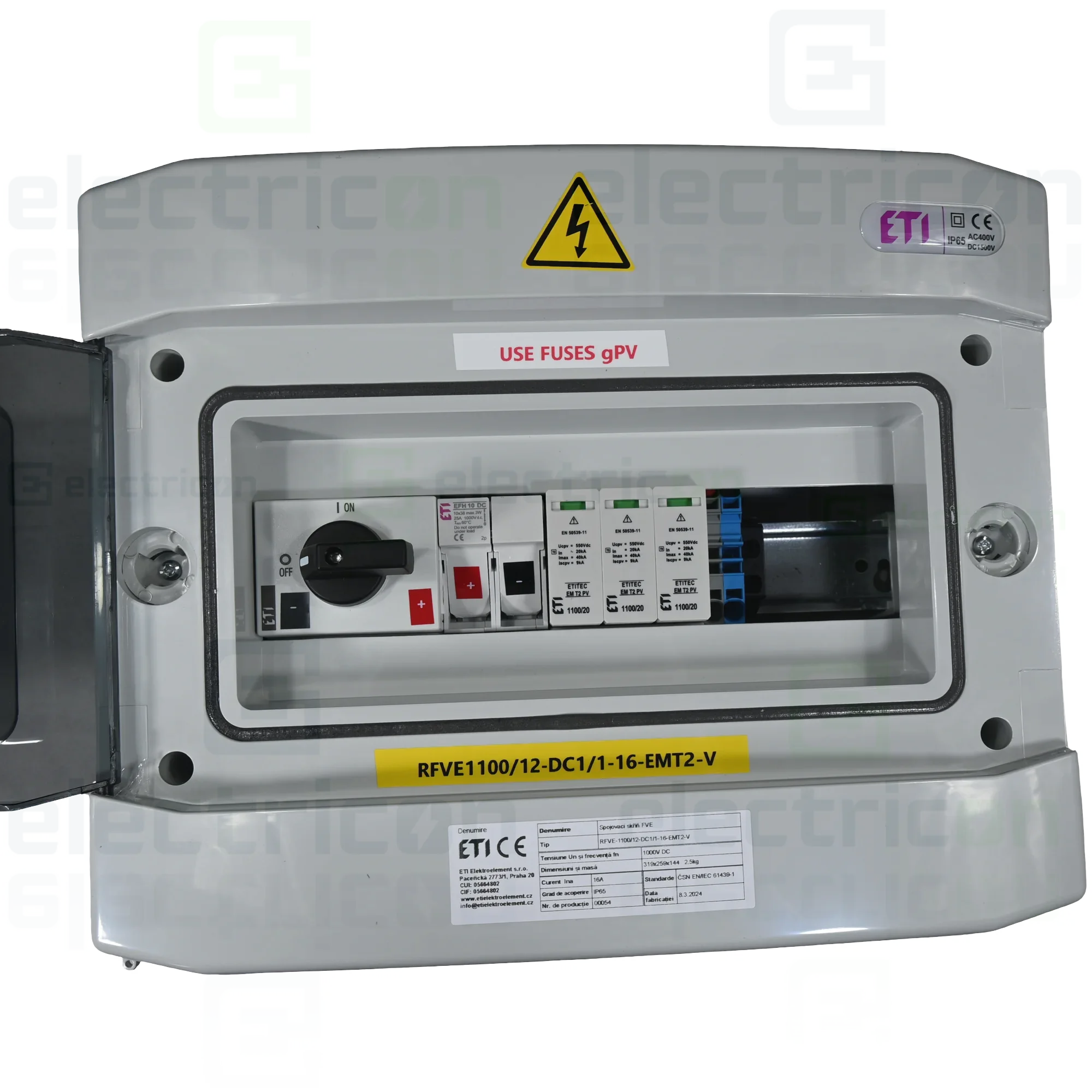

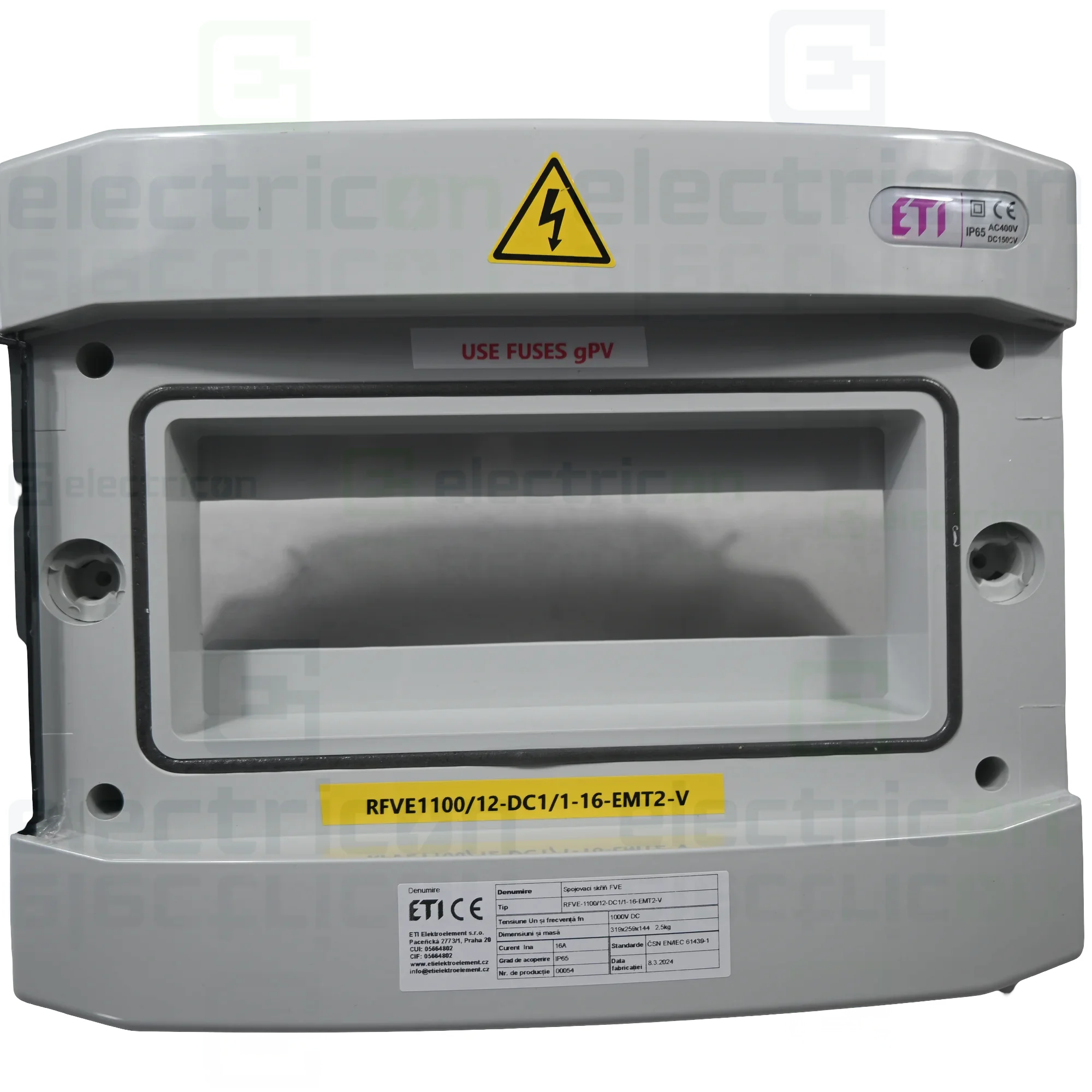

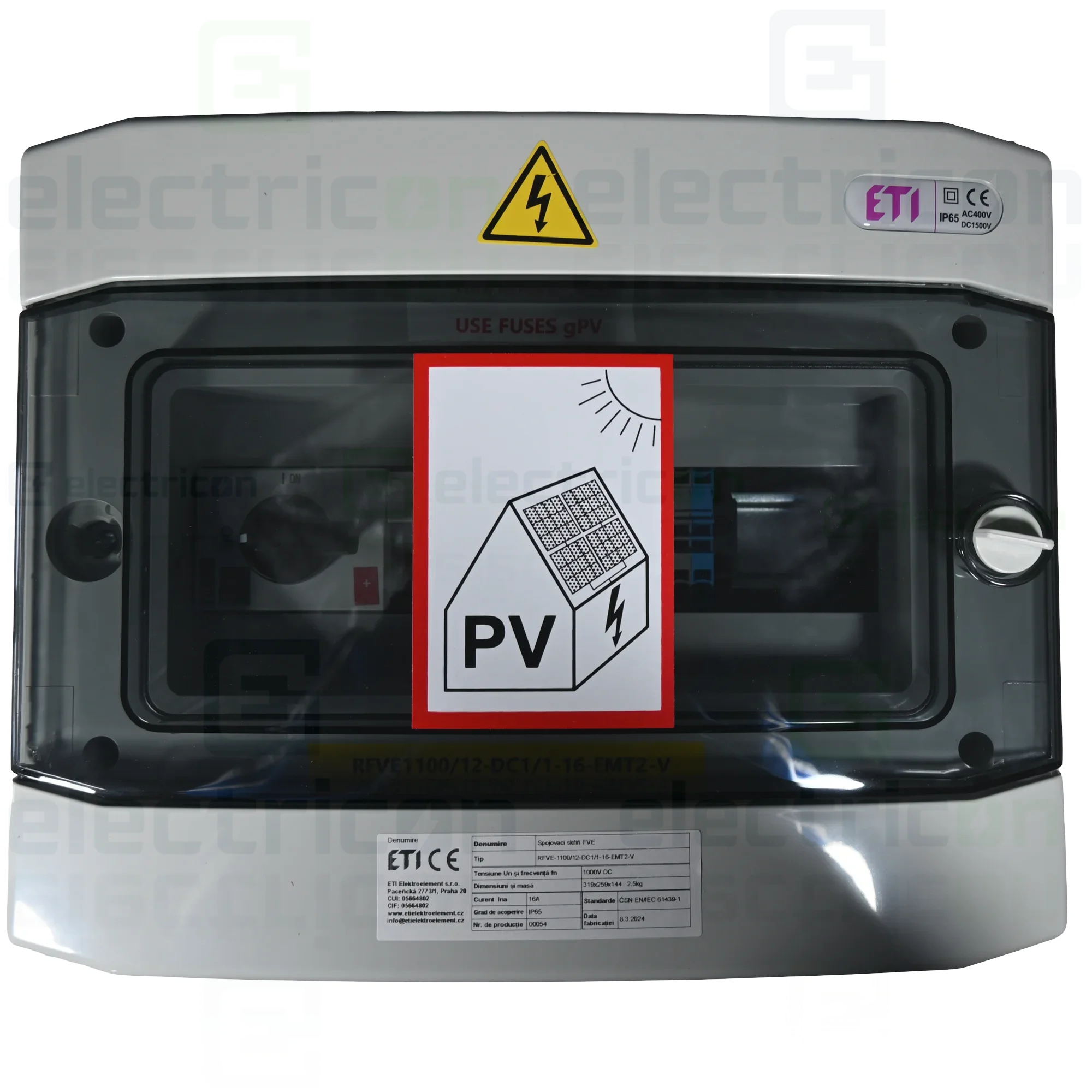

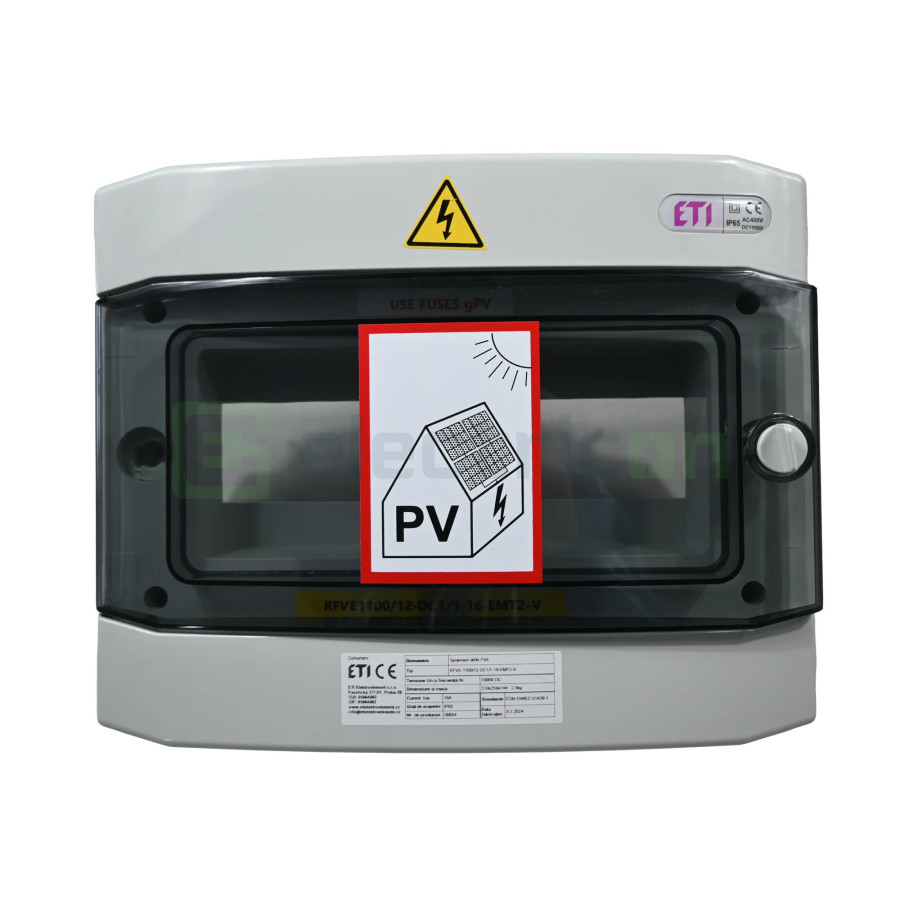

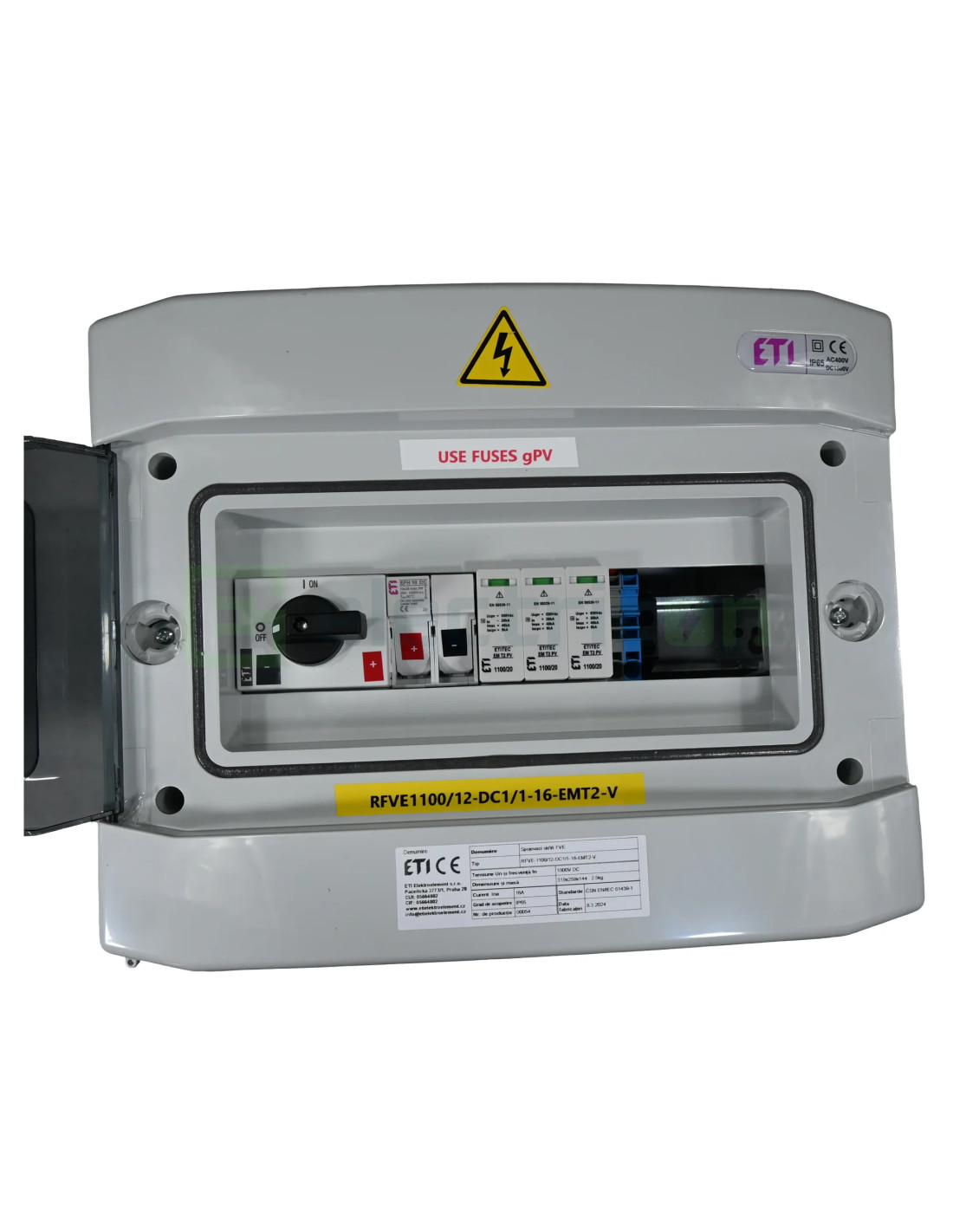

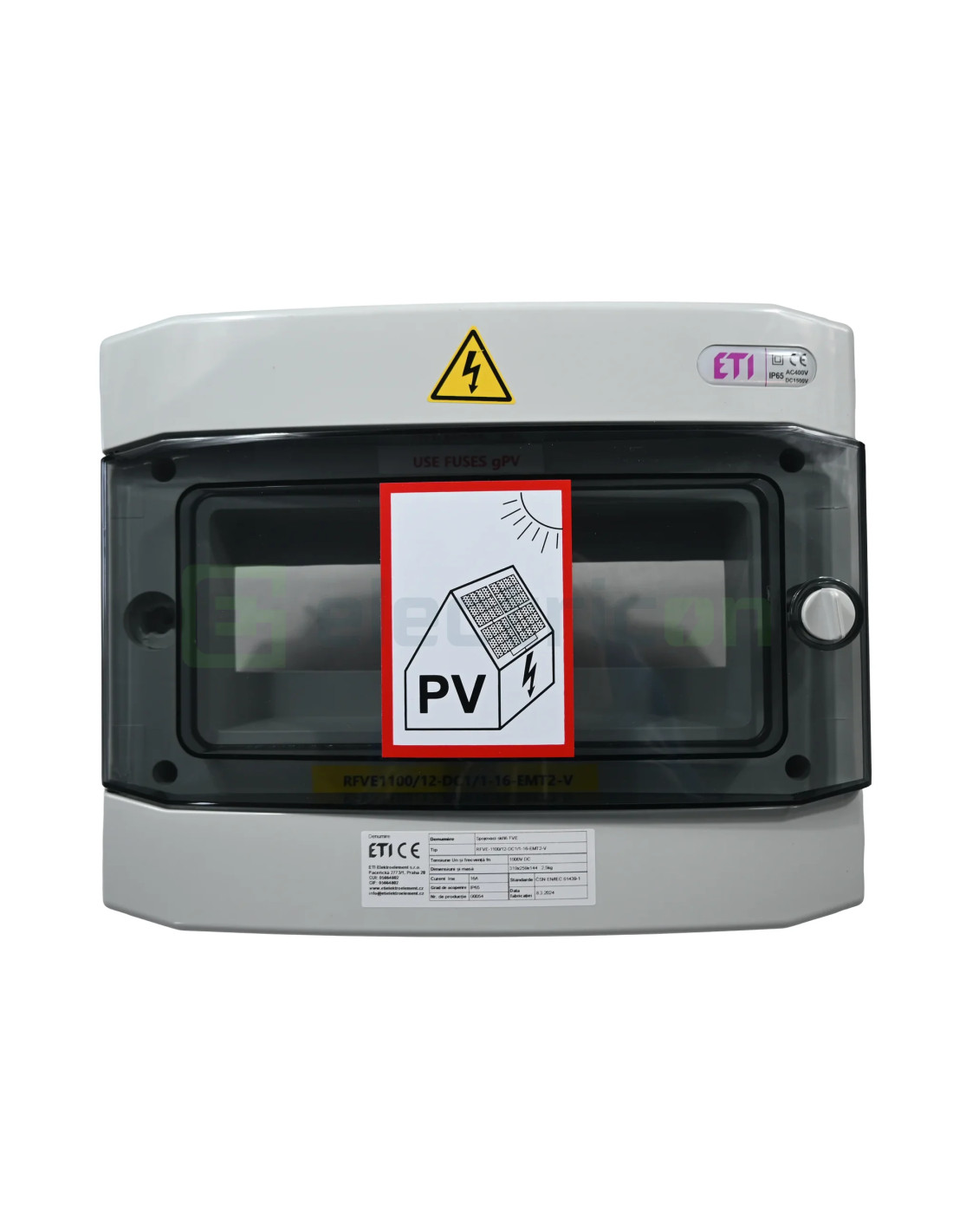

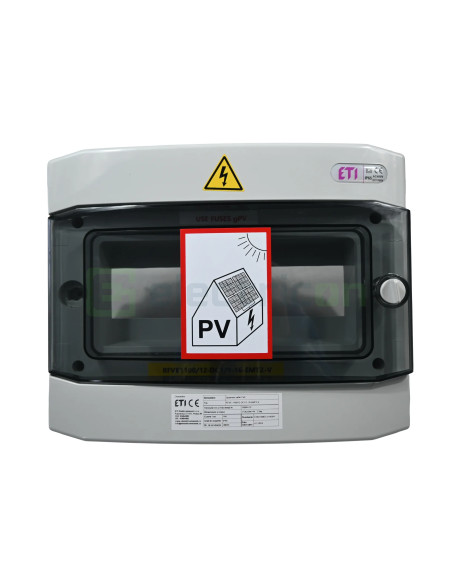

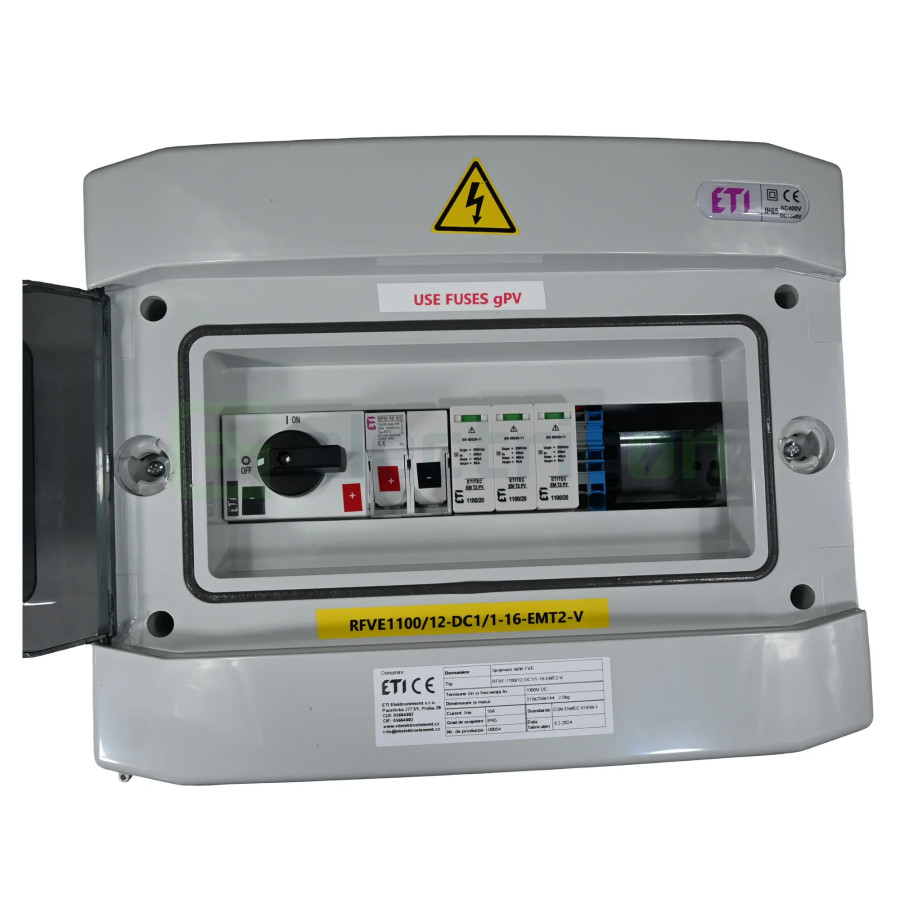

Tablou distributie PV 1100/12-DC1/1-16-EMT2-V, cu 1 string, ETI, 001107099
![C18035 [1]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-956281.webp "C18035 [1]")
![C18035 [2]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-022811.webp "C18035 [2]")
![C18035 [3]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-726823.webp "C18035 [3]")
![C18035 [4]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-701947.webp "C18035 [4]")
![C18035 [5]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-619976.webp "C18035 [5]")
![C18035 [6]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-940785.webp "C18035 [6]")
![C18035 [7]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-437327.webp "C18035 [7]")
![C18035 [8]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-308086.webp "C18035 [8]")
![C18035 [9]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-195583.webp "C18035 [9]")
![C18035 [10]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-216003.webp "C18035 [10]")
![C18035 [11]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-908926.webp "C18035 [11]")
![C18035 [12]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-177352.webp "C18035 [12]")
![C18035 [13]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-565472.webp "C18035 [13]")
![C18035 [0]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-956281.webp "C18035 [0]")
![C18035 [1]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-022811.webp "C18035 [1]")
![C18035 [2]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-726823.webp "C18035 [2]")
![C18035 [3]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-701947.webp "C18035 [3]")
![C18035 [4]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-619976.webp "C18035 [4]")
![C18035 [5]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-940785.webp "C18035 [5]")
![C18035 [6]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-437327.webp "C18035 [6]")
![C18035 [7]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-308086.webp "C18035 [7]")
![C18035 [8]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-195583.webp "C18035 [8]")
![C18035 [9]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-216003.webp "C18035 [9]")
![C18035 [10]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-908926.webp "C18035 [10]")
![C18035 [11]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-177352.webp "C18035 [11]")
![C18035 [12]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-distributie-pv-1100-12-dc1-1-16-emt2-v-cu-1-string-eti-001107099-565472.webp "C18035 [12]")
001107099
Include:
1x Bara NUL+PE
Include:
1x Bara NUL+PE
Data estimata de livrare: maine, 09.12.2025
Cod Produs:
001107099
Ai nevoie de ajutor?
0773393640
/
0772245110
- Descriere
- Caracteristici
- Review-uri (0)
ETI 001107099
| Cod |
001107099 |
|---|---|
| Descriere | Tablou distributie PV 1100/12DC/1-16-EMT2-V |
| Nivel | Tablouri pentru fotovoltaice |
| Tensiune nominală | 1000 V DC |
| Tensiune nominală de rezistență la impulsuri Uimp | 4 kV |
| Greutate | 2,5 kg |
| Grad de protecție IP | IP65 |
| Grad de protecție IK | IK08 |
Dimensiuni
| Lățime | 319 mm |
|---|---|
| Înălțime | 259 mm |
| Adâncime | 144 mm |
| Secțiunea transversală maximă a conexiunii |
 |

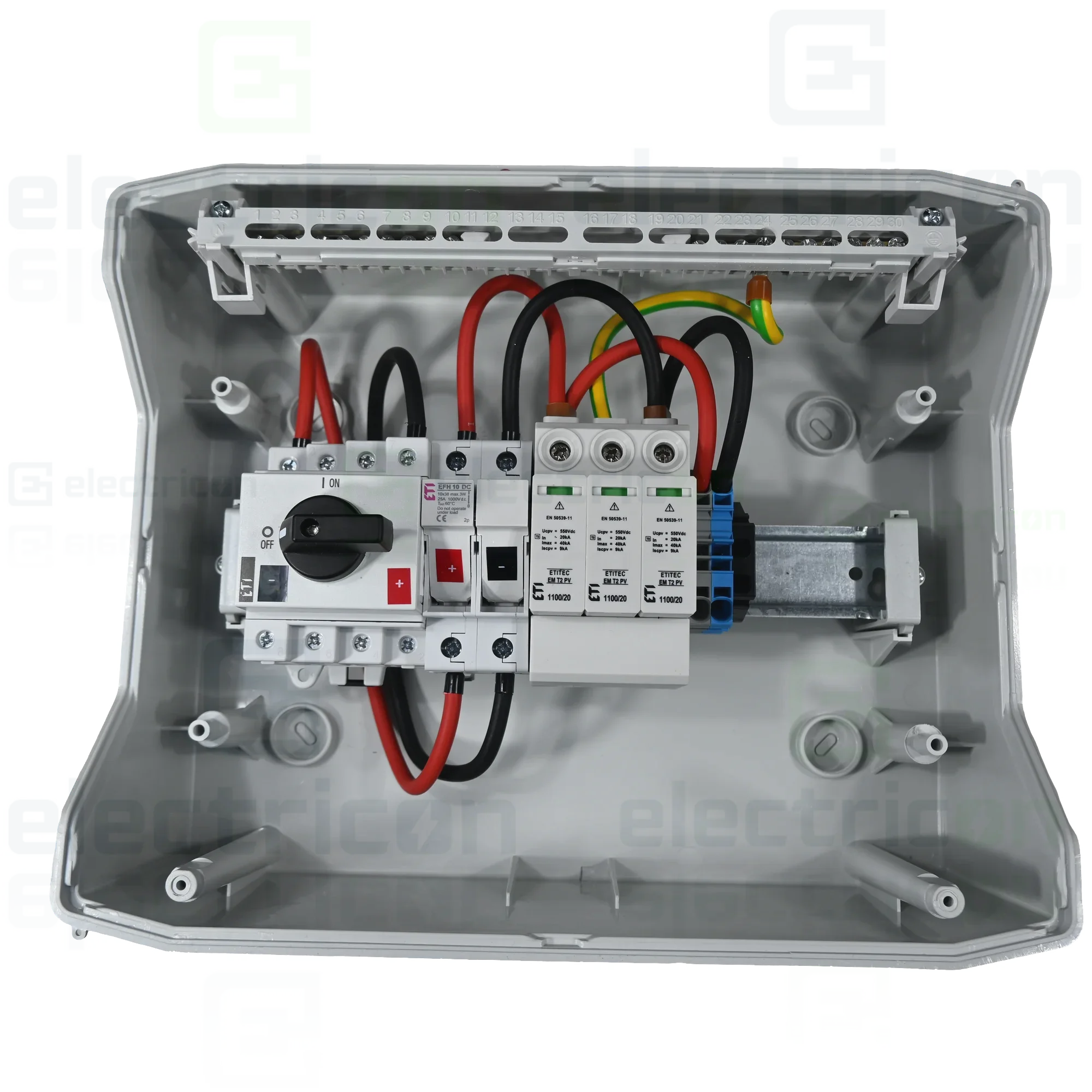

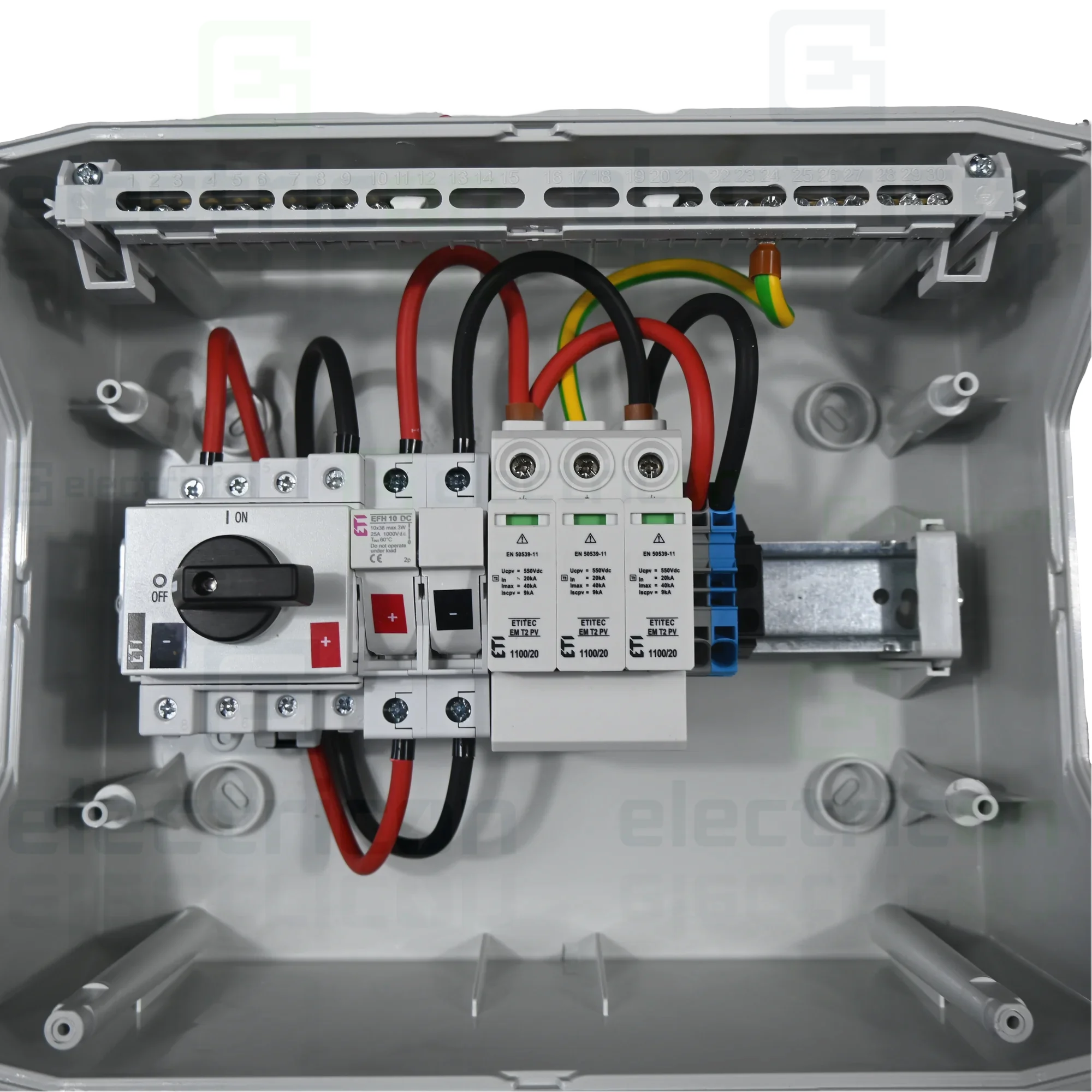

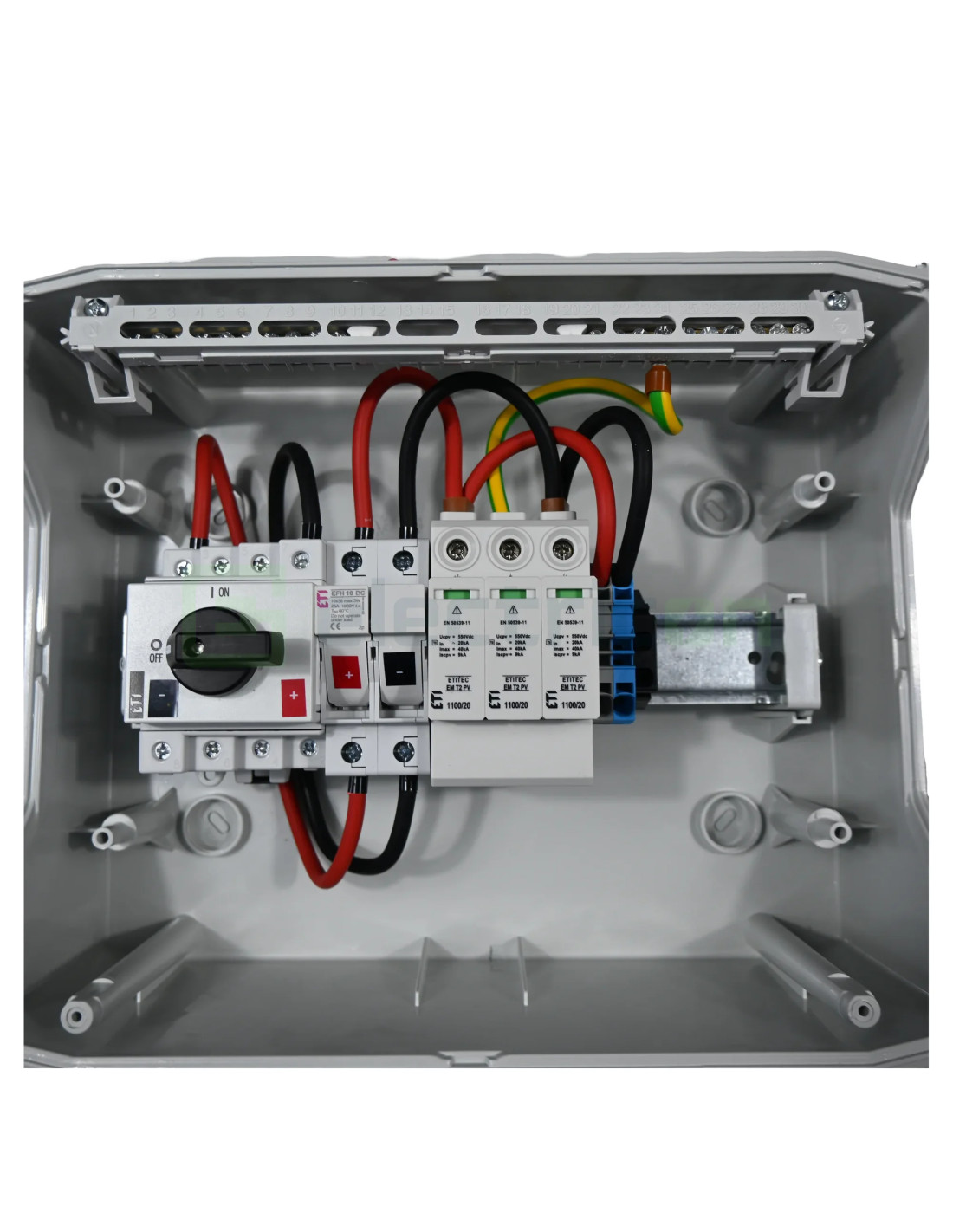

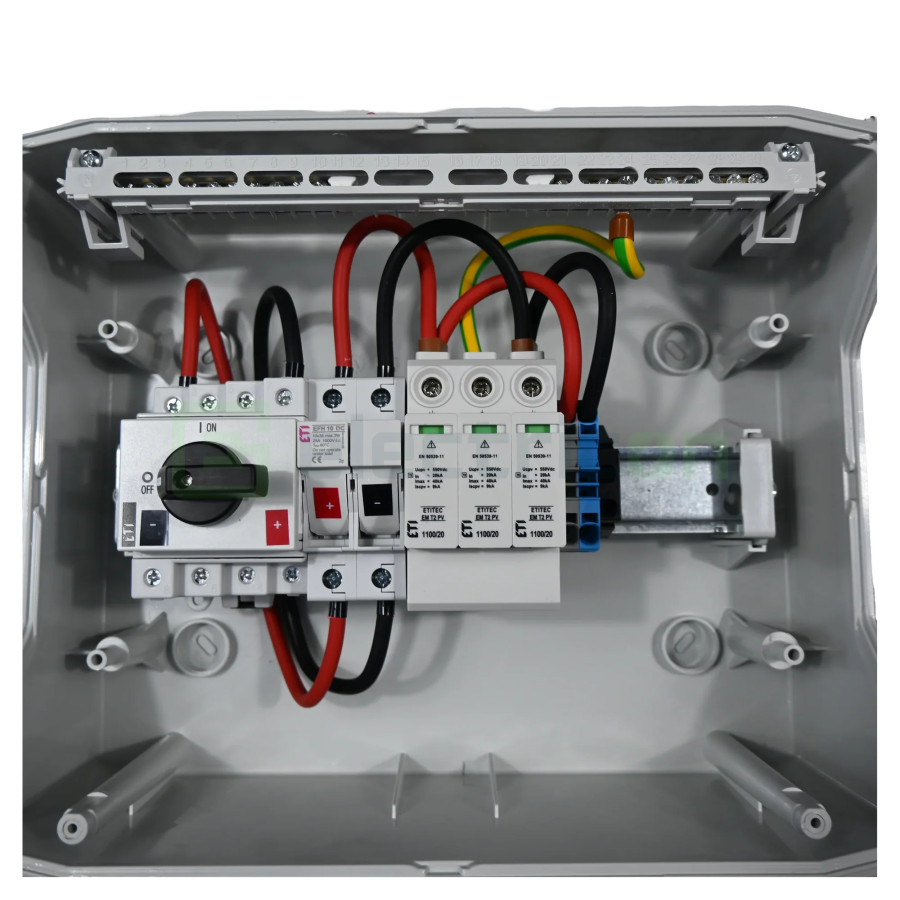

1x Soclu fuzibil LS25 SMA 04 cu 2 siguranțe fuzibile 10x38 16A 1x clemă Wago 2006-1204, albastră 1x clemă Wago, 2006-1201 1x Comutator LS 25 SMA04 1x Tablou 12 module ETI ECH 1x Decărcător EM T2 PV 1100/20 Y cu 3 descărcătoare 002440627
4 x presetupe din care 2xPG 9 si 2x PG 11 |
Link-uri utile
Declarație conformitateInformații tehnice (producător)
Verificare bucăți și scheme conexiuni
Material: plastic

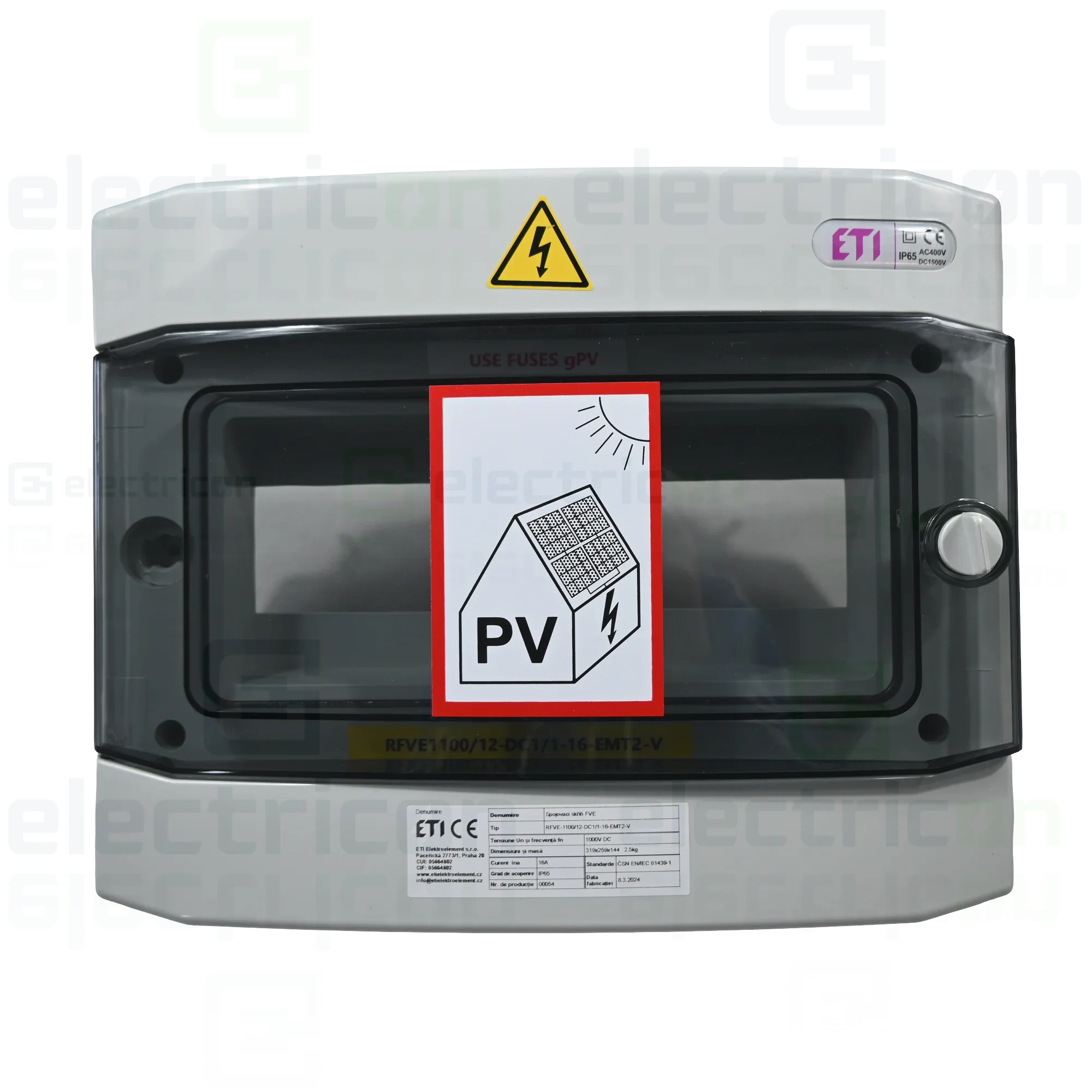

Tip ușă: usa transparenta
Grad de Protecție IP: IP65
