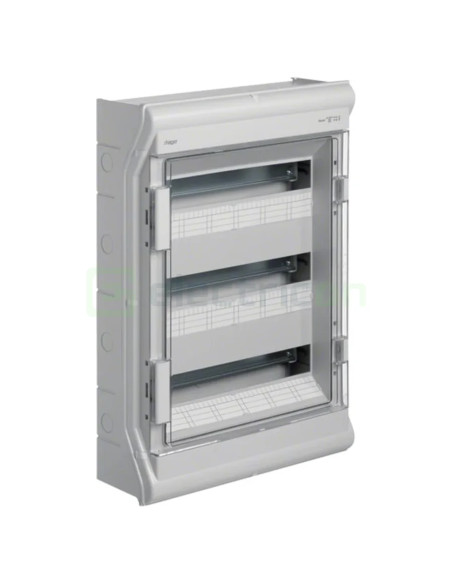

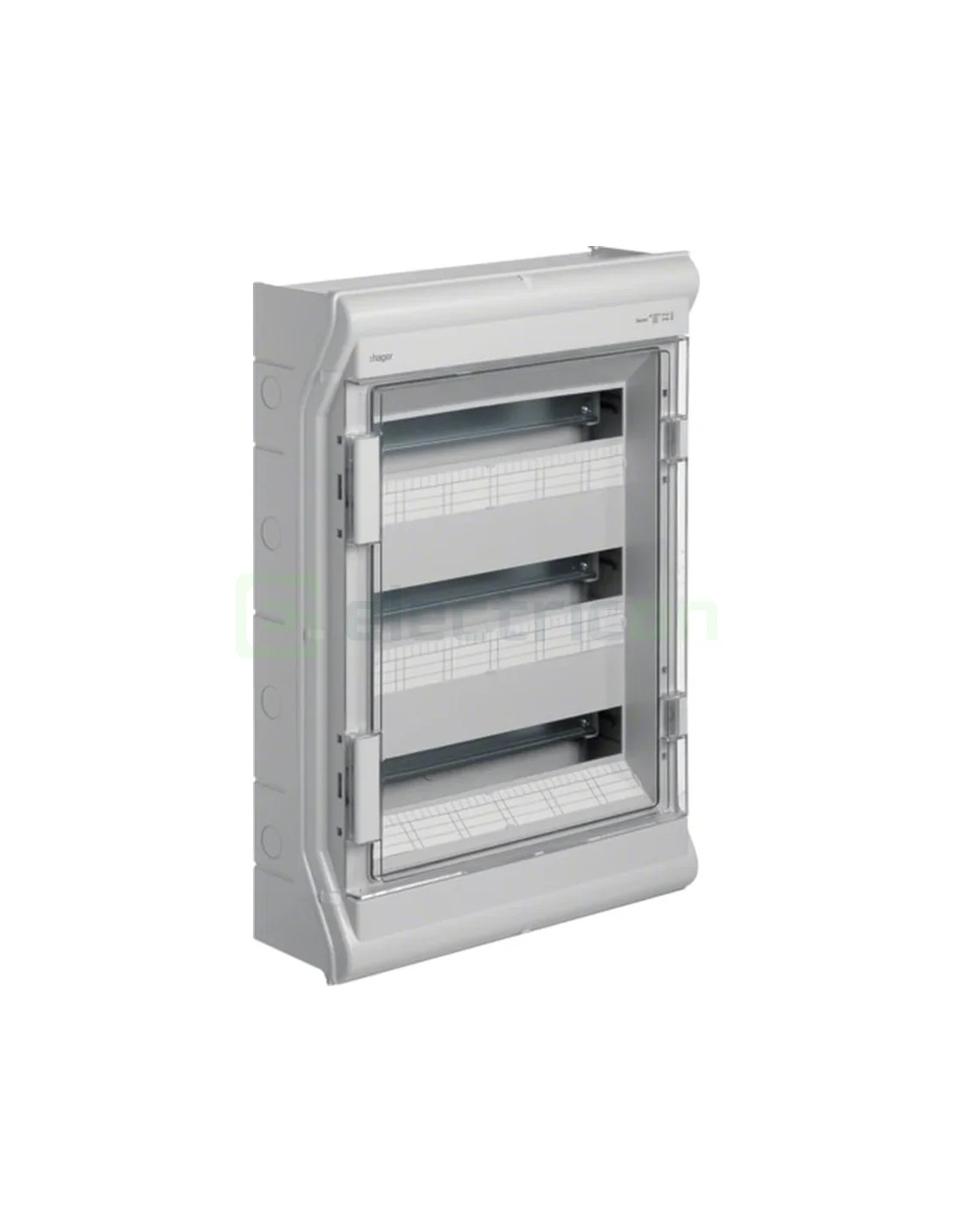

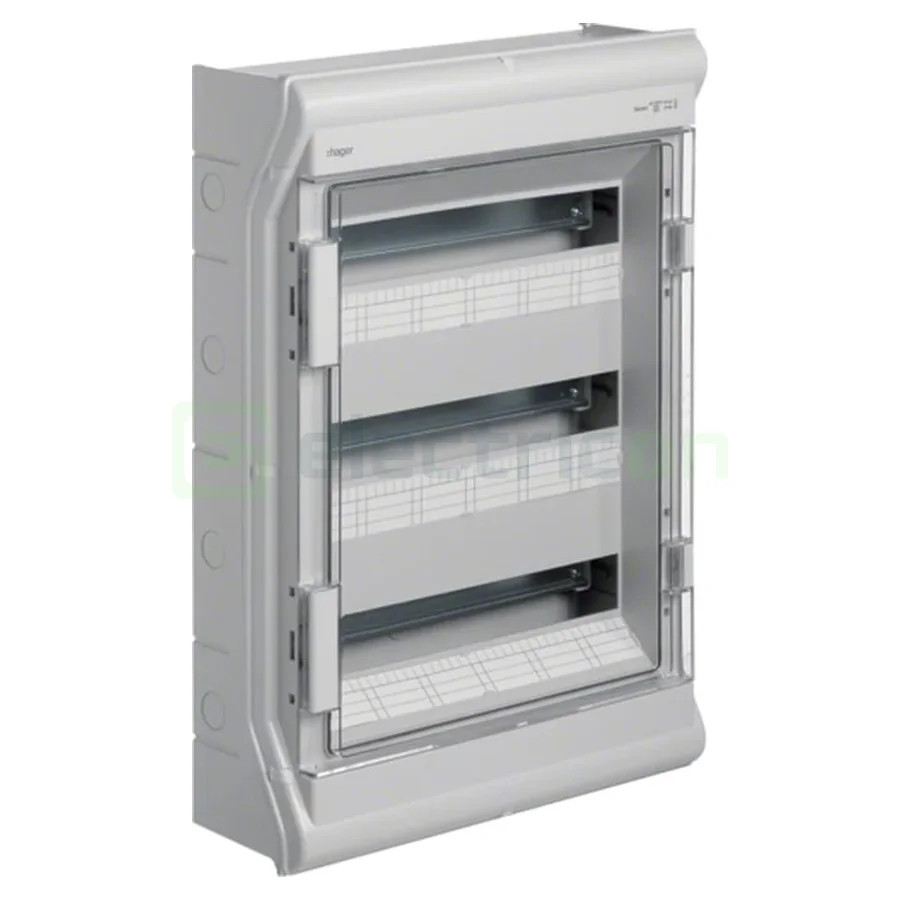

Tablou Vector 54M IP65 aparent 1000V DC/AC, Hager, VE318L
![VE318L [1]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-vector-54m-ip54-aparent-1000v-dc-ac-203499.webp "VE318L [1]")
![VE318L [2]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-vector-54m-ip54-aparent-1000v-dc-ac-193798.webp "VE318L [2]")
![VE318L [3]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-vector-54m-ip54-aparent-1000v-dc-ac-hager-ve318l-834495.webp "VE318L [3]")
![VE318L [4]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/tablou-vector-54m-ip54-aparent-1000v-dc-ac-hager-ve318l-366634.webp "VE318L [4]")
![VE318L [0]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-vector-54m-ip54-aparent-1000v-dc-ac-203499.webp "VE318L [0]")
![VE318L [1]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-vector-54m-ip54-aparent-1000v-dc-ac-193798.webp "VE318L [1]")
![VE318L [2]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-vector-54m-ip54-aparent-1000v-dc-ac-hager-ve318l-834495.webp "VE318L [2]")
![VE318L [3]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/tablou-vector-54m-ip54-aparent-1000v-dc-ac-hager-ve318l-366634.webp "VE318L [3]")
Economisesti: 28,46 RON
Include:

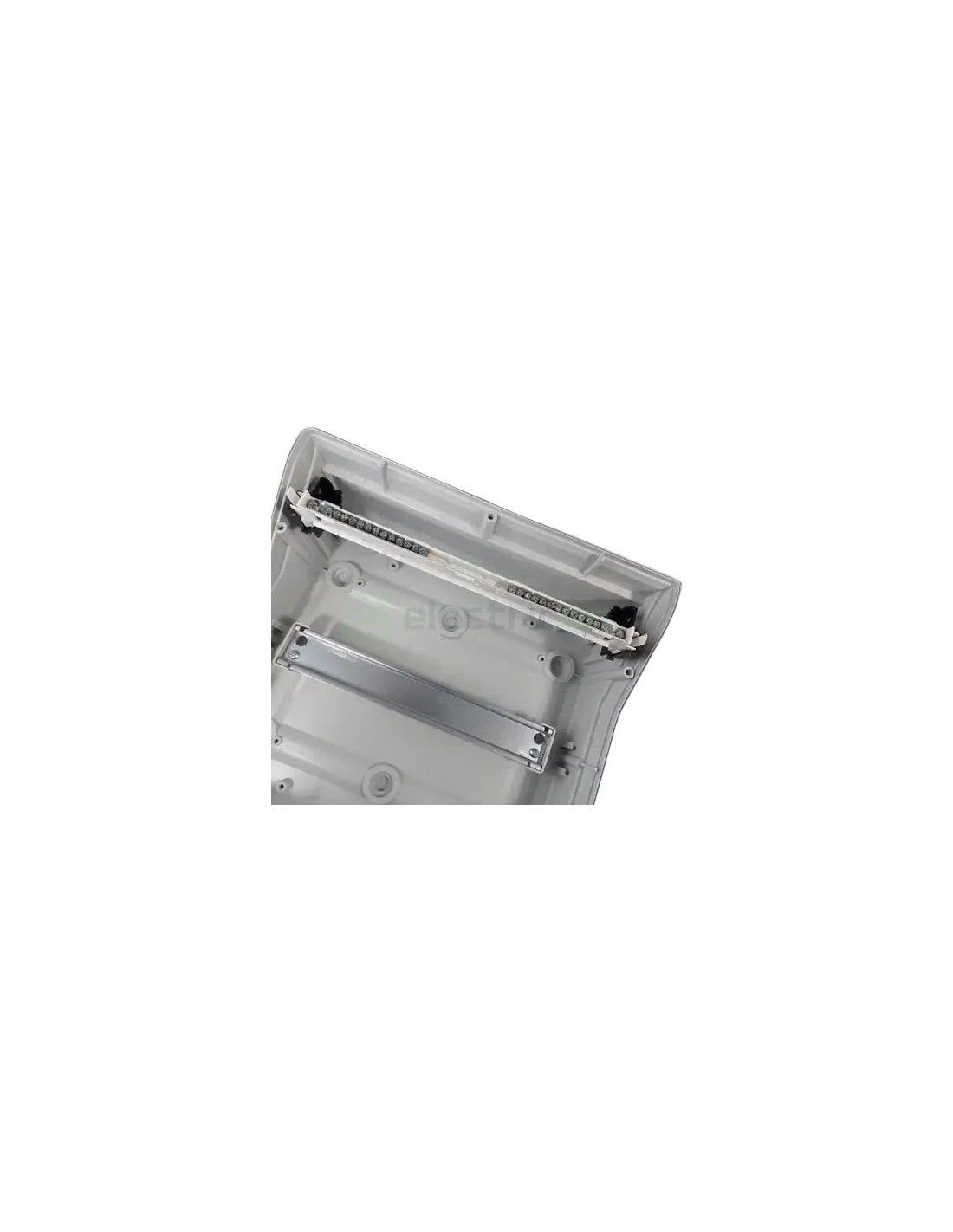

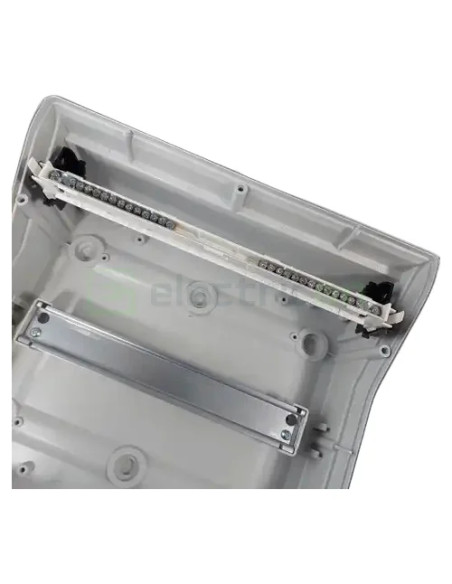

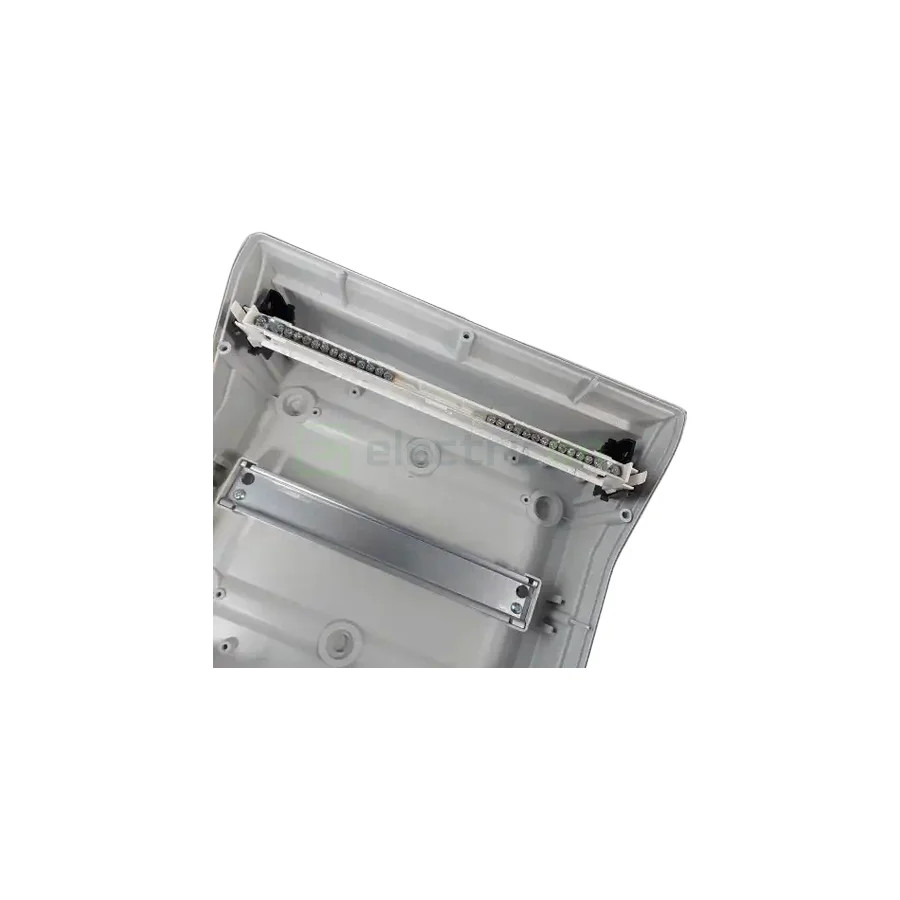

1 x Suport cu 2 barete cu șuruburi (PE+N)
Data estimata de livrare: Marti, 09.12.2025
- Descriere
- Caracteristici
- Review-uri (0)
Hager VE318L
| Cod | VE318L |
|---|---|
| Greutate | 3.5 kg |
| Nivel | Tablouri Hager Vector |
| Curent nominal (A) | 63 |
| Tensiunea nominală (V) | 400 |
| Tip montaj | aparent |
| Grad de protecție IP | IP 54 (cu presutupe) IP 65 (fără presetupe) |
| Grad de protecție IK | IK 08 |
| No. of modules (total/per row) | 54 module, 18 per rând |
| Număr de rânduri | 3 |
| Ușa (material, color) | Plastic, gri deschis |
| Cutie (material, color) | Metalic, gri deschis |
| Number of PE/N terminals (connections) | 15 |
| Glow wire test (°C) | 750 |
| Tip montaj | Zidărie |

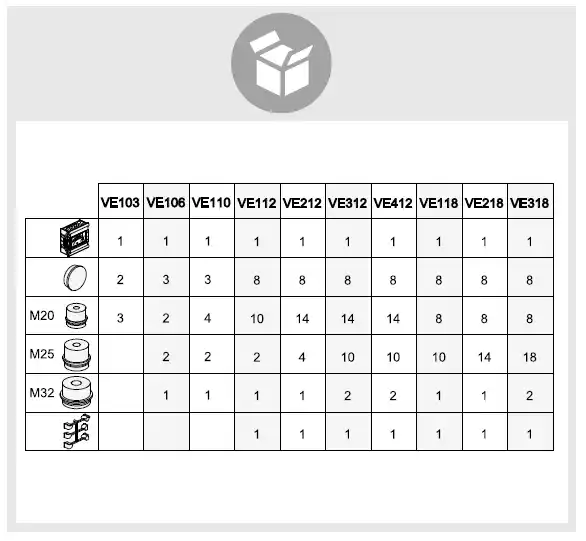

| Accesorii incluse: | 8 x dopuri cu filet 8 x presetupe M20 18 x presetupe M25 2 x presetupă M32 |

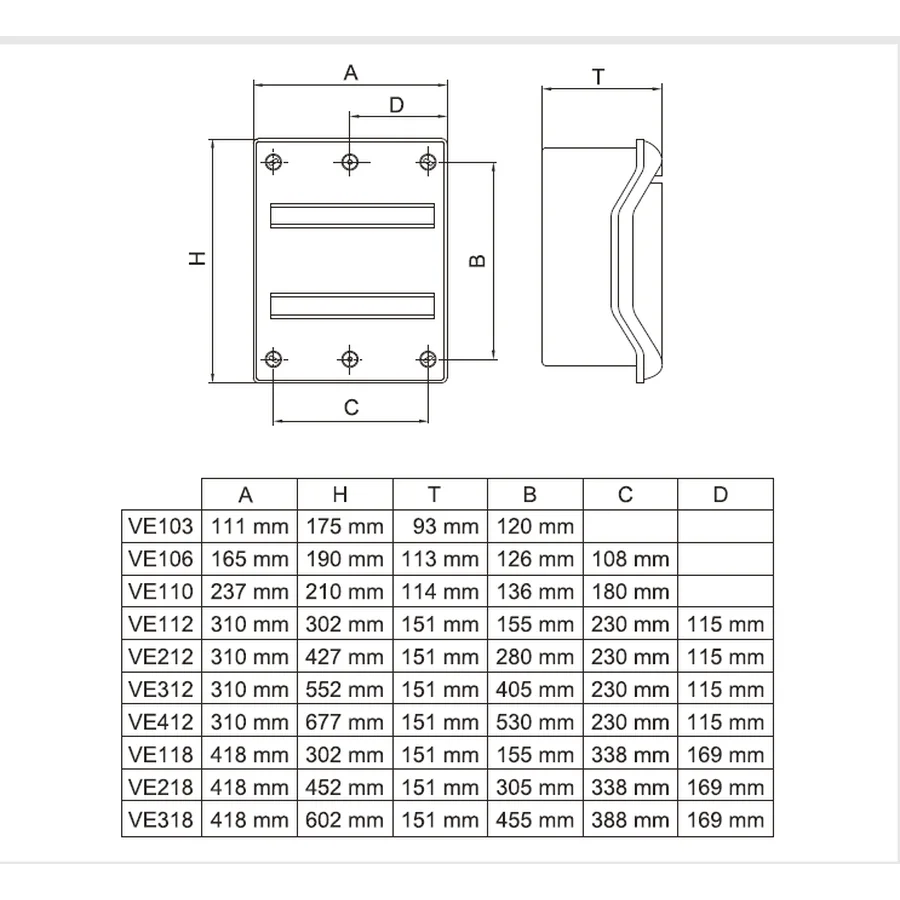

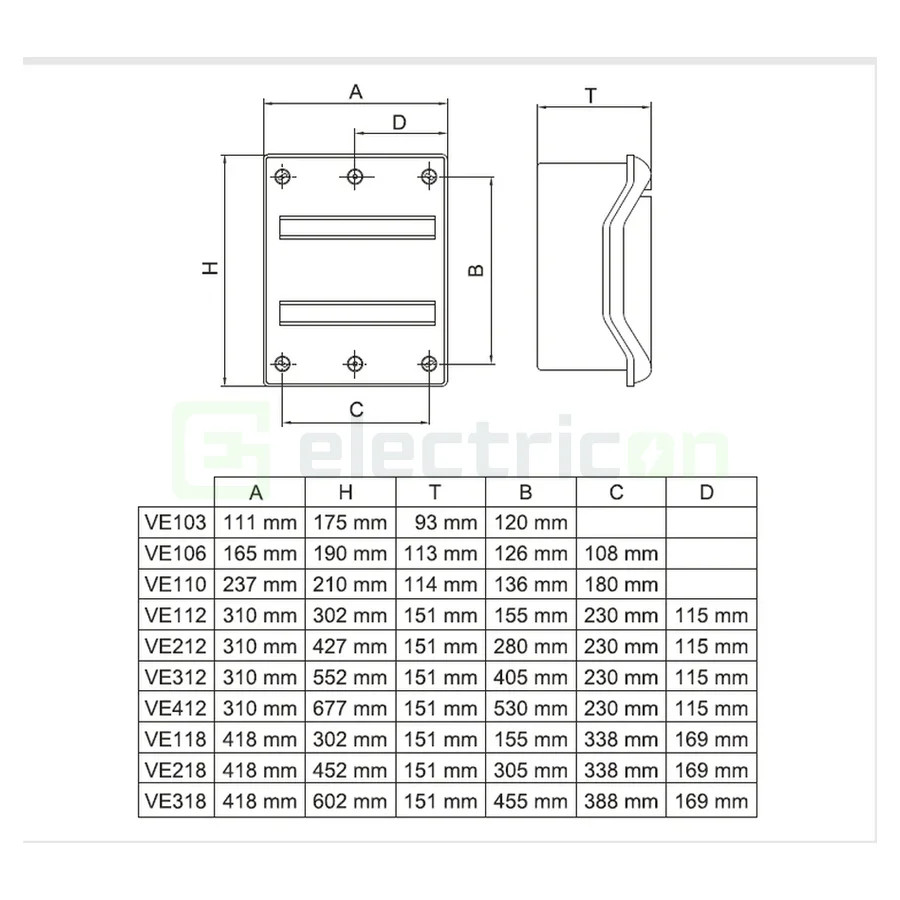

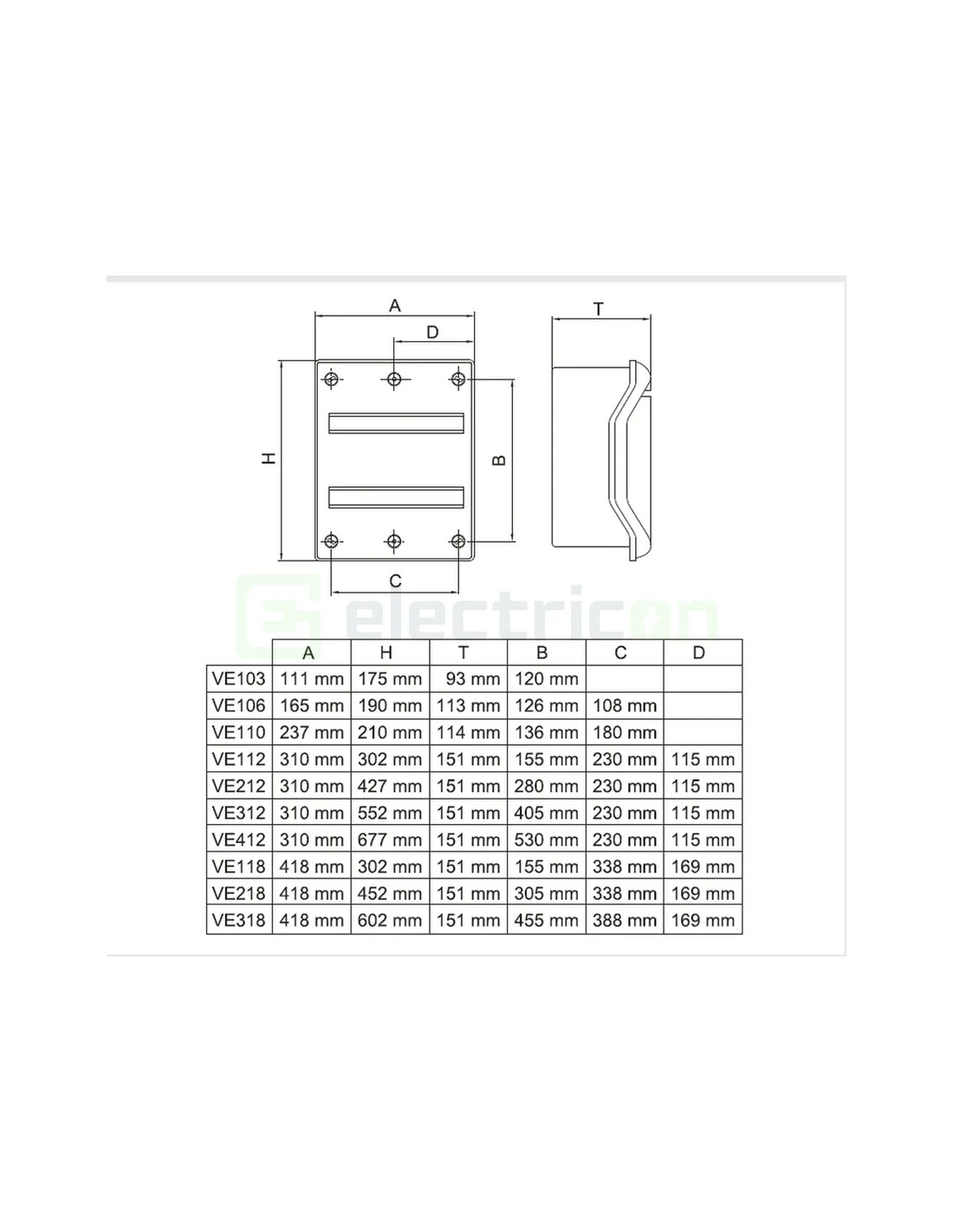

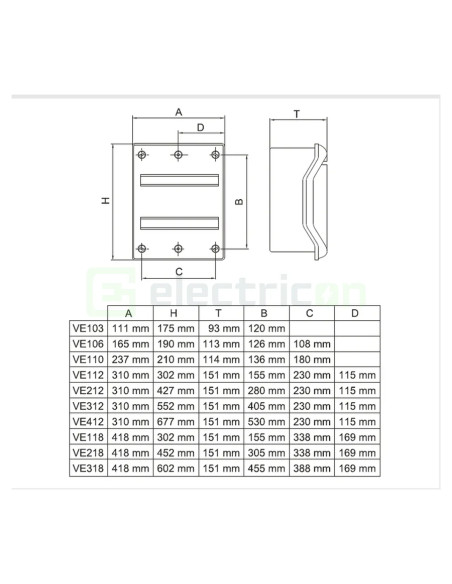

Dimensiuni Gabarit Tablou
| Dimensiune | Valoare |
|---|---|
| Înălțime | 602 mm |
| Lățime | 418 mm |
| Adâncime | 151 mm |
Link-uri utile
Numar total module: 54
Tip montaj: aparent
Utilizare: fotovoltaice, exterior
Material: plastic
Tip ușă: usa transparenta
Grad de Protecție IP: IP65
Gamă: Hager Vector
